Trajectory SP803

Force field: martini_v2.2
Simulation length (ns): 5000
Electric field (kJ mol-1 nm-1 e-1): 0
Temperature (K): 300 (v-rescale)
Pressure (bar): 1 (Parrinello-rahman semiisotropic)
Number of particles: 17380
Time step (fs) : 25
Software: GROMACS 2021.5
Supercomputer: Finisterrae III CESGA
Peptides: P191 AP03825
Lipids: POPE, POPG
Heteromolecules:
Ions: NA
Water model: W

  Download all Compresed Files.


Sequence :
KWLKKLLKWLKKL
Total charge (e): +6
Number of residues: 13
By amino acid:
  Basic: 6
  Acidic: 0
  Hydrophobic: 7
  Polar: 0

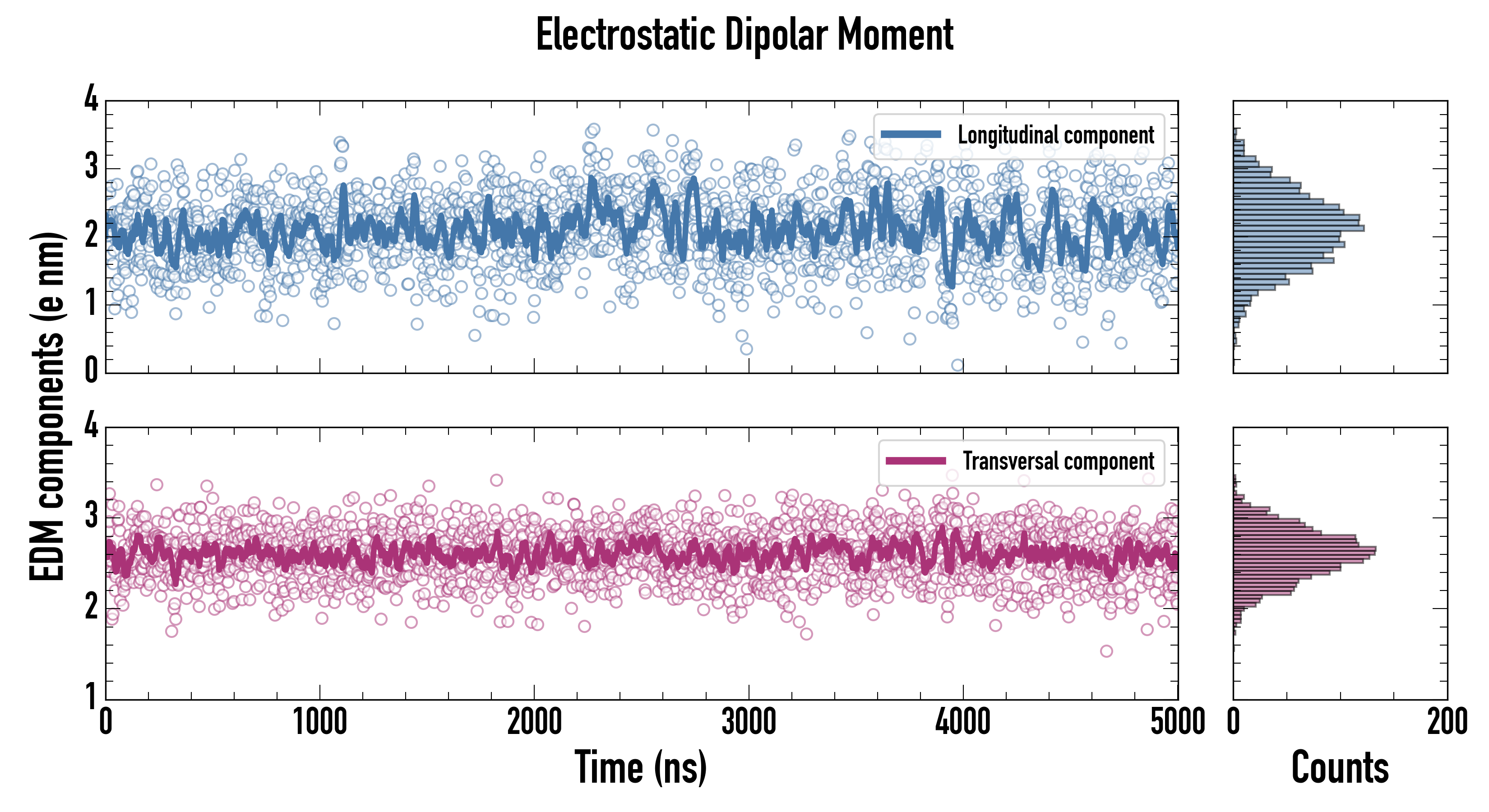

Electrostatic Dipolar Moment (e nm): 4.35
Longitudinal (e nm): 3.72
Transversal (e nm): 2.25

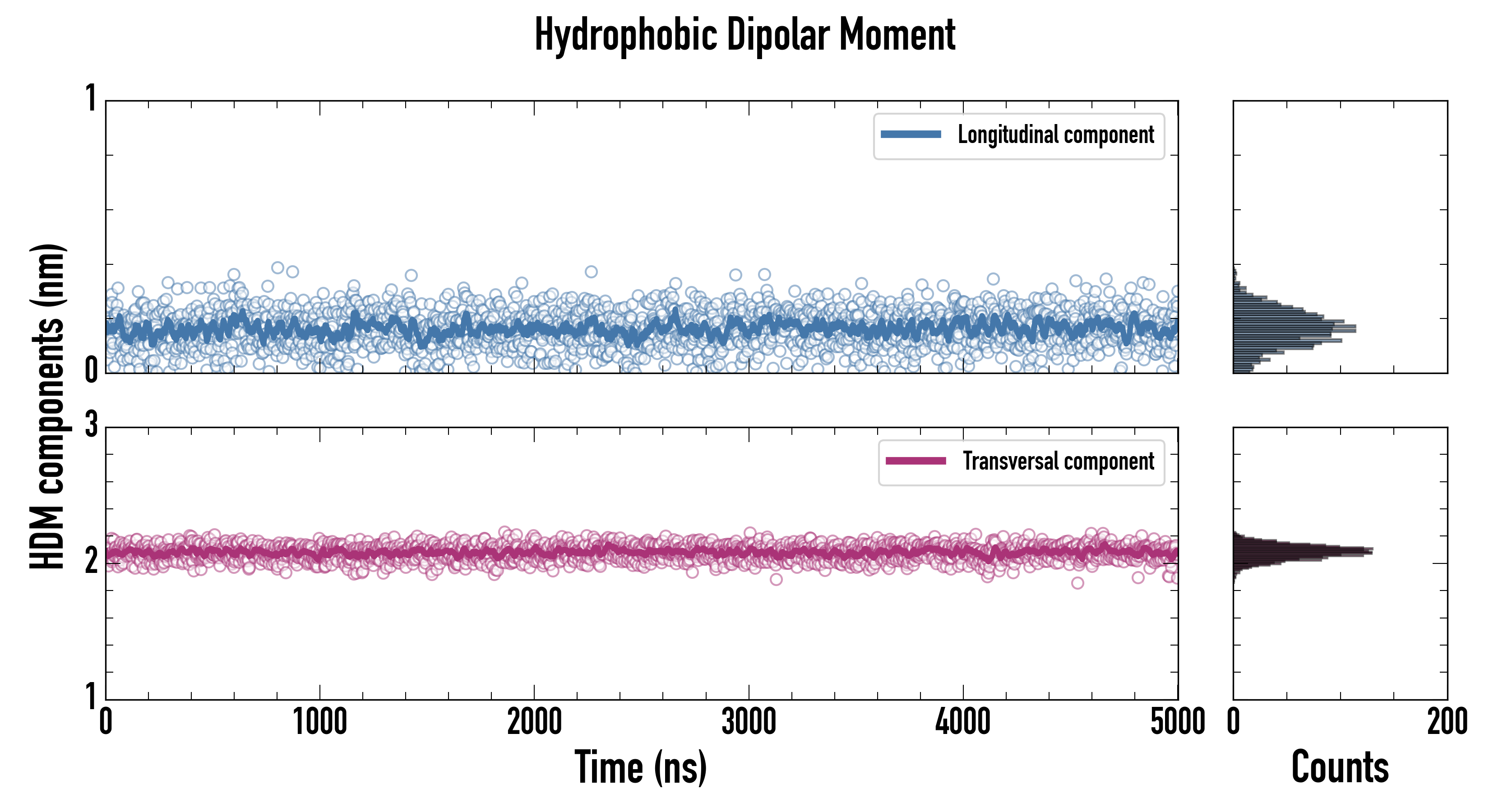

Hydrophobic Dipolar Moment (nm): 2.07
Longitudinal (nm): 0.44
Transversal (nm): 2.02
Secondary structure: Helix
Activity:

Download Files
  ITP file.
  JSON file.
  PDB file.

Click on any component to highlight it from the plot.
Upper leaflet
Lower leaflet

Lipids


Membrane model for: POPG:POPE (1:3) (Gram-negative bacteria)

POPE
1-Palmitoyl-2-oleoyl-sn-glycero-3-phosphoethanolamine
Total charge (e): 0

  See POPE lipid
  Download ITP File.
  Download PDB File.
POPG
1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoglycerol
Total charge (e): -1

  See POPG lipid
  Download ITP File.
  Download PDB File.
Last snapshot
  Download PDB File.

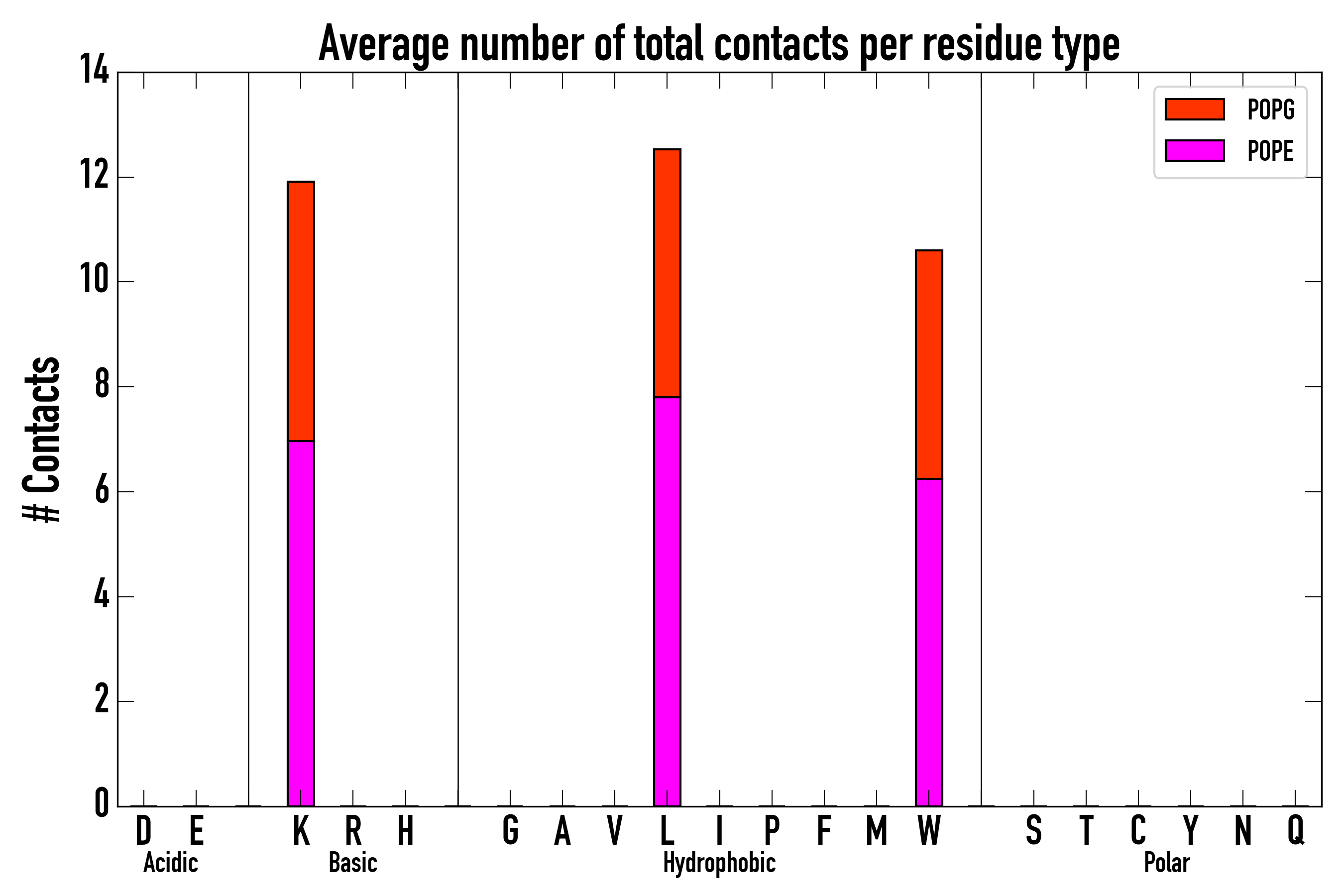

Total contacts per residue

  Download PDB File.

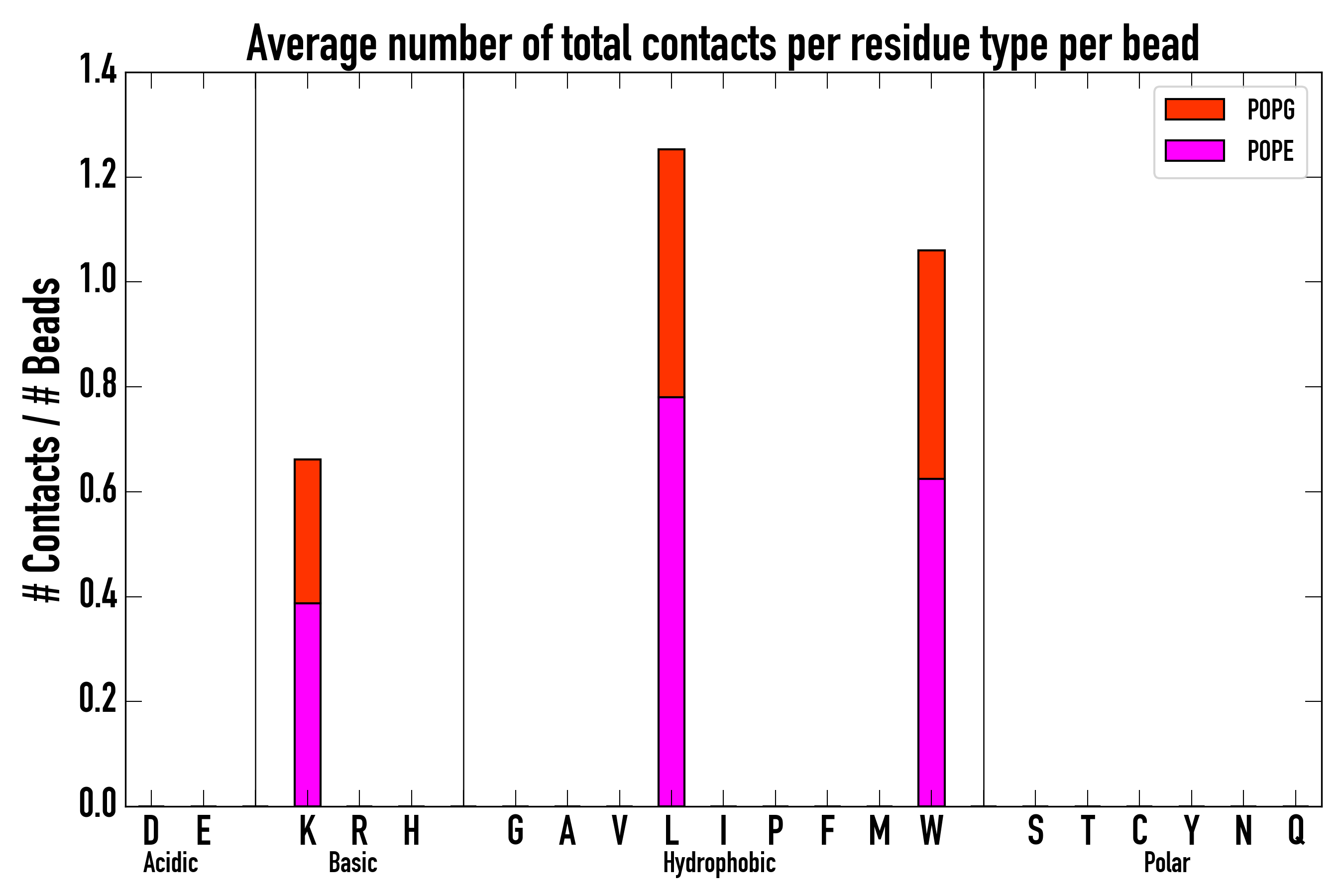

Contacts per residue
(normalized by number of beads in the residue)
  Download PDB File.

Molecular Dynamics based descriptors
Average and standard deviation, calculated using the autocorrelation function (for time series) or the width of the distribution, for the last microsecond of the trajectory

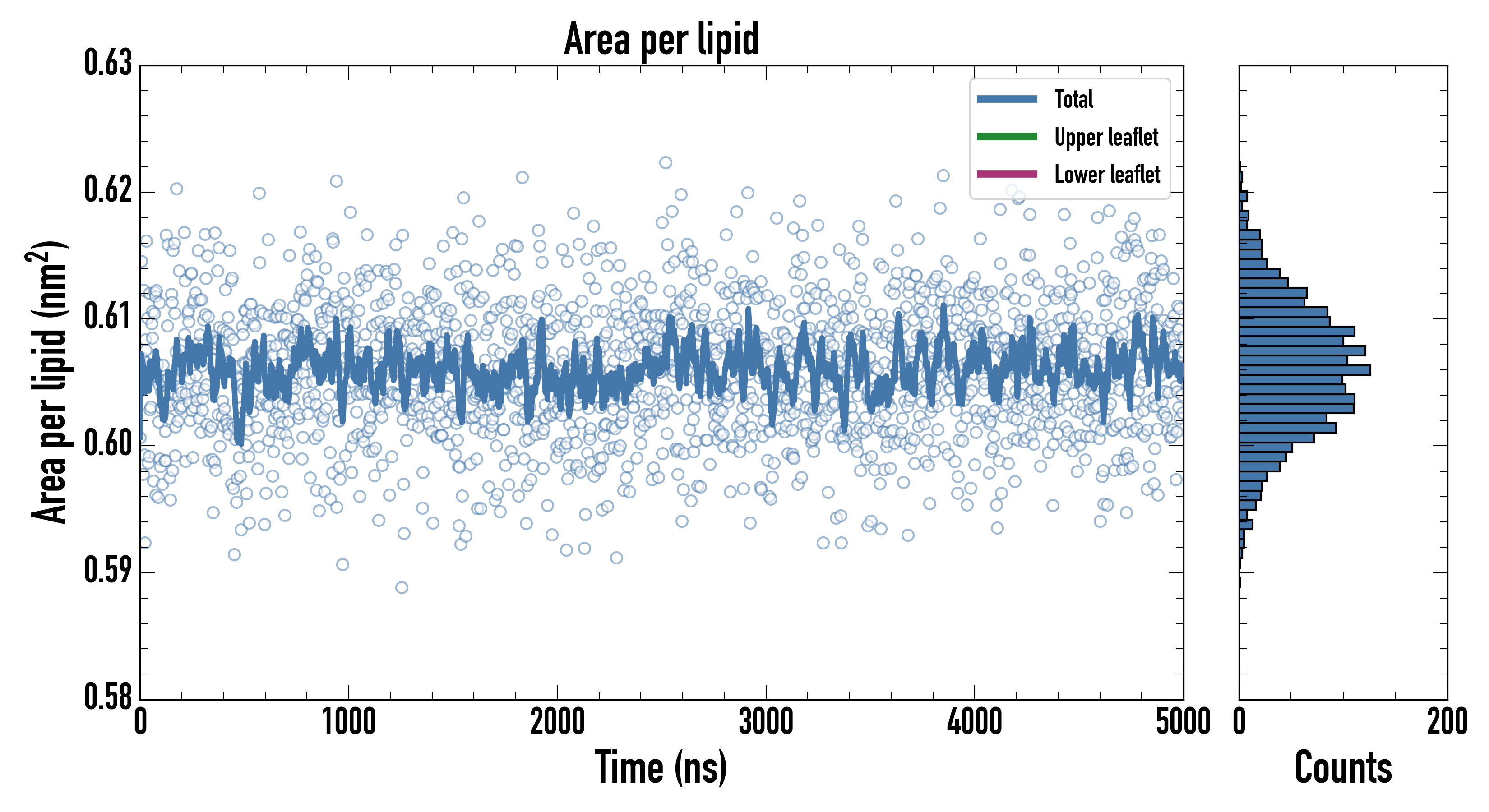

Area per lipid
Membrane (nm2): 0.606393000 ± 0.000827034
Upper leaflet (nm2): 0.606393000 ± 0.000827034
Lower leaflet (nm2): 0.606393000 ± 0.000827034
Average Z coordinate
Peptide (nm): 8.408010 ± 0.035249
First Residue (nm): 8.4960000 ± 0.0410614
Last Residue (nm): 8.3908100 ± 0.0426908
Membrane (nm): 6.51559000 ± 0.00893326
Upper leaflet Head Group (nm): 8.5440700 ± 0.0107701
Lower leaflet Head Group (nm): 4.48916000 ± 0.00724249
Bilayer Thickness (nm): 4.0549000 ± 0.0129788
Peptide insertion (nm): -0.1360580 ± 0.0368577
Contacts
Peptide - Water: 23.27000 ± 0.61297
Peptide - Head groups: 11.835000 ± 0.270821
Peptide - Tail groups: 9.907500 ± 0.249132

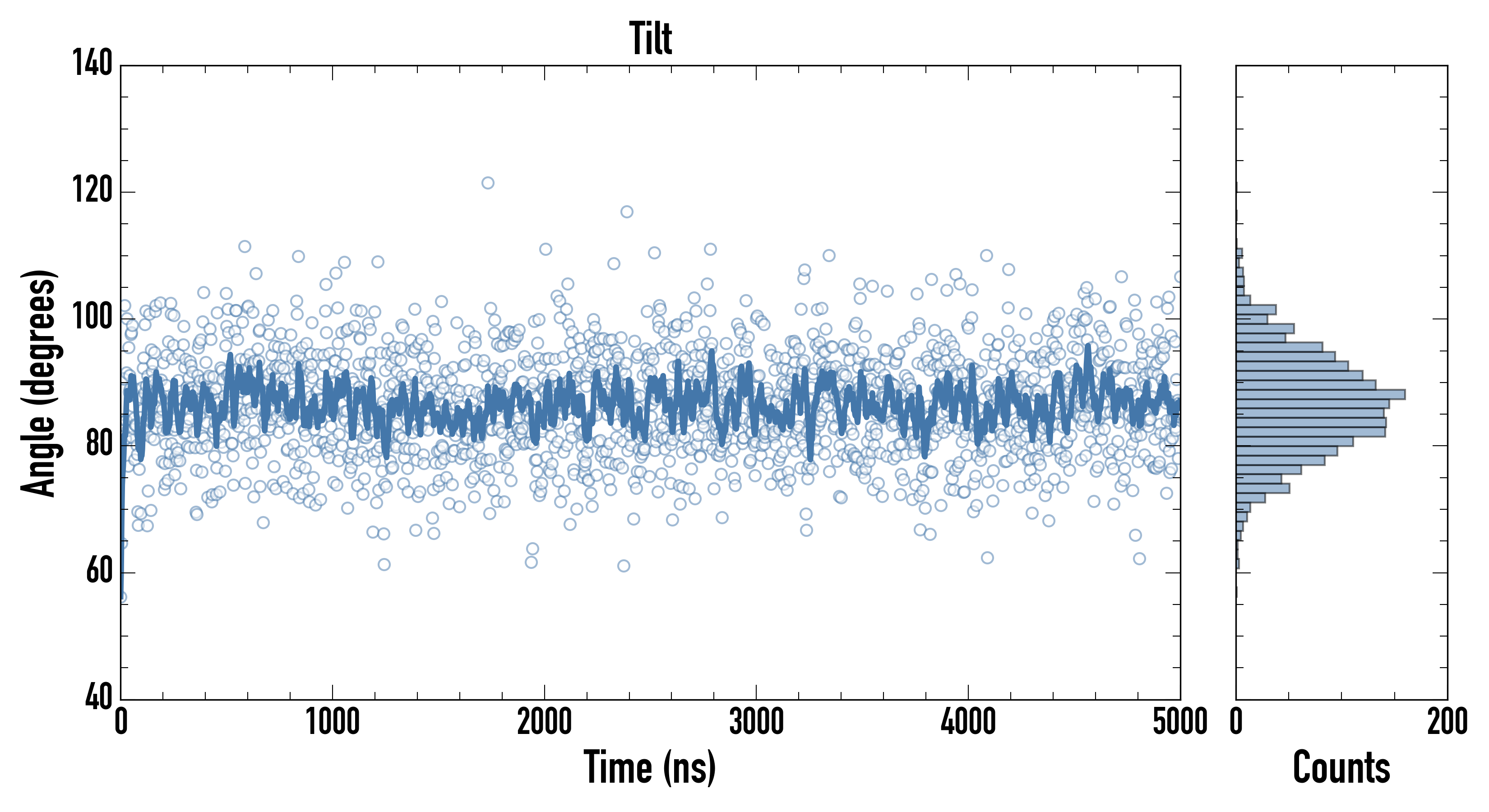

Tilt (°): 86.87770 ± 1.37967
PepDF:
5(ns):  CVS
Displacement (nm): 0.6389130 ± 0.0266373
Precession(°): 1.92357 ± 2.08446
50(ns)  CVS
Displacement (nm): 1.8526300 ± 0.0875323
Precession(°): 17.57270 ± 7.54064
100(ns)  CVS
Displacement(nm): 2.70447 ± 0.14391
Precession(°): 28.37070 ± 8.50746
200(ns)  CVS
Displacement(nm): 3.638020 ± 0.226342
Precession(°): 36.9489 ± 10.3470

  Download JSON File.

Peptide Analyses

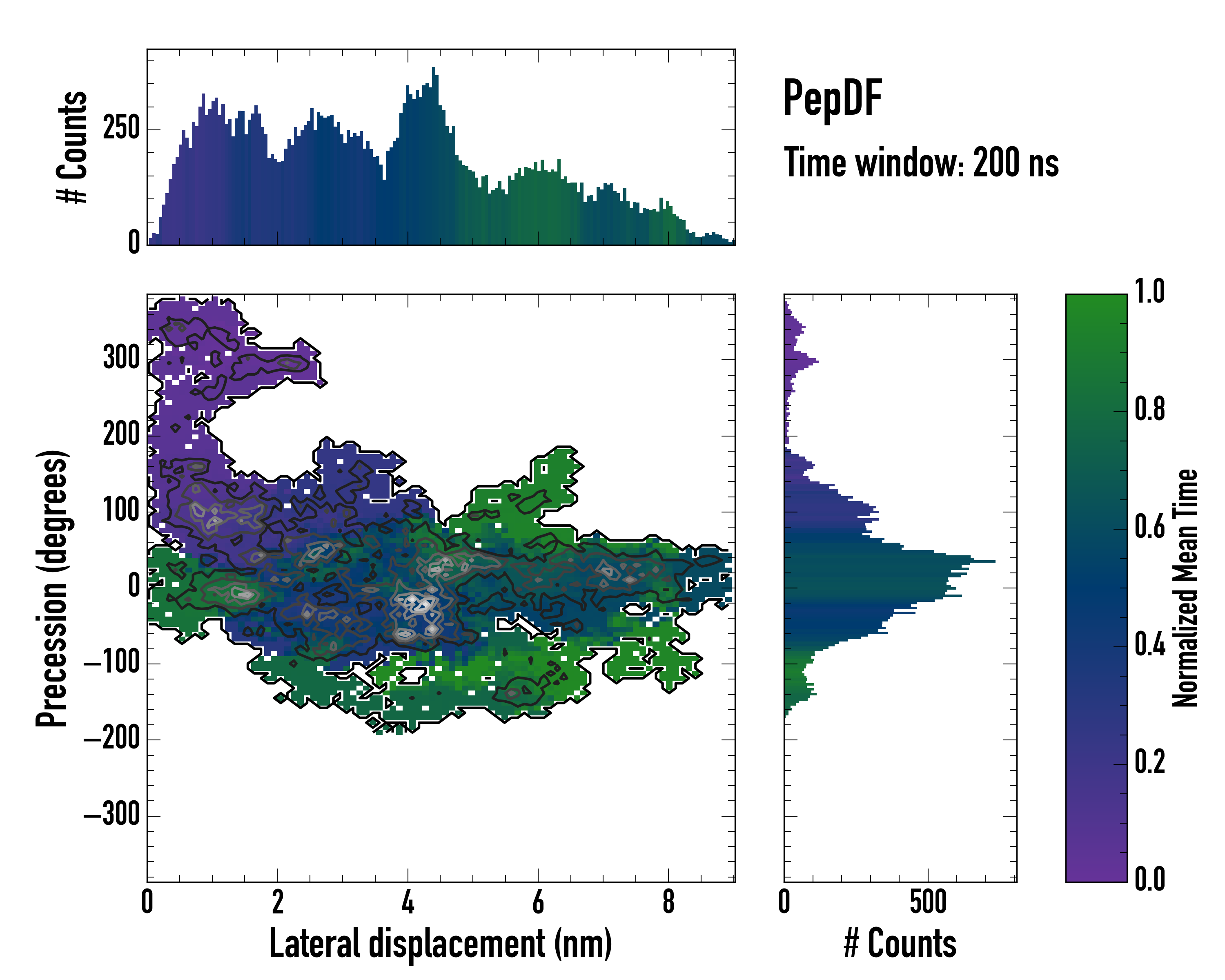

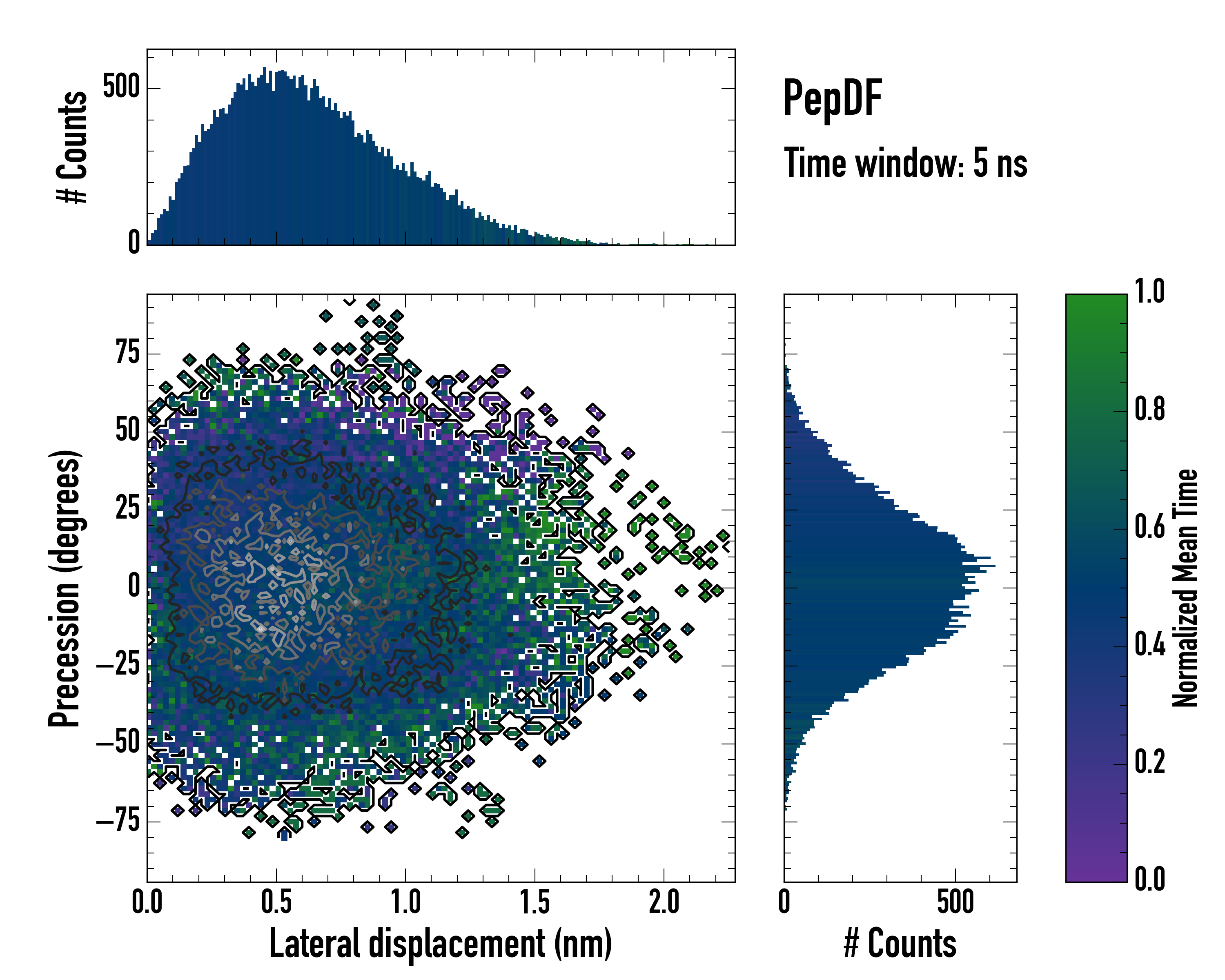

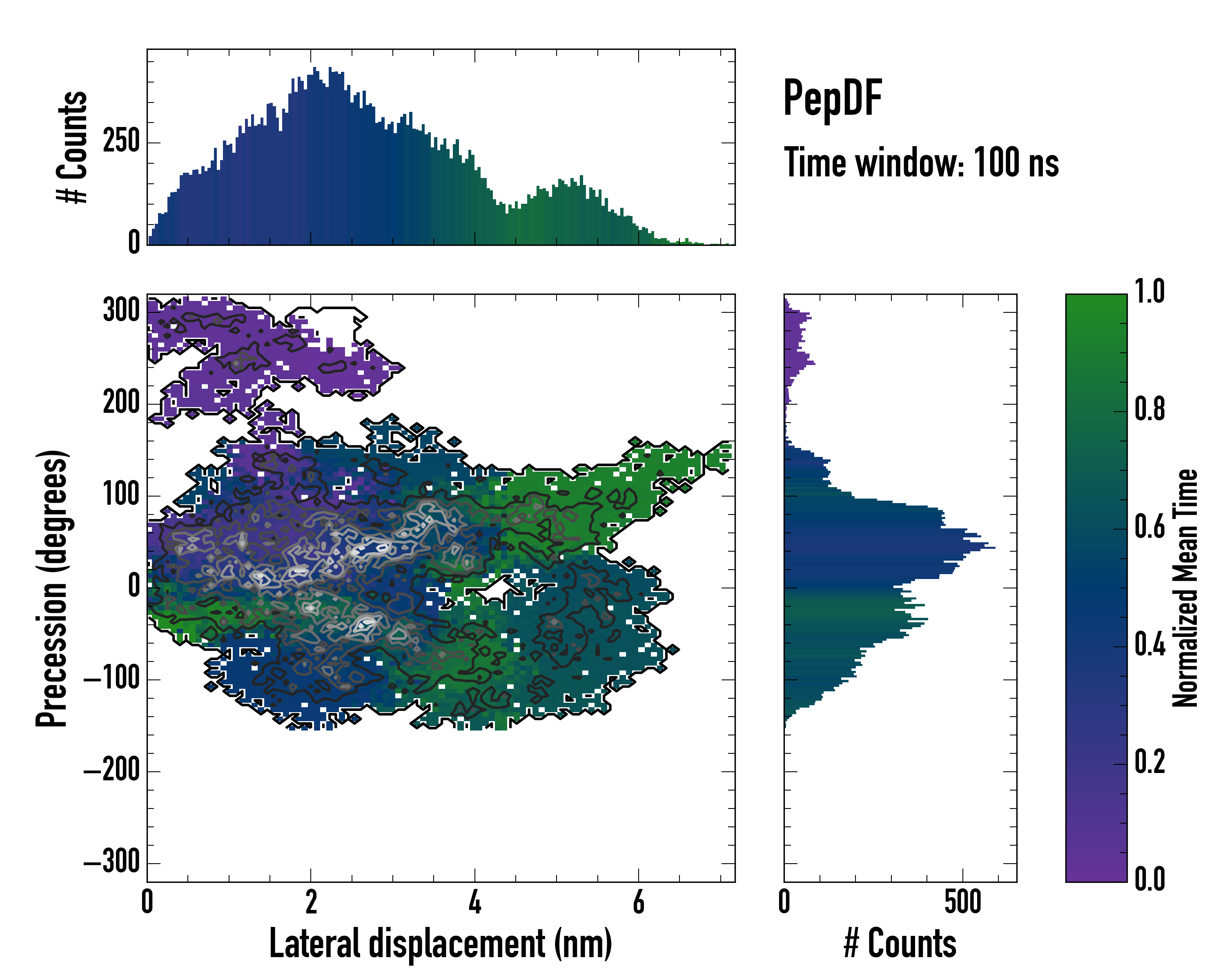

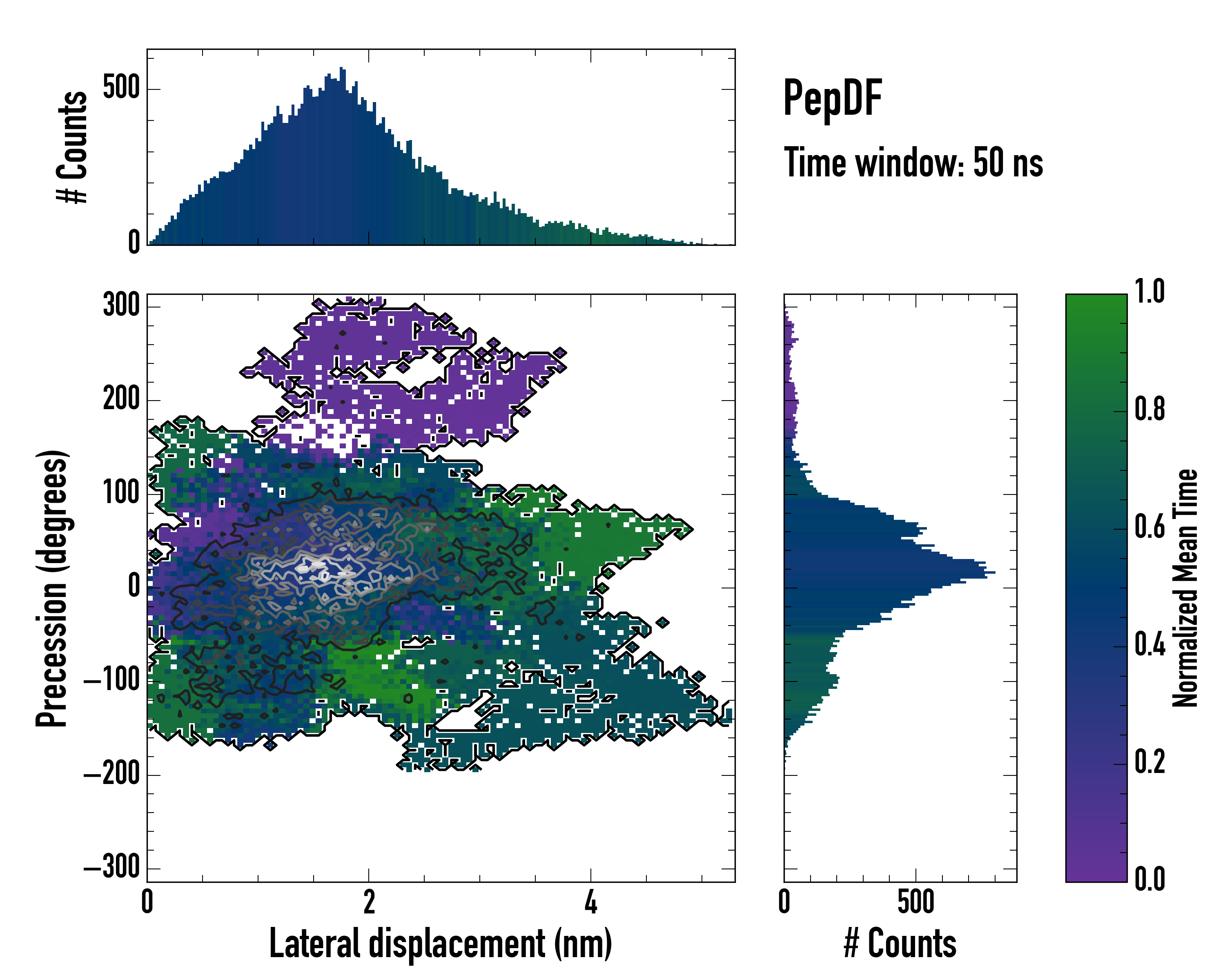

Peptide Displacement Fingerprint (PepDF)
Lateral displacement vs Rotational Displacement along the trajectory, for different time windows .

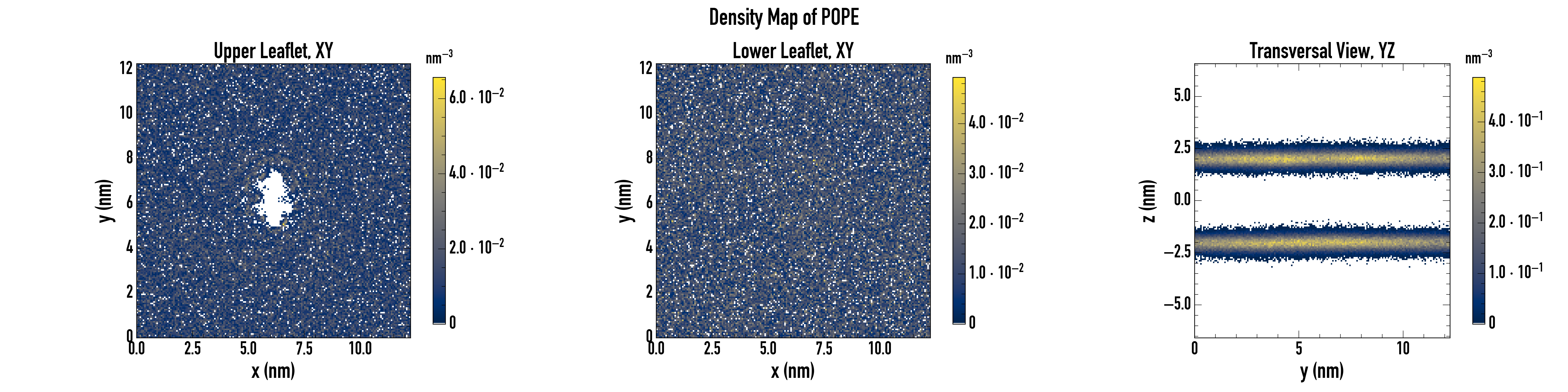

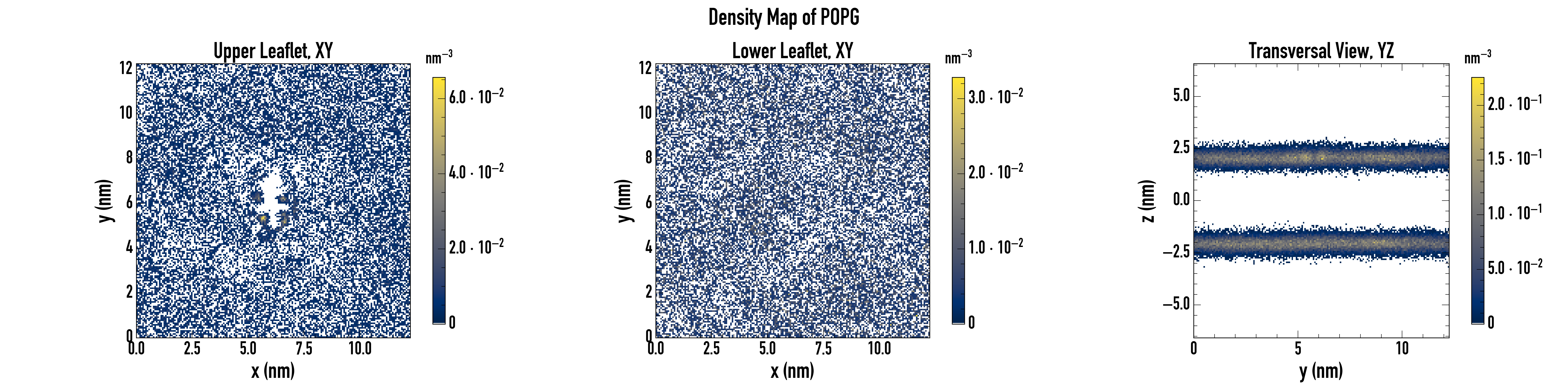

Density maps:
2D-density maps of lipids around the peptide along XY and YZ axis, calculated for each lipid type along the last microsecond.

Lipid-Peptide Analyses:

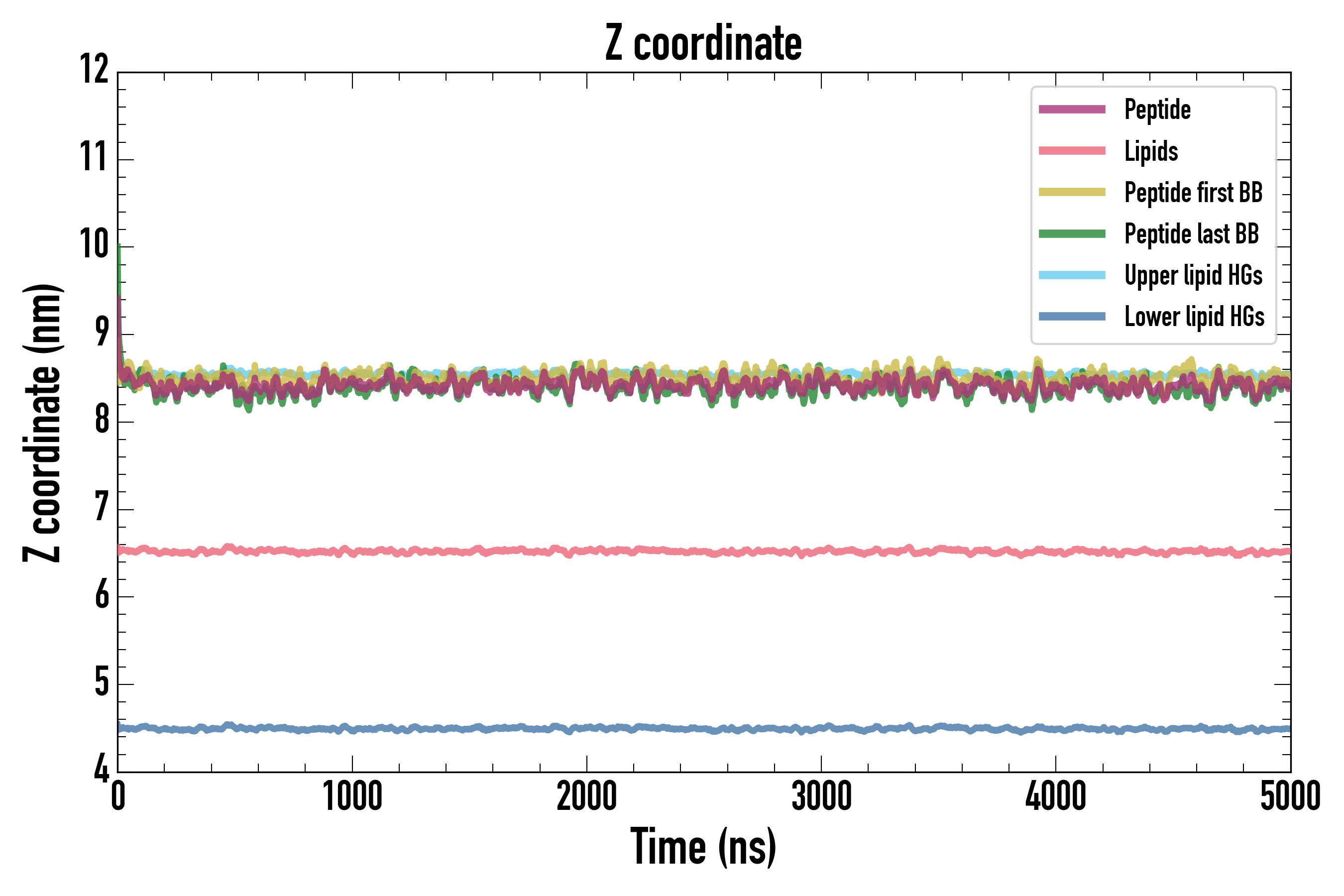

z-Position
Z-coordinate, averaged for differetn parts of the the system: peptide, membrane, first and last backbone (BB) residues and upper of lower leaflet lipids’ headgroups (HGs).
Minimum distance
Minimum distance (nm) between the peptide backbone and the lipids (headgroups and tailgroups).

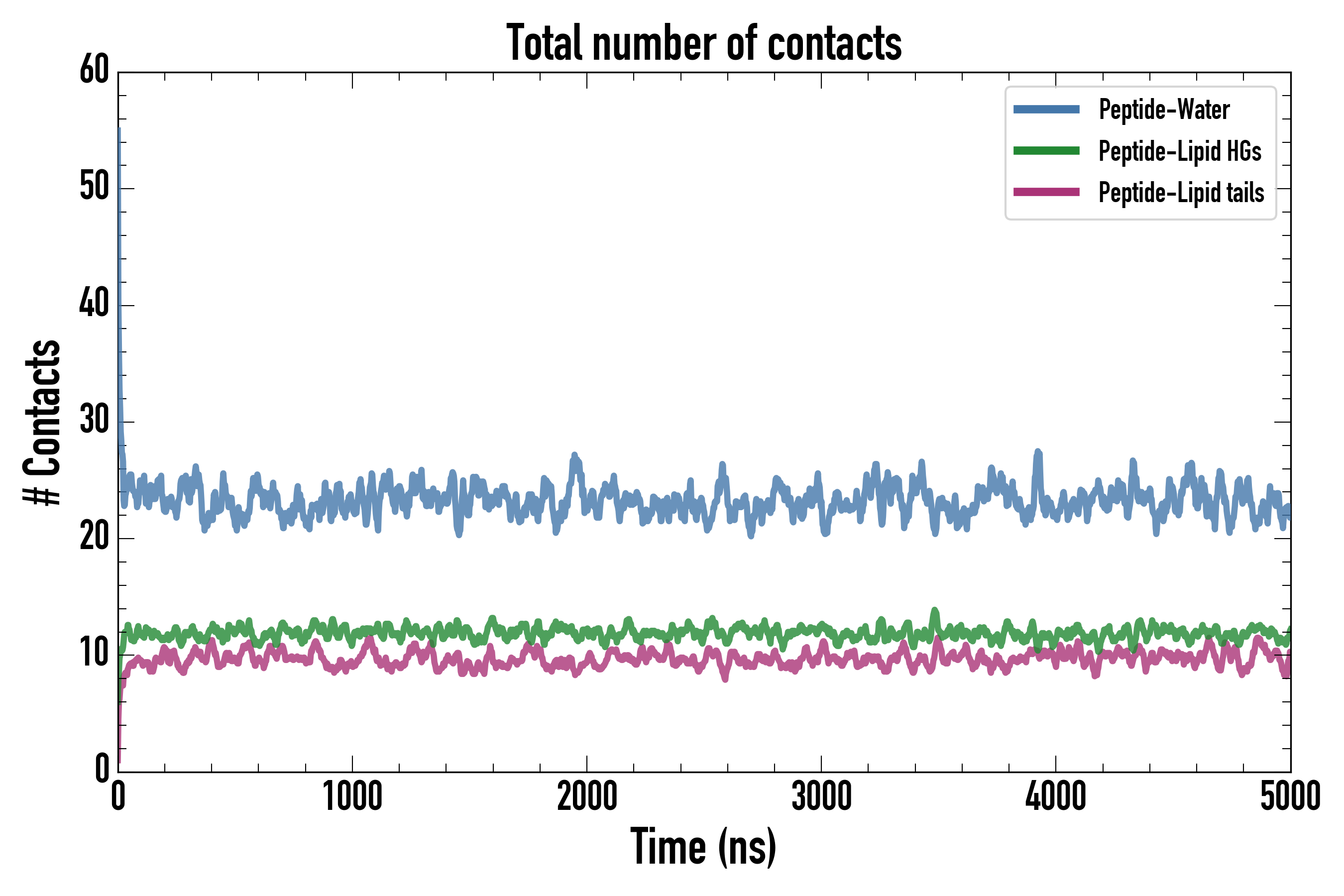

Number of contacts
Number of contacts between the peptide backbone and the water or the lipids separated by lipid headgroups (HG) or lipid tails, using a cut-off of 0.6 nm.

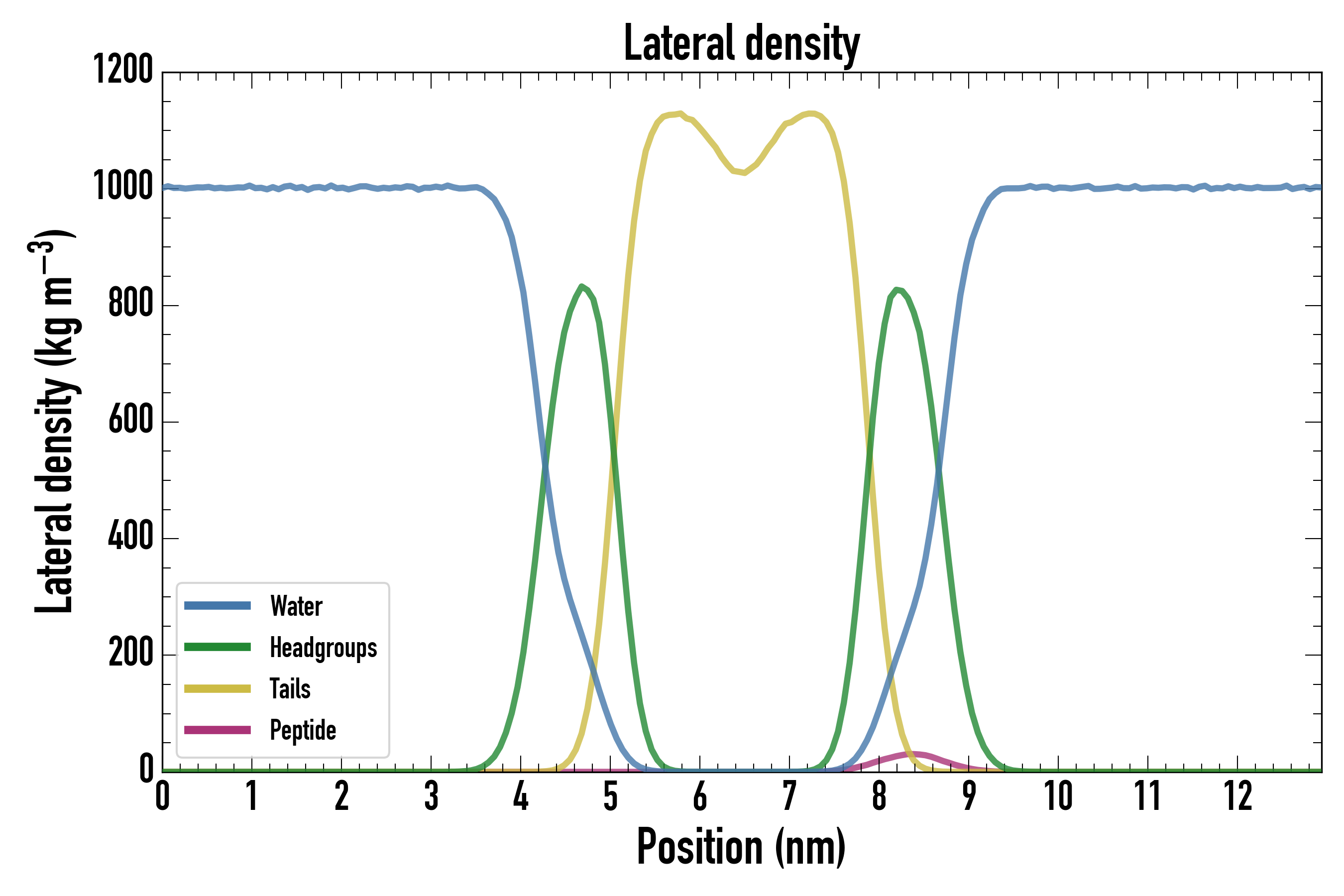

Lateral density
Lateral density for the different components of the system: headgroups, tail groups, peptide and water.
