Trajectory SP463

Force field: martini_v2.2P
Simulation length (ns): 5000
Electric field (kJ mol-1 nm-1 e-1): 0
Temperature (K): 300 (v-rescale)
Pressure (bar): 1 (parrinello-rahman semiisotropic)
Number of particles: 24334
Time step (fs) : 25
Software: GROMACS 2020
Supercomputer: Finisterrae II CESGA
Peptides: P78 DRAMP02483
Lipids: DOPC, DOPE, DOPS, DPSM
Heteromolecules: CHOL
Ions: NA
Water model: PW

  Download all Compresed Files.


Sequence :
KFFKKLKNSVKKRAKKFFKKPKVIGVTFPF
Total charge (e): +12
Number of residues: 30
By amino acid:
  Basic: 12
  Acidic: 0
  Hydrophobic: 15
  Polar: 3

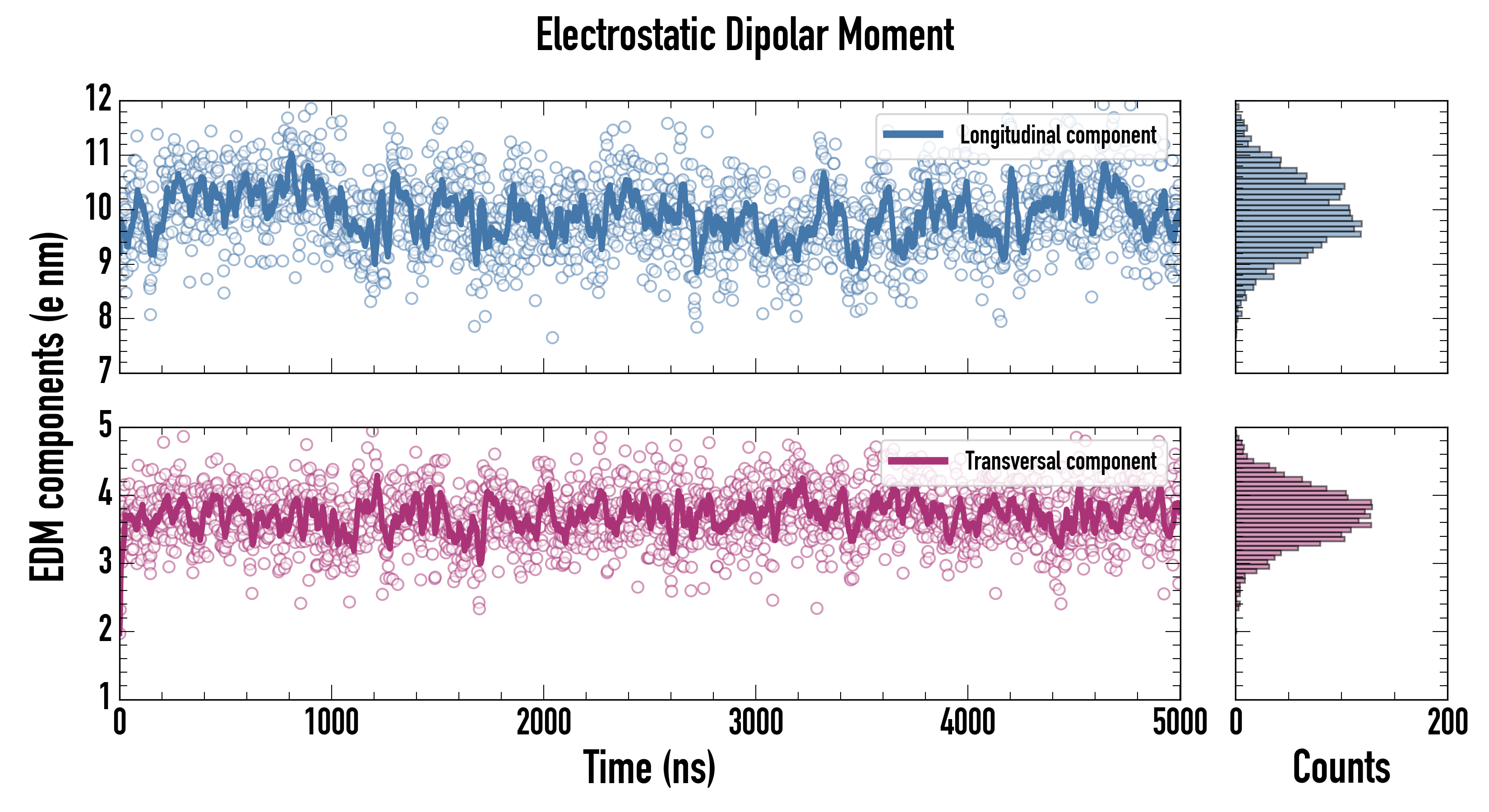

Electrostatic Dipolar Moment (e nm): 12.6
Longitudinal (e nm): 12.4
Transversal (e nm): 2.07

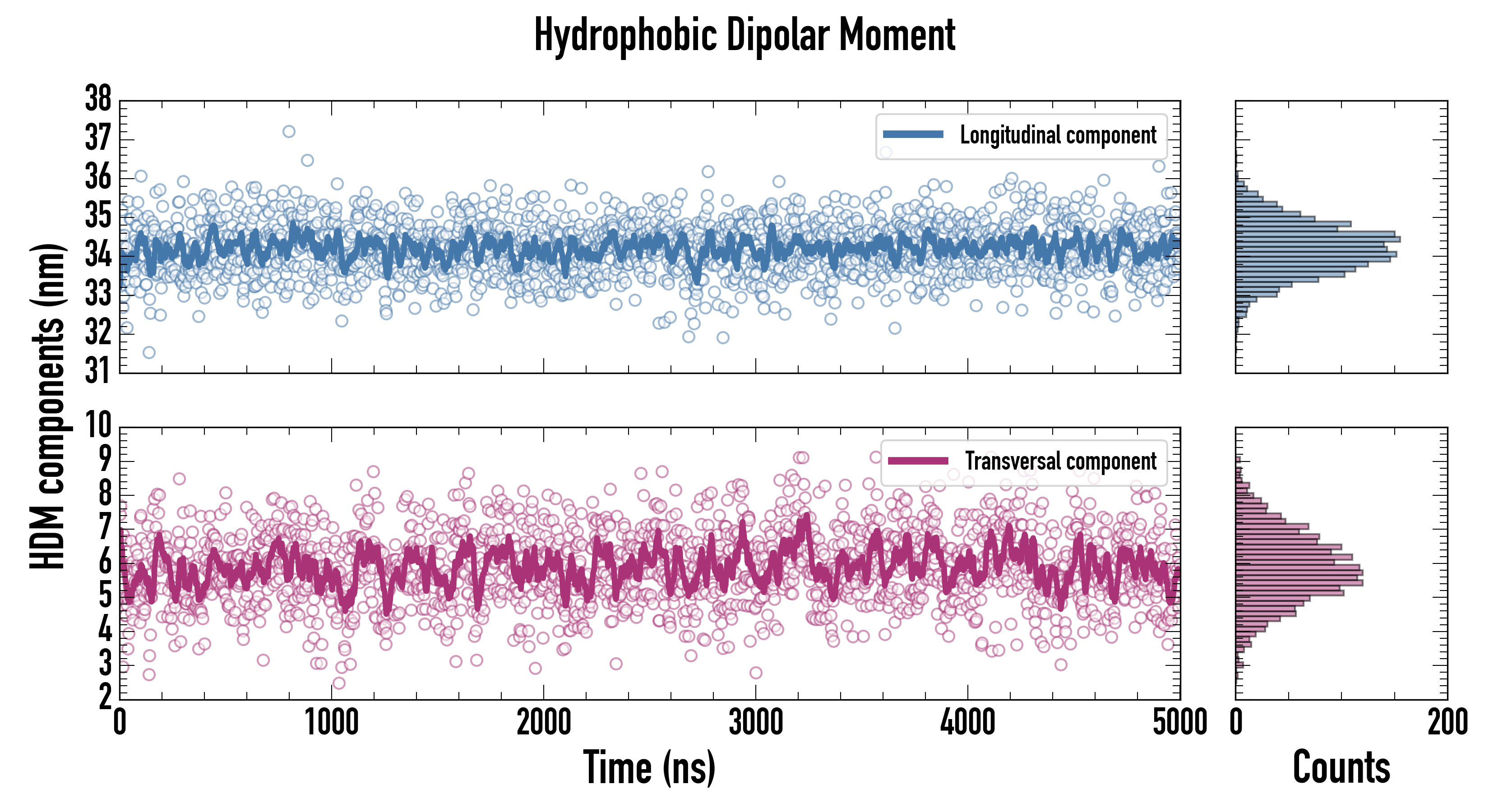

Hydrophobic Dipolar Moment (nm): 35.6
Longitudinal (nm): 35.3
Transversal (nm): 4.46
Secondary structure: Helix
Activity:

Download Files
  ITP file.
  JSON file.
  PDB file.

Click on any component to highlight it from the plot.
Upper leaflet
Lower leaflet

Lipids


Membrane model for: DOPC:DOPE:DOPS:DPSM:CHOL (3:3:3:2:4) (Cancer)

DOPC
1,2-dioleoyl-sn-glycero-3-phosphocholine
Total charge (e): 0

  See DOPC lipid
  Download ITP File.
  Download PDB File.
DOPE
1,2-dioleoyl-sn-glycero-3-phosphoethanolamine
Total charge (e): 0

  See DOPE lipid
  Download ITP File.
  Download PDB File.
DOPS
1,2-dioleoyl-sn-glycero-3-phospho-L-serine
Total charge (e): -1

  See DOPS lipid
  Download ITP File.
  Download PDB File.
DPSM
Sphingomyelin C(d18:1/18:0) N-stearoyl-D-erythro tails
Total charge (e): 0

  See DPSM lipid
  Download ITP File.
  Download PDB File.
Last snapshot
  Download PDB File.

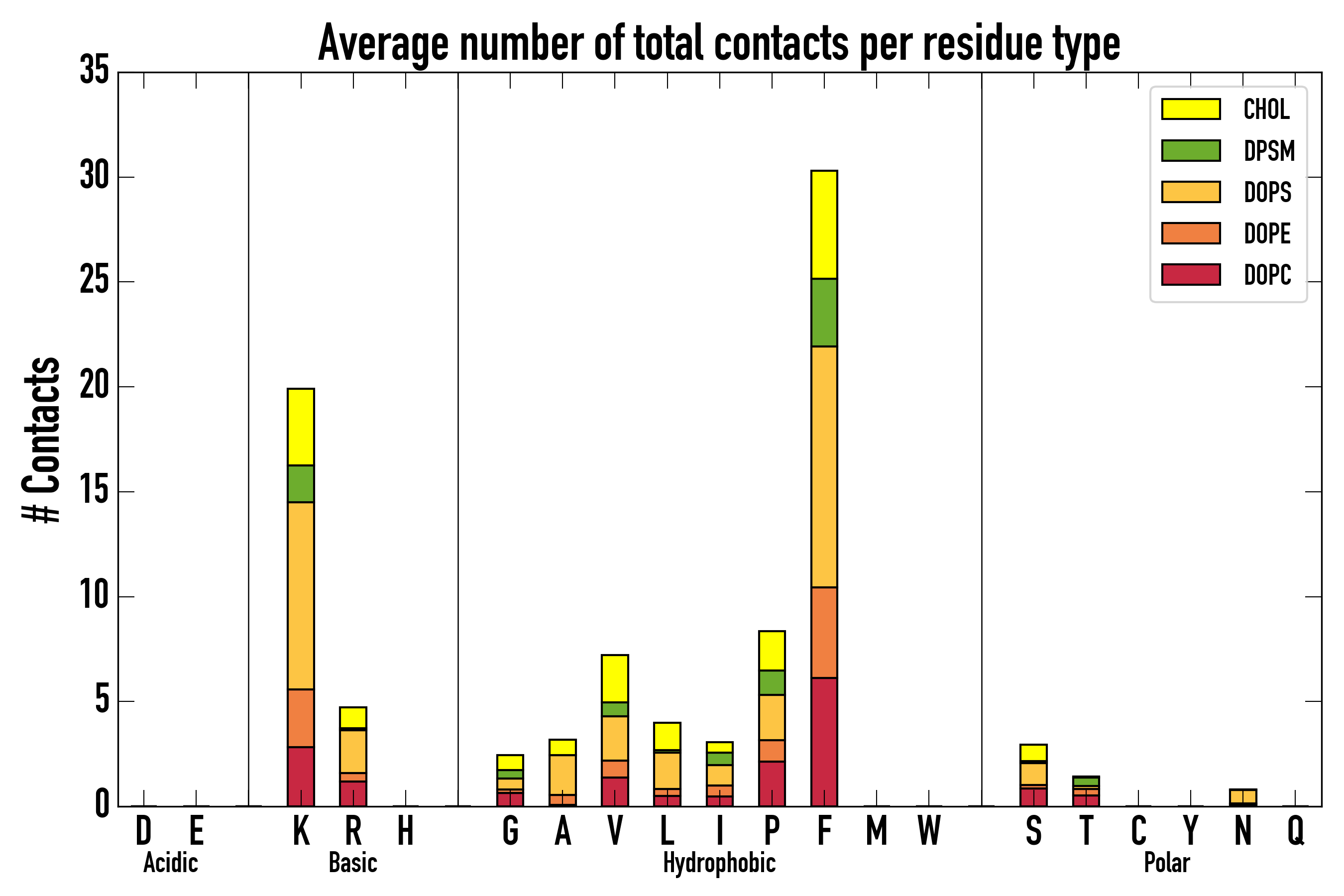

Total contacts per residue

  Download PDB File.

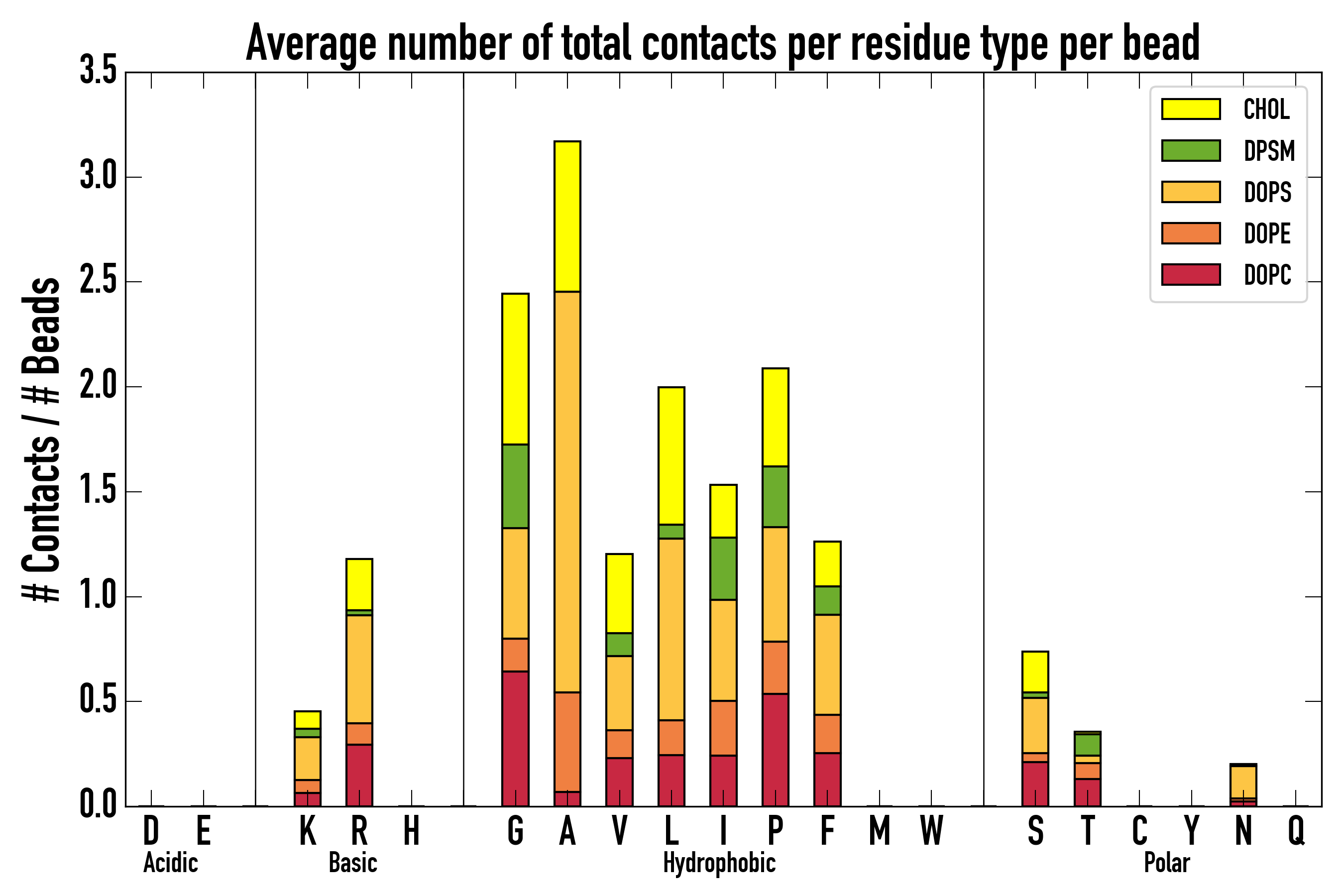

Contacts per residue
(normalized by number of beads in the residue)
  Download PDB File.

Molecular Dynamics based descriptors
Average and standard deviation, calculated using the autocorrelation function (for time series) or the width of the distribution, for the last microsecond of the trajectory

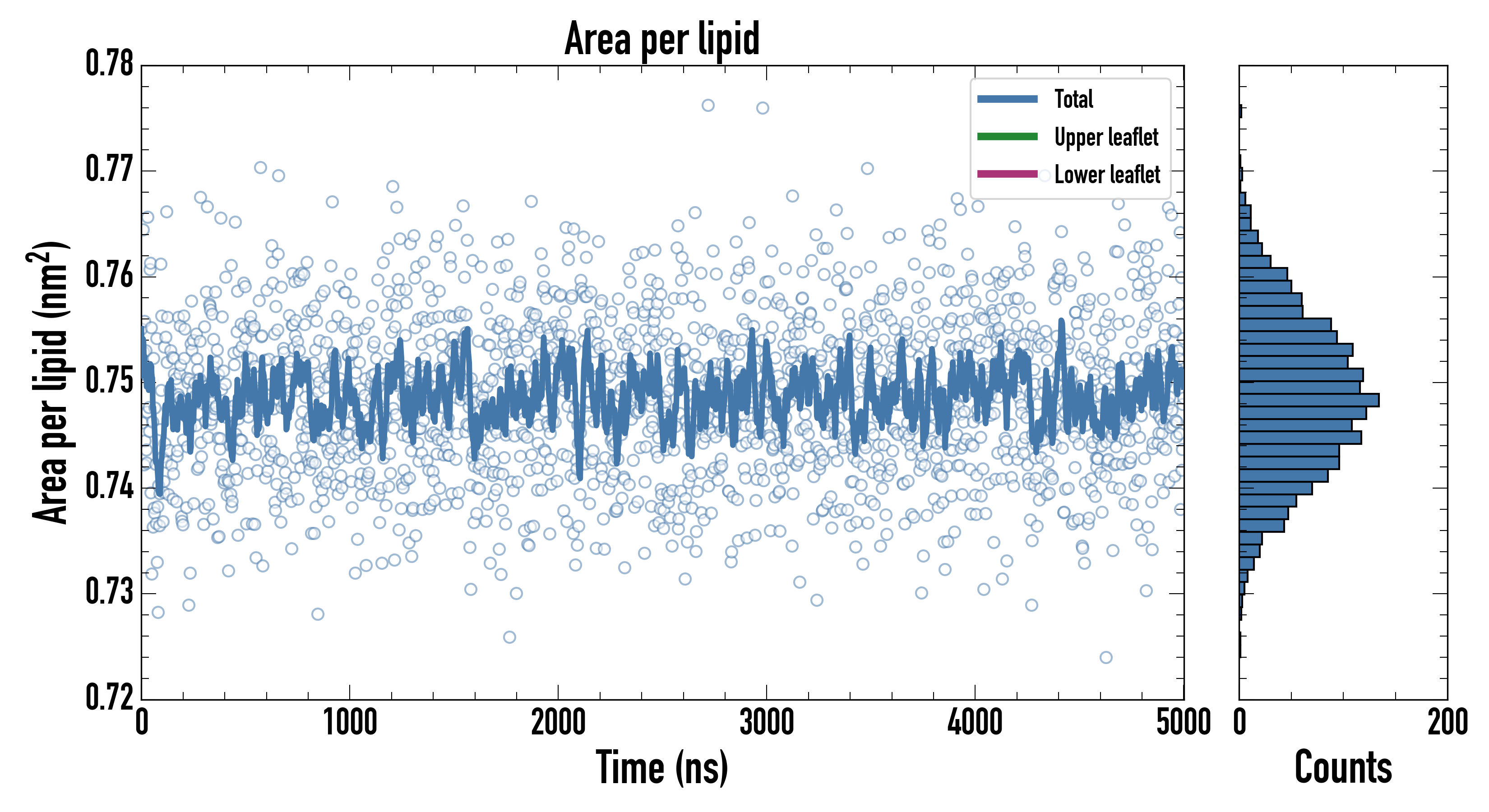

Area per lipid
Membrane (nm2): 0.74894 ± 0.00079
Upper leaflet (nm2): 0.74894 ± 0.00079
Lower leaflet (nm2): 0.74894 ± 0.00079
Average Z coordinate
Peptide (nm): 6.428 ± 0.021
First Residue (nm): 6.463 ± 0.031
Last Residue (nm): 6.470 ± 0.047
Membrane (nm): 4.6082 ± 0.0047
Upper leaflet Head Group (nm): 6.6079 ± 0.0059
Lower leaflet Head Group (nm): 2.6191 ± 0.0035
Bilayer Thickness (nm): 3.9888 ± 0.0069
Peptide insertion (nm): -0.180 ± 0.022
Contacts
Peptide - Water: 60.93 ± 0.66
Peptide - Head groups: 17.32 ± 0.26
Peptide - Tail groups: 16.12 ± 0.36

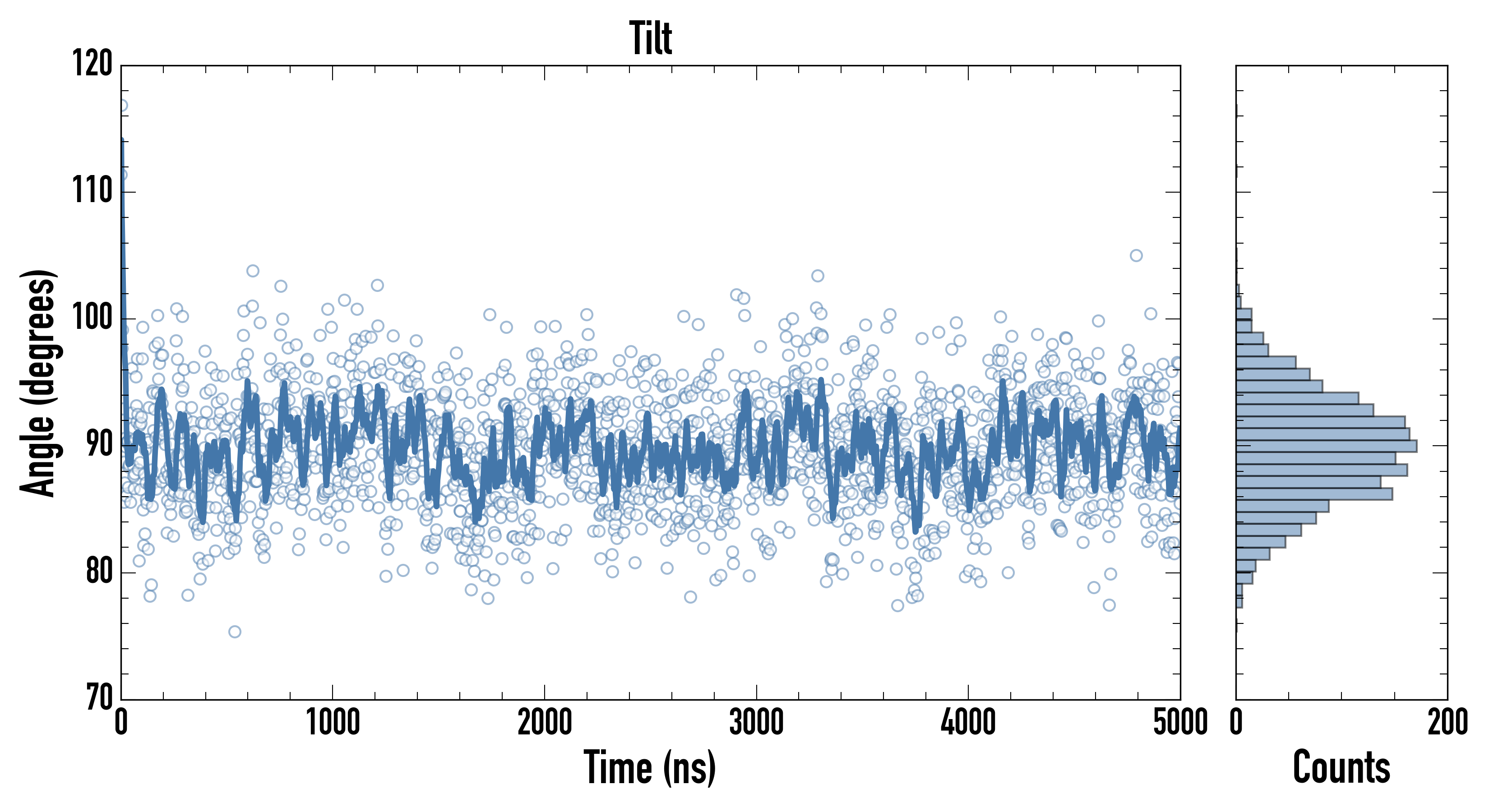

Tilt (°): 90.09 ± 0.67
PepDF:
5(ns):  CVS
Displacement (nm): 0.395 ± 0.022
Precession(°): -0.3 ± 1.1
50(ns)  CVS
Displacement (nm): 1.04 ± 0.16
Precession(°): -2.0 ± 11.0
100(ns)  CVS
Displacement(nm): 1.64 ± 0.45
Precession(°): -3.0 ± 18.0
200(ns)  CVS
Displacement(nm): 2.5 ± 1.4
Precession(°): -8.0 ± 26.0

  Download JSON File.

Peptide Analyses

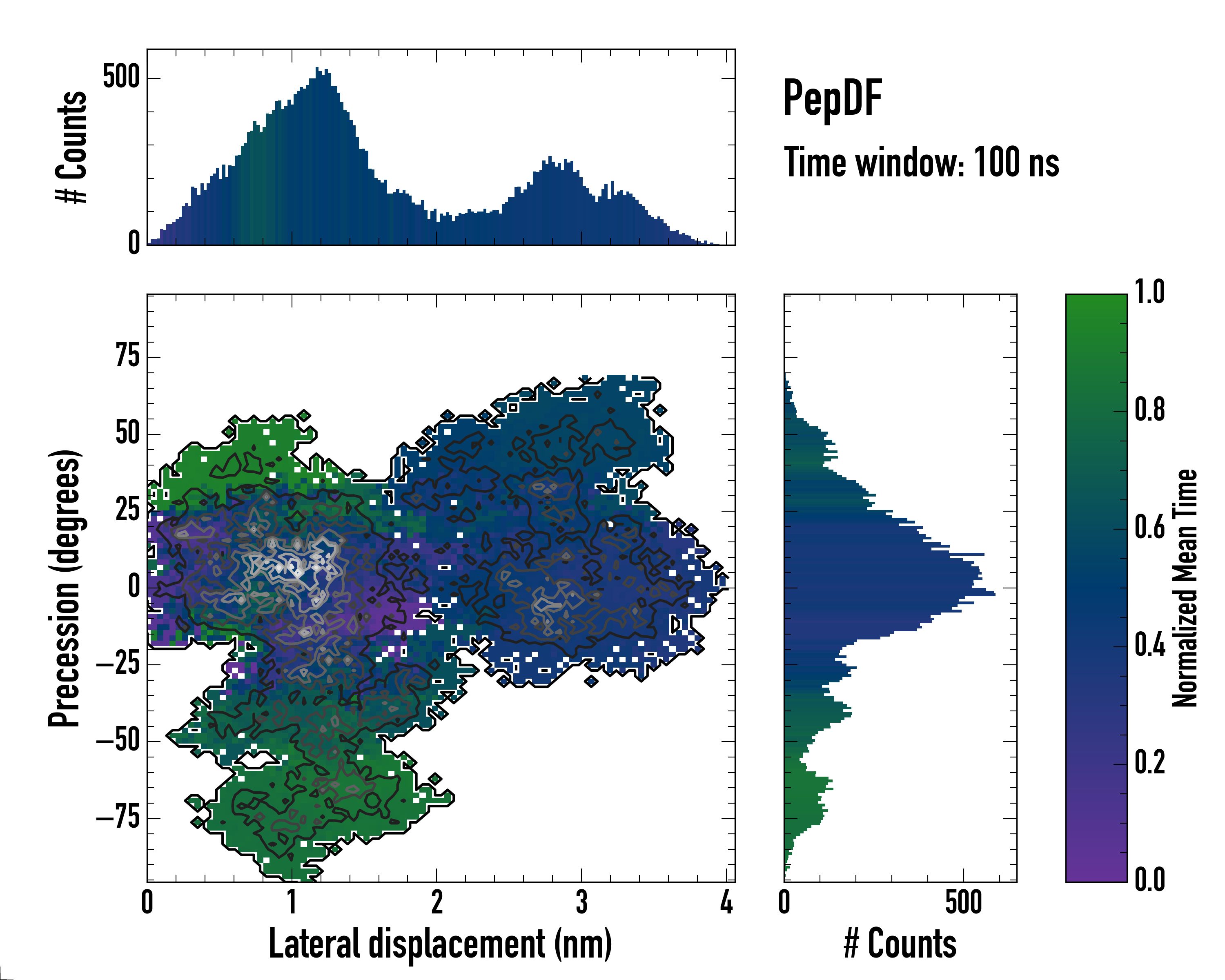

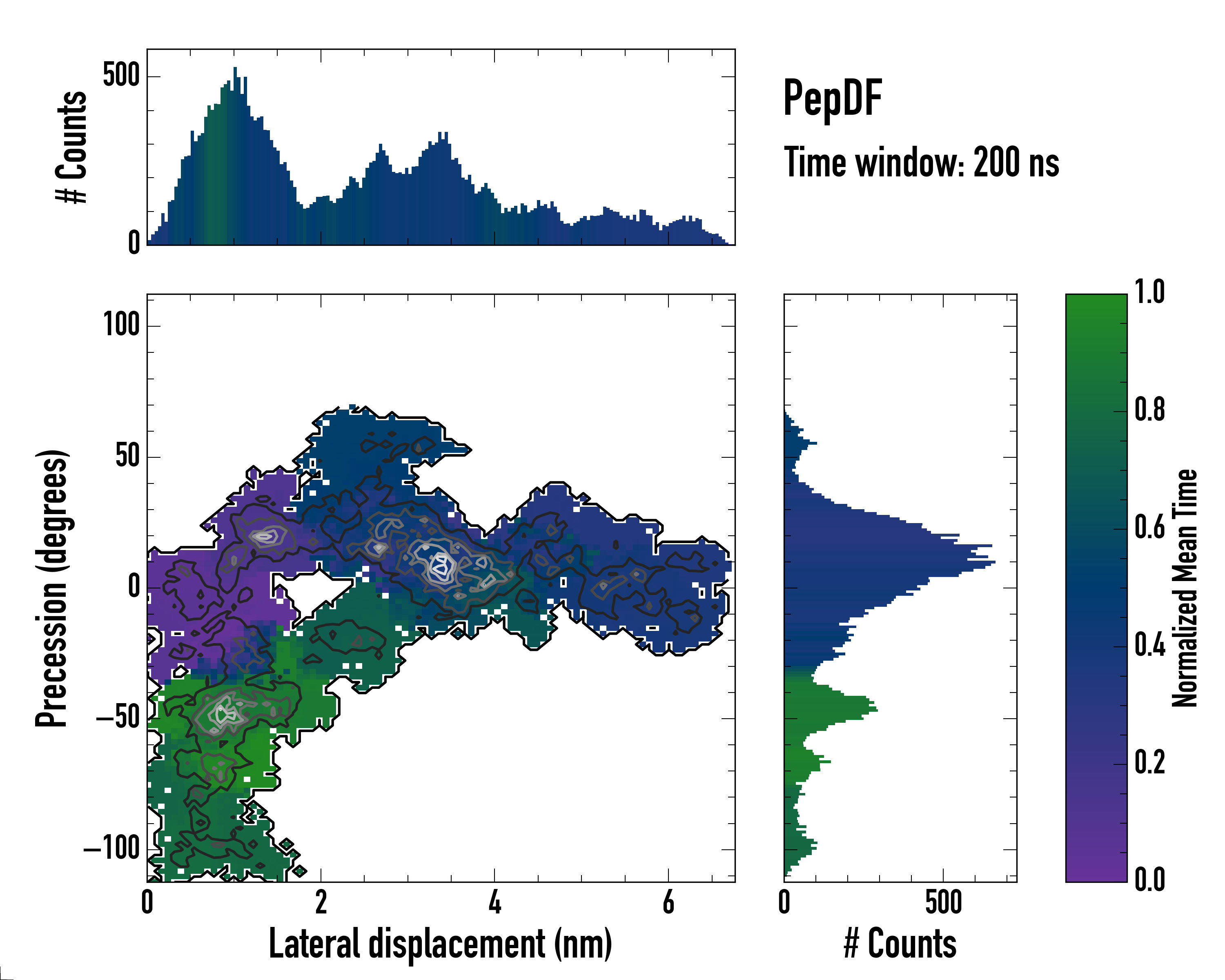

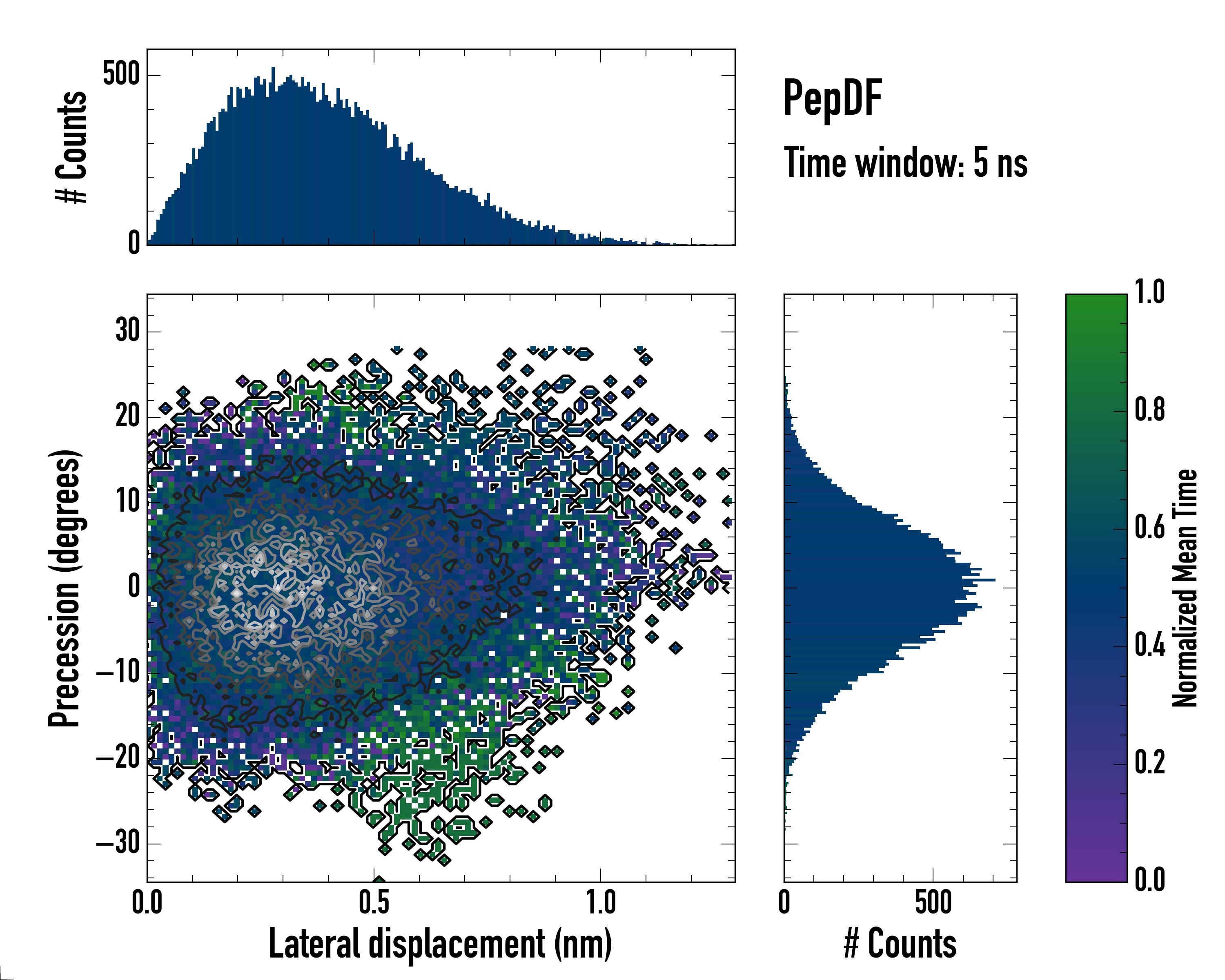

Peptide Displacement Fingerprint (PepDF)
Lateral displacement vs Rotational Displacement along the trajectory, for different time windows .

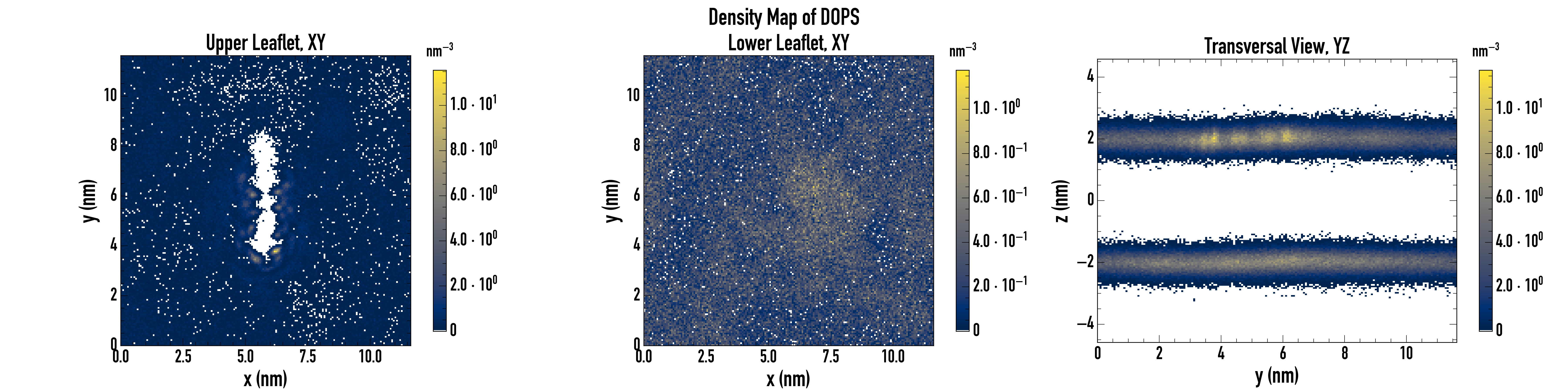

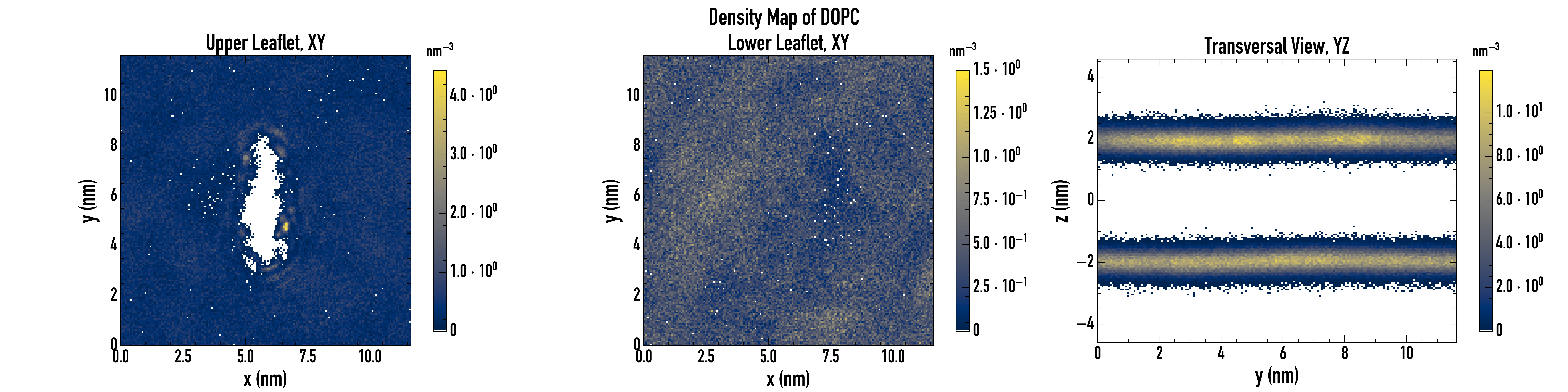

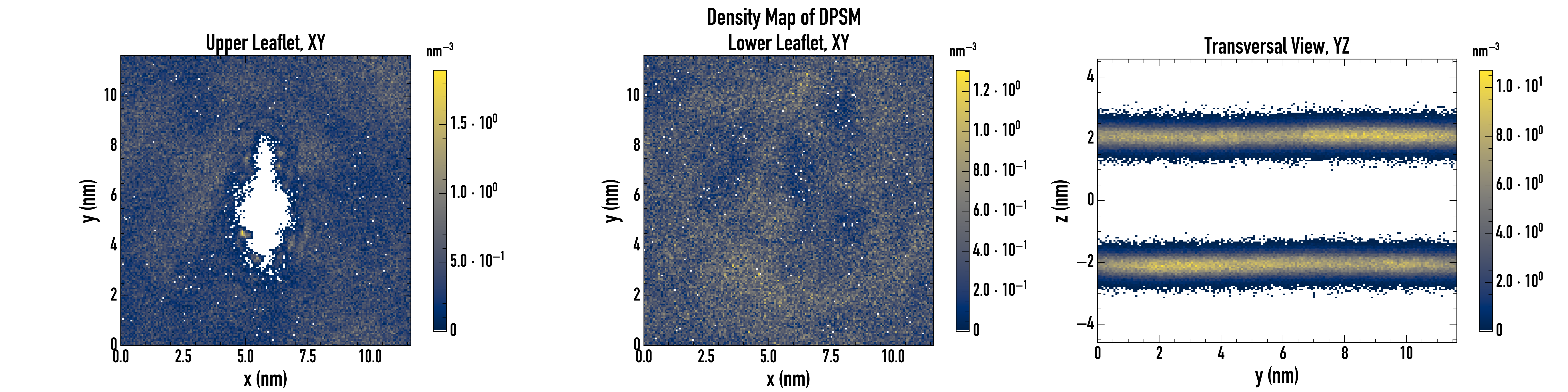

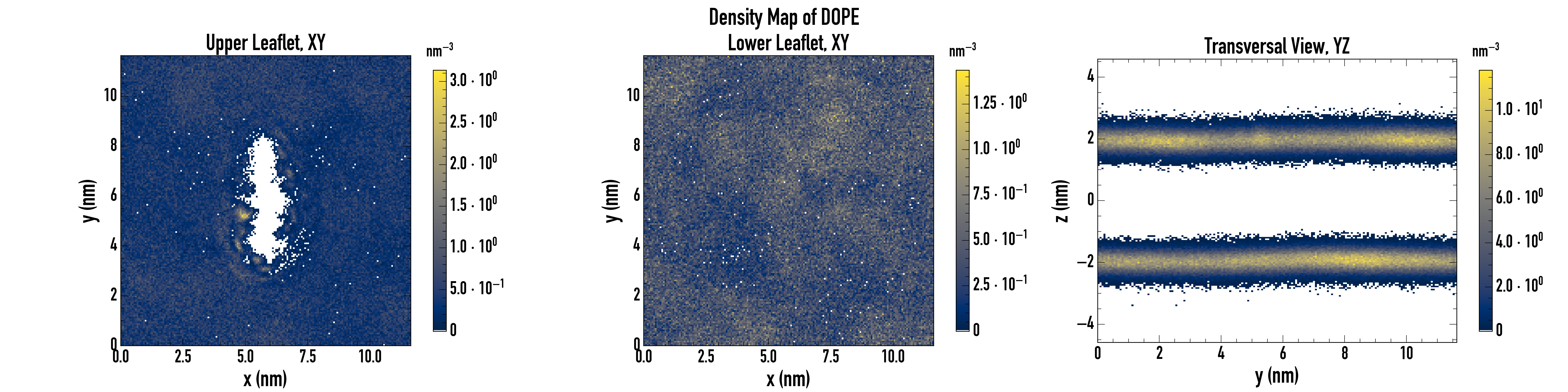

Density maps:
2D-density maps of lipids around the peptide along XY and YZ axis, calculated for each lipid type along the last microsecond.

Lipid-Peptide Analyses:

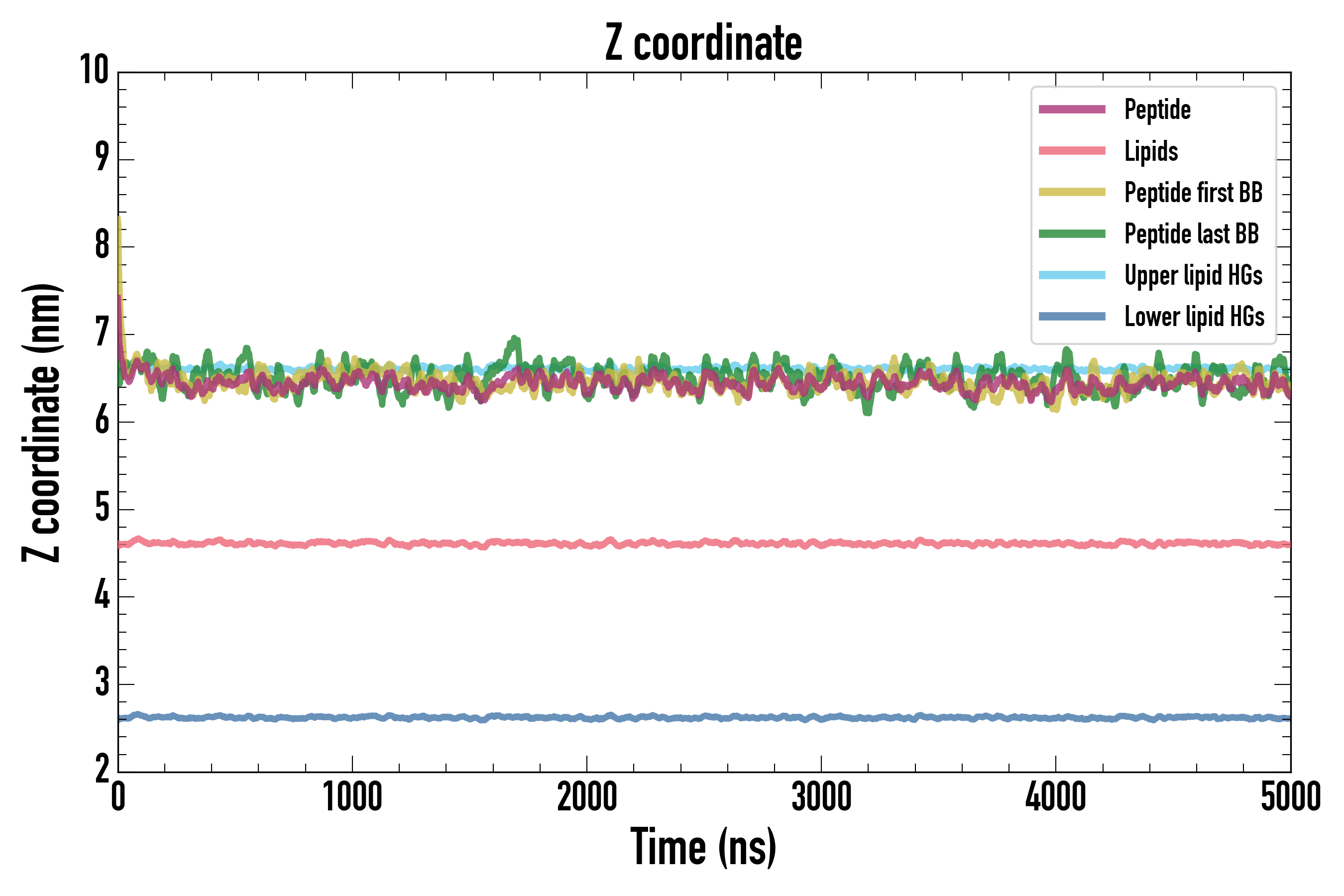

z-Position
Z-coordinate, averaged for differetn parts of the the system: peptide, membrane, first and last backbone (BB) residues and upper of lower leaflet lipids’ headgroups (HGs).

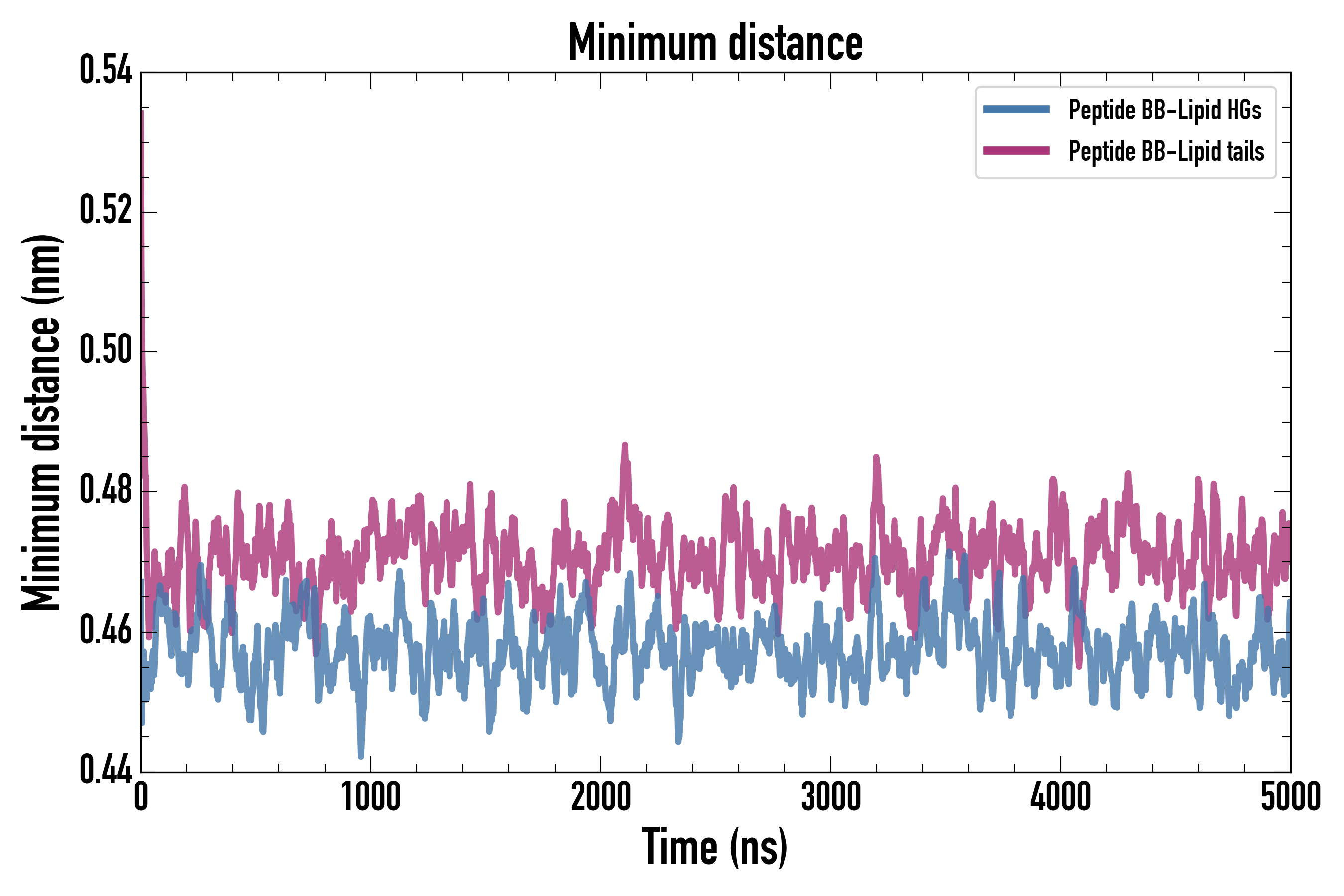

Minimum distance
Minimum distance (nm) between the peptide backbone and the lipids (headgroups and tailgroups).

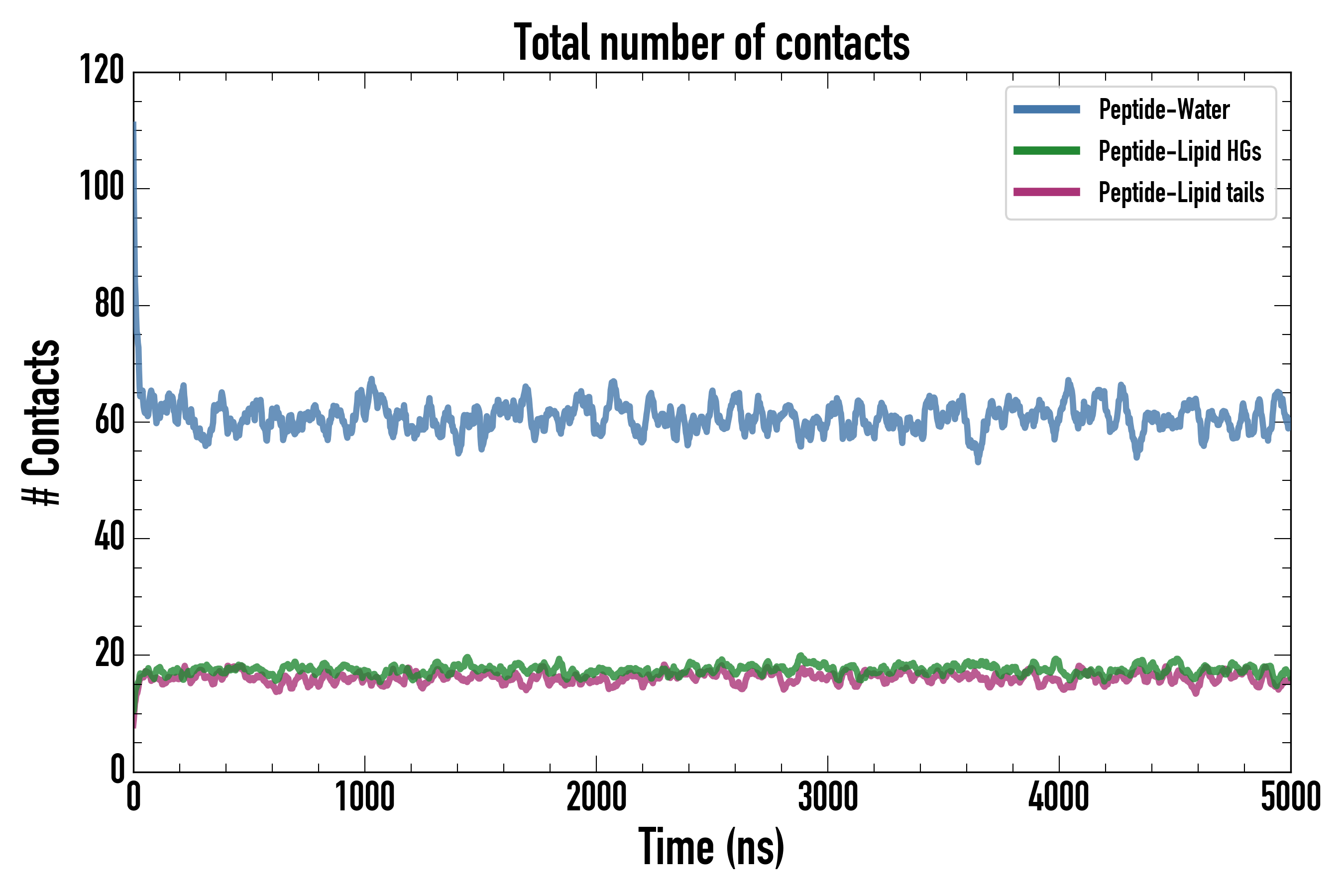

Number of contacts
Number of contacts between the peptide backbone and the water or the lipids separated by lipid headgroups (HG) or lipid tails, using a cut-off of 0.6 nm.

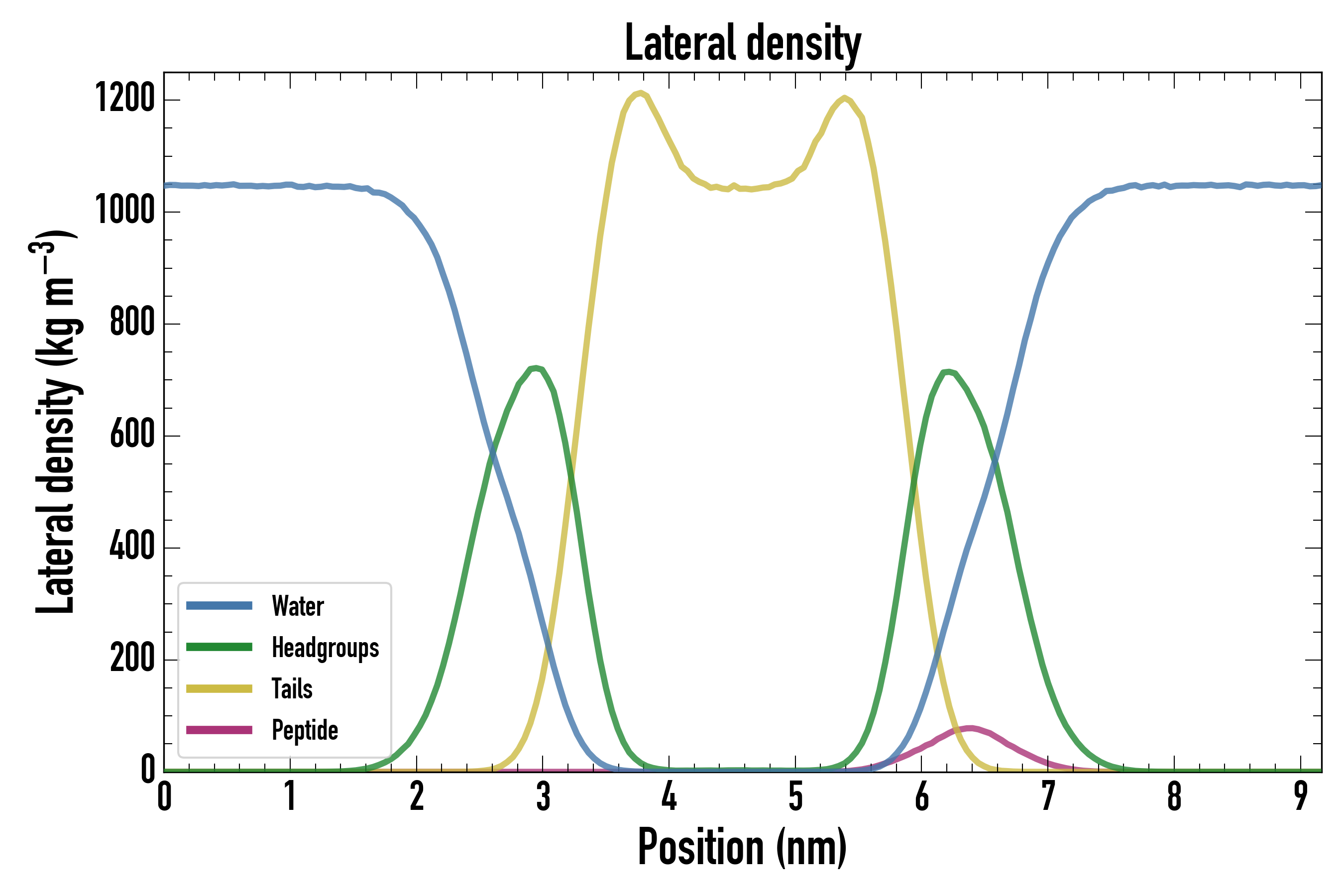

Lateral density
Lateral density for the different components of the system: headgroups, tail groups, peptide and water.
