Trajectory SP185

Force field: martini_v2.2
Simulation length (ns): 5000
Electric field (kJ mol-1 nm-1 e-1): 0
Temperature (K): 300 (v-rescale)
Pressure (bar): 1 (parrinello-rahman semiisotropic)
Number of particles: 12294
Time step (fs) : 25
Software: GROMACS 2020
Supercomputer: Finisterrae II CESGA
Peptides: P31 DRAMP03278
Lipids: POPE, POPG
Heteromolecules:
Ions: NA
Water model: W

  Download all Compresed Files.


Sequence :
IWLTALKFLGKHAAKHLAKQQLSKL
Total charge (e): +5
Number of residues: 25
By amino acid:
  Basic: 7
  Acidic: 0
  Hydrophobic: 14
  Polar: 4

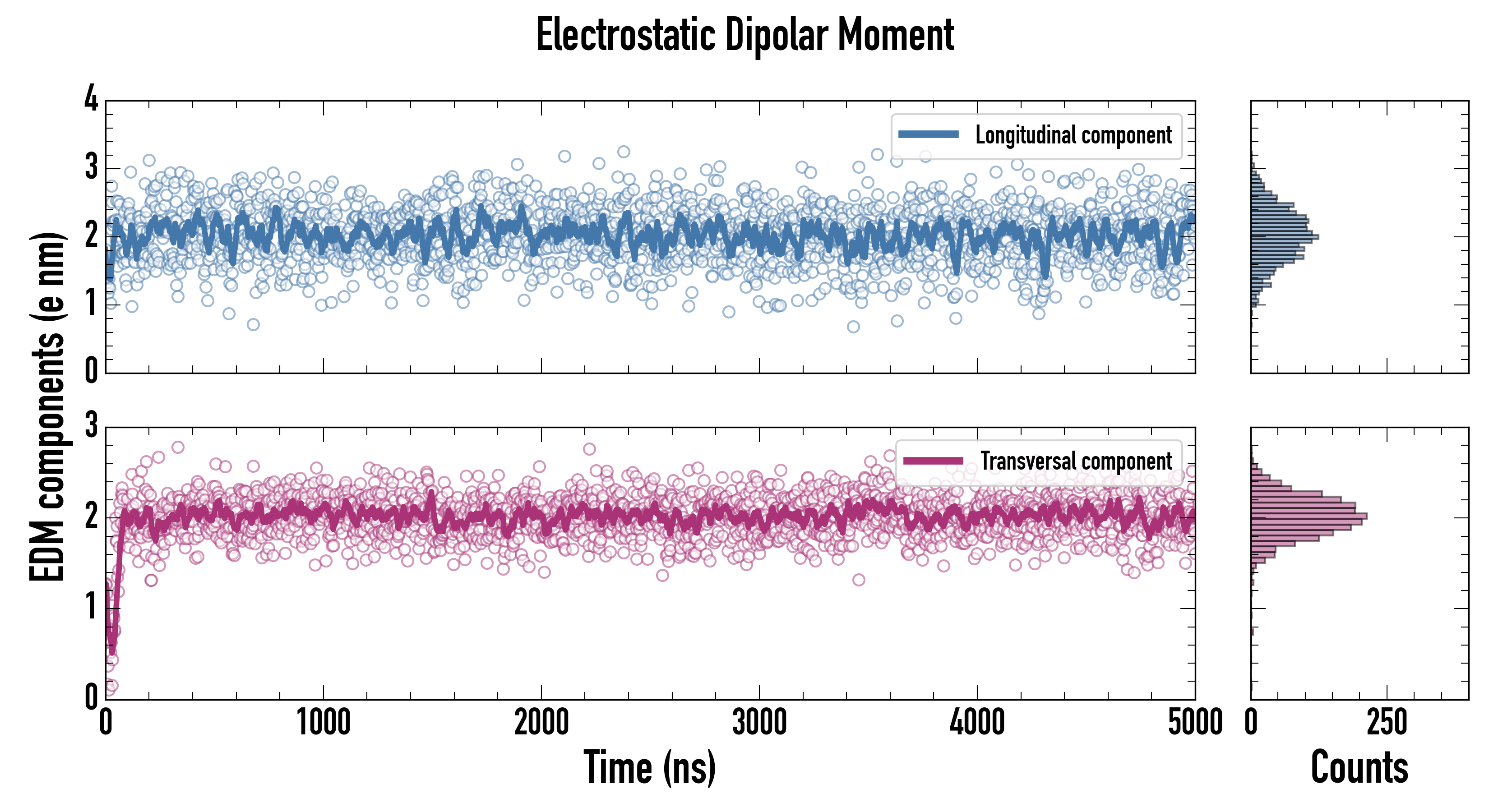

Electrostatic Dipolar Moment (e nm): 3.37
Longitudinal (e nm): 3.14
Transversal (e nm): 1.23

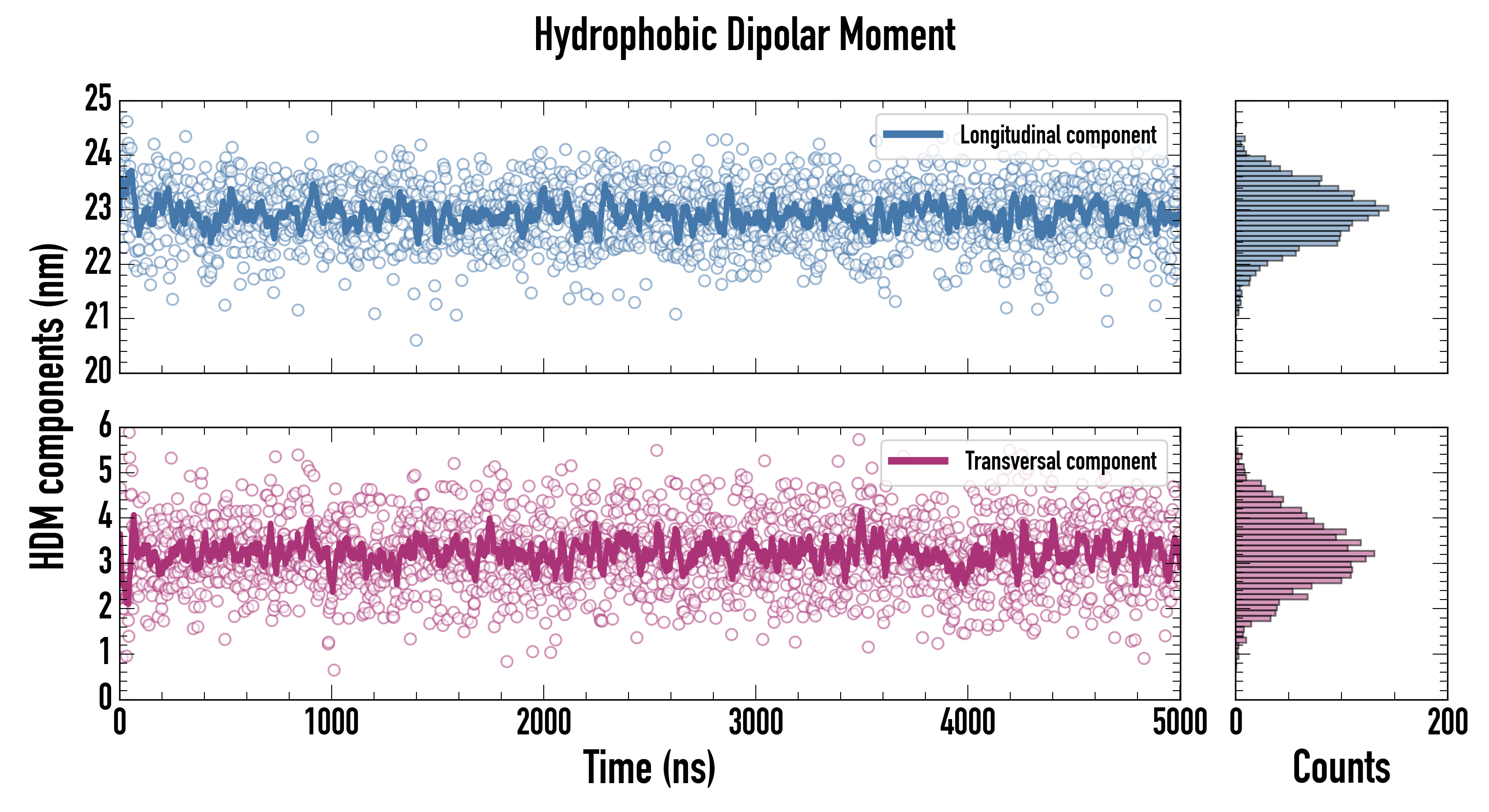

Hydrophobic Dipolar Moment (nm): 24.5
Longitudinal (nm): 24.4
Transversal (nm): 1.32
Secondary structure: Helix
Activity:

Download Files
  ITP file.
  JSON file.
  PDB file.

Click on any component to highlight it from the plot.
Upper leaflet
Lower leaflet

Lipids


Membrane model for: POPG:POPE (9:1) (Bacteria)

POPE
1-Palmitoyl-2-oleoyl-sn-glycero-3-phosphoethanolamine
Total charge (e): 0

  See POPE lipid
  Download ITP File.
  Download PDB File.
POPG
1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoglycerol
Total charge (e): -1

  See POPG lipid
  Download ITP File.
  Download PDB File.
Last snapshot
  Download PDB File.
Total contacts per residue

  Download PDB File.
Contacts per residue
(normalized by number of beads in the residue)
  Download PDB File.

Molecular Dynamics based descriptors
Average and standard deviation, calculated using the autocorrelation function (for time series) or the width of the distribution, for the last microsecond of the trajectory

Area per lipid
Membrane (nm2): 0.62797 ± 0.00060
Upper leaflet (nm2): 0.62797 ± 0.00060
Lower leaflet (nm2): 0.62797 ± 0.00060
Average Z coordinate
Peptide (nm): 6.224 ± 0.025
First Residue (nm): 6.188 ± 0.037
Last Residue (nm): 6.220 ± 0.028
Membrane (nm): 4.3677 ± 0.0041
Upper leaflet Head Group (nm): 6.3637 ± 0.0053
Lower leaflet Head Group (nm): 2.3737 ± 0.0029
Bilayer Thickness (nm): 3.990 ± 0.006
Peptide insertion (nm): -0.140 ± 0.026
Contacts
Peptide - Water: 28.02 ± 0.47
Peptide - Head groups: 15.82 ± 0.17
Peptide - Tail groups: 14.91 ± 0.20

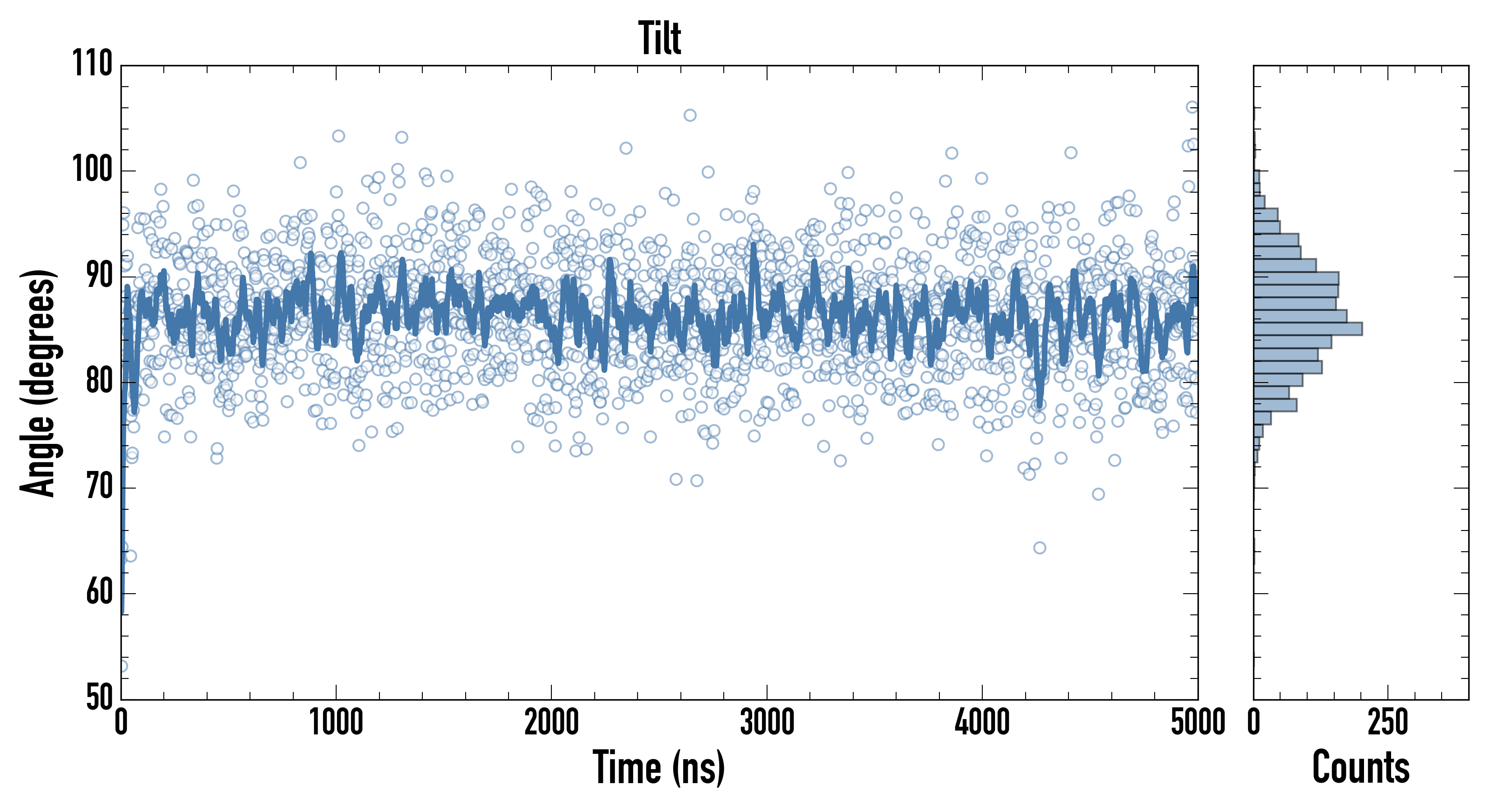

Tilt (°): 85.80 ± 0.68
PepDF:
5(ns):  CVS
Displacement (nm): 0.483 ± 0.024
Precession(°): -1.9 ± 2.1
50(ns)  CVS
Displacement (nm): 1.44 ± 0.31
Precession(°): -21.0 ± 15.0
100(ns)  CVS
Displacement(nm): 1.77 ± 0.54
Precession(°): -42.0 ± 25.0
200(ns)  CVS
Displacement(nm): 2.33 ± 0.68
Precession(°): -80.0 ± 43.0

  Download JSON File.

Peptide Analyses

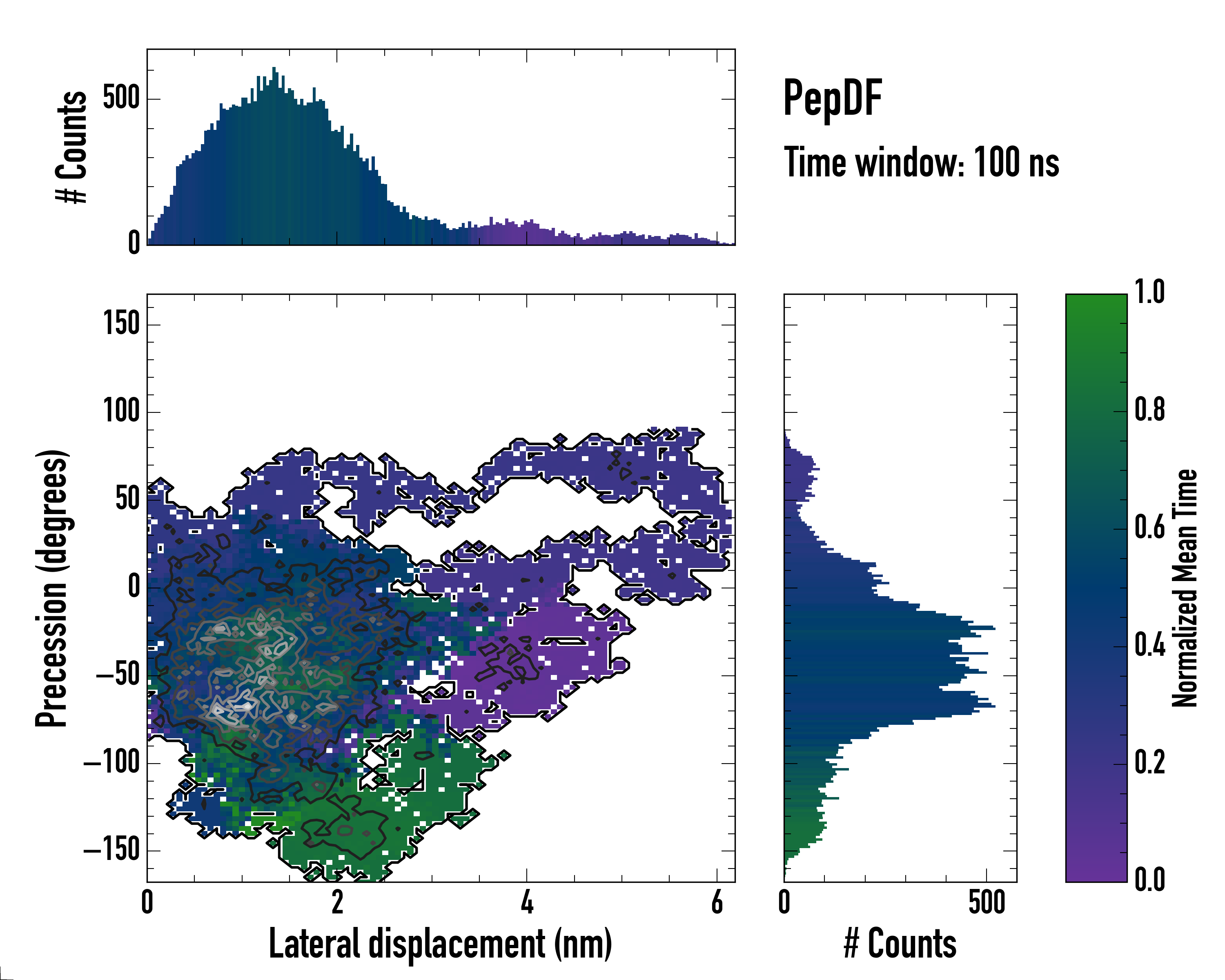

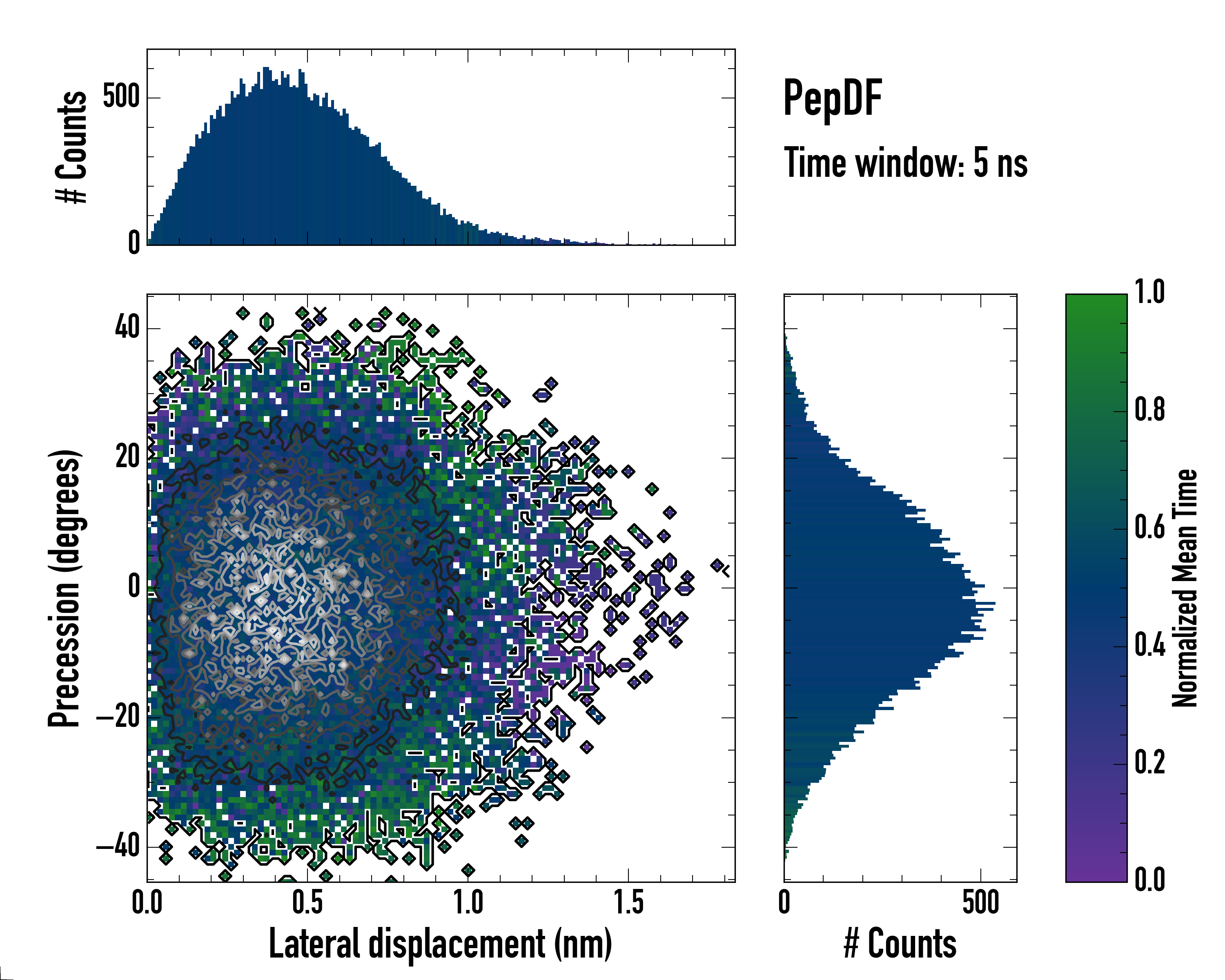

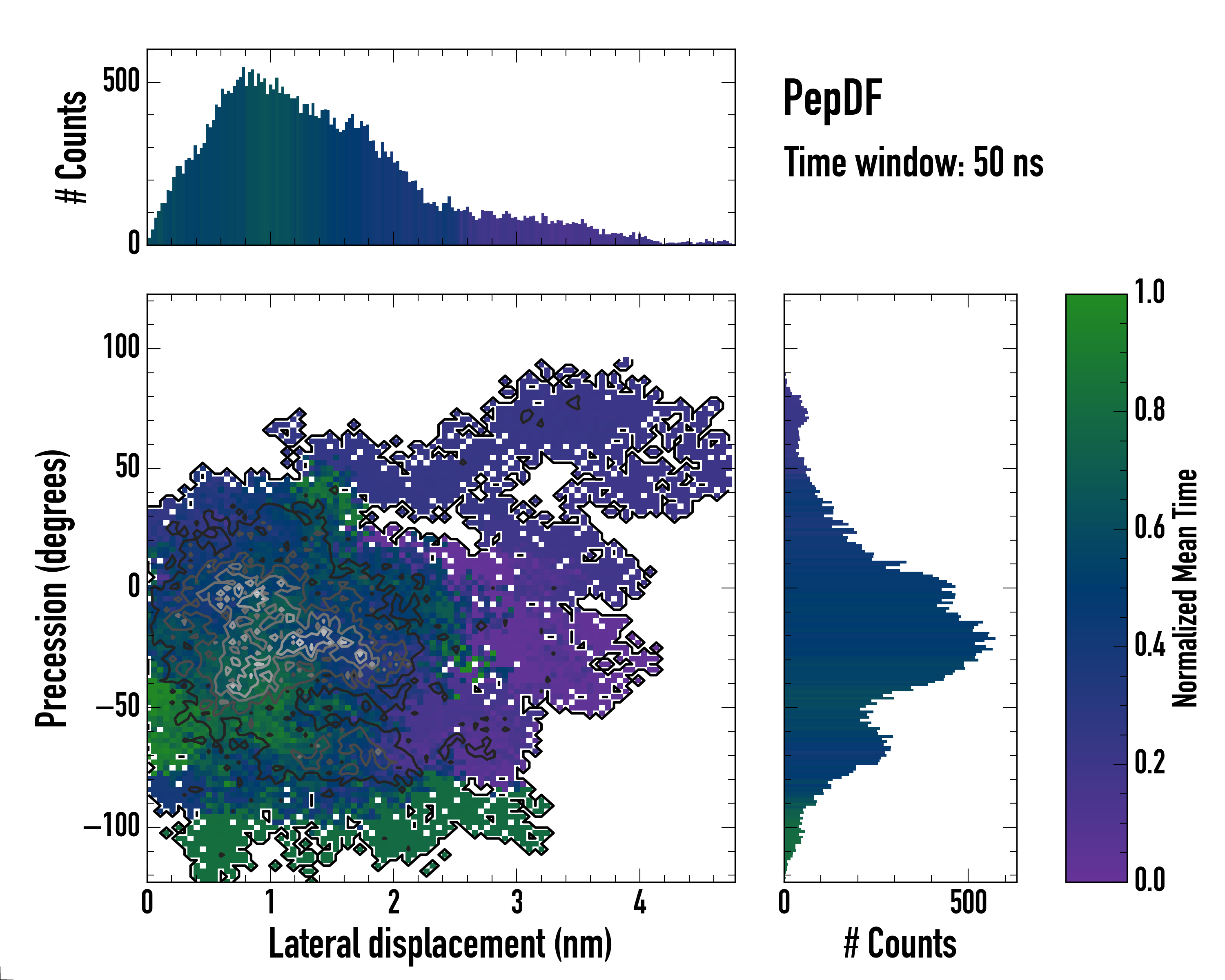

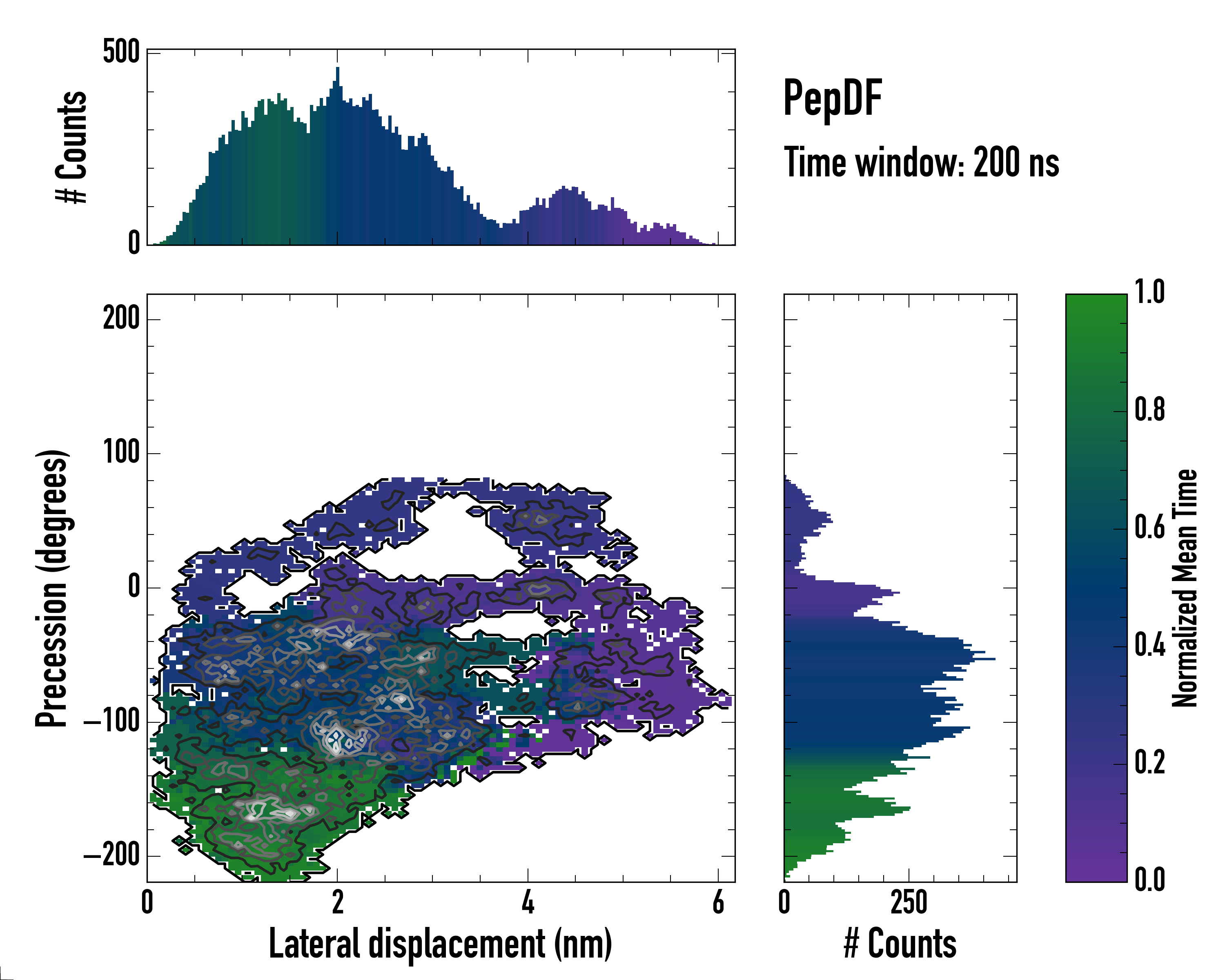

Peptide Displacement Fingerprint (PepDF)
Lateral displacement vs Rotational Displacement along the trajectory, for different time windows .

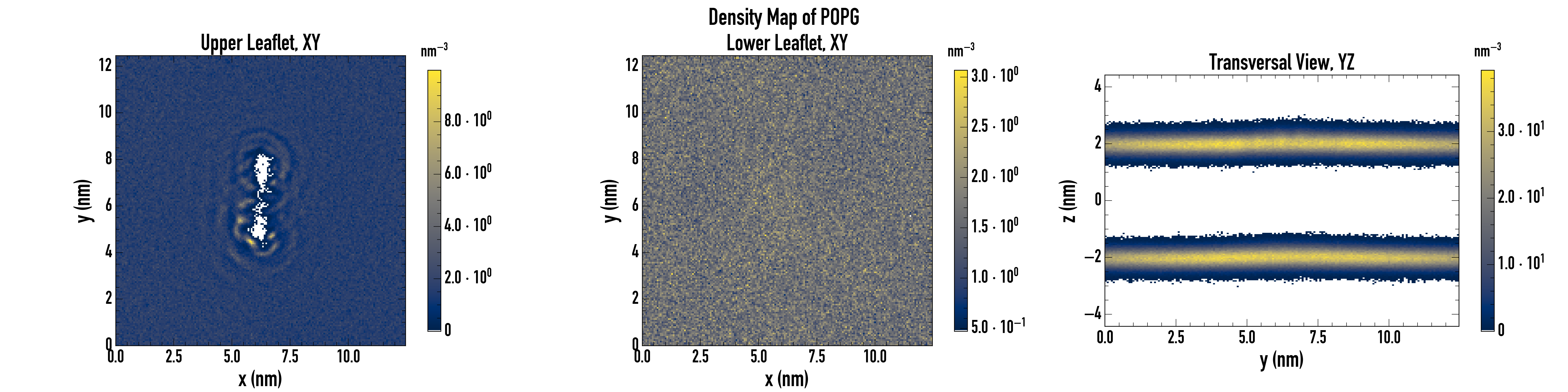

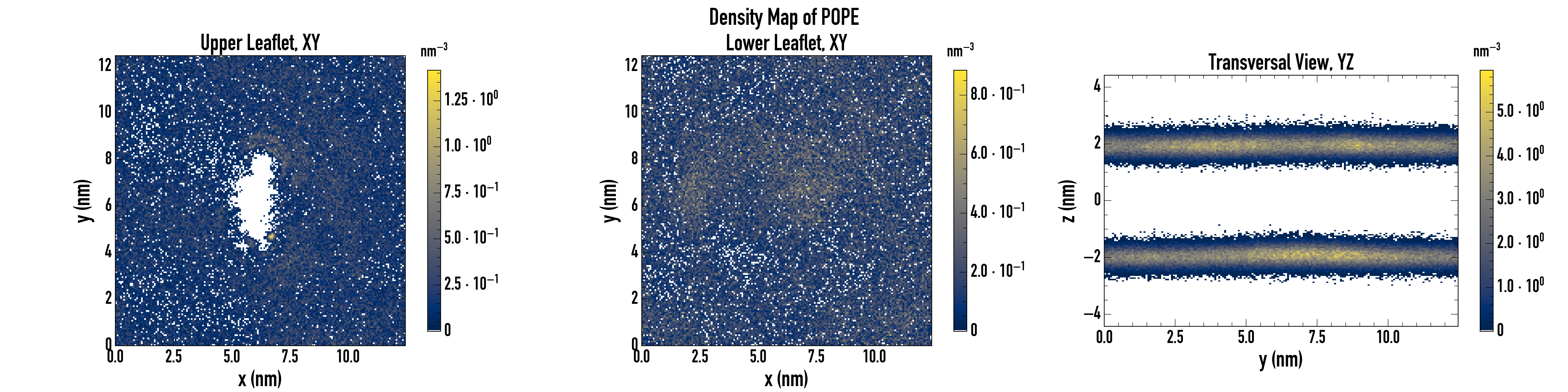

Density maps:
2D-density maps of lipids around the peptide along XY and YZ axis, calculated for each lipid type along the last microsecond.

Lipid-Peptide Analyses:

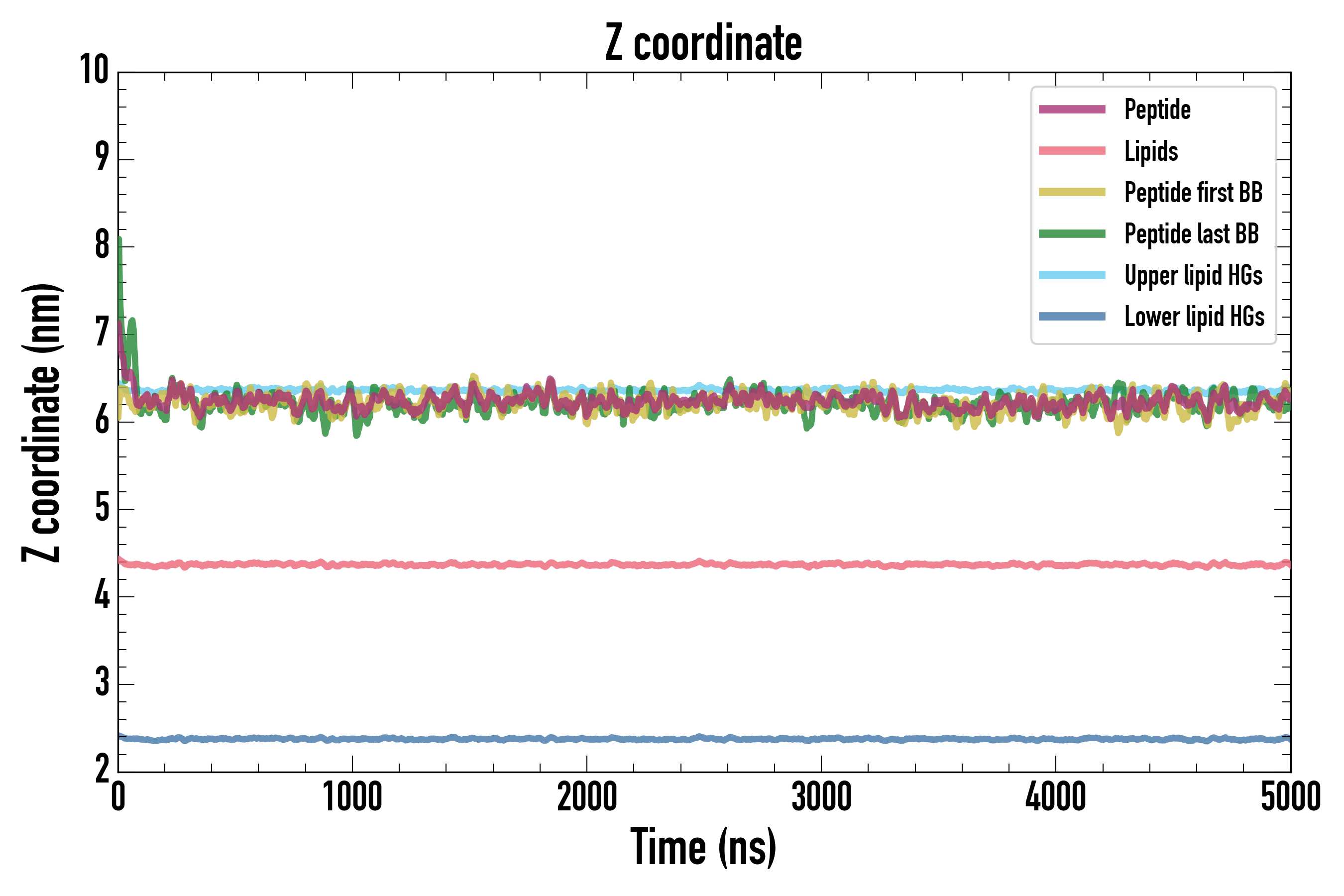

z-Position
Z-coordinate, averaged for differetn parts of the the system: peptide, membrane, first and last backbone (BB) residues and upper of lower leaflet lipids’ headgroups (HGs).

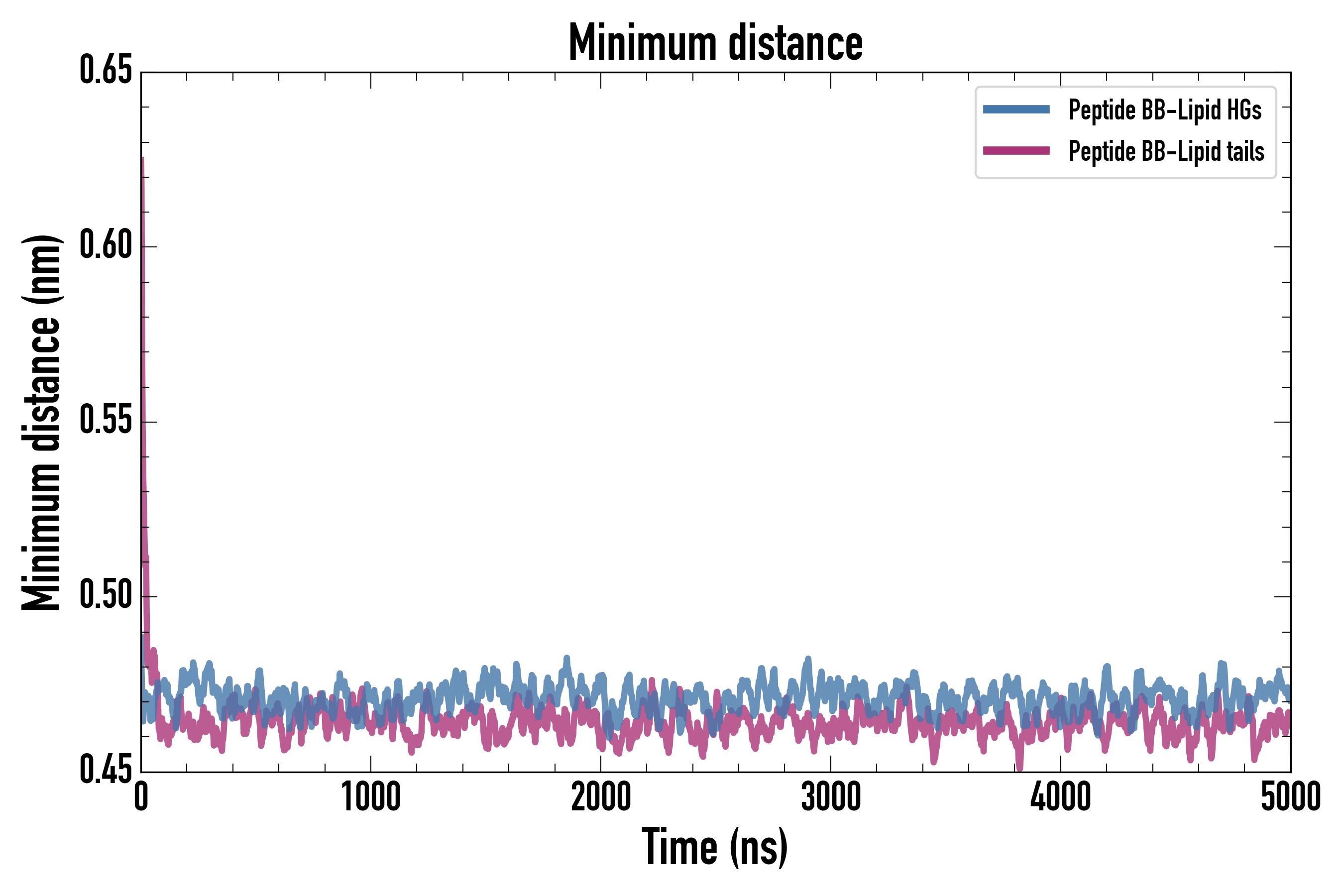

Minimum distance
Minimum distance (nm) between the peptide backbone and the lipids (headgroups and tailgroups).

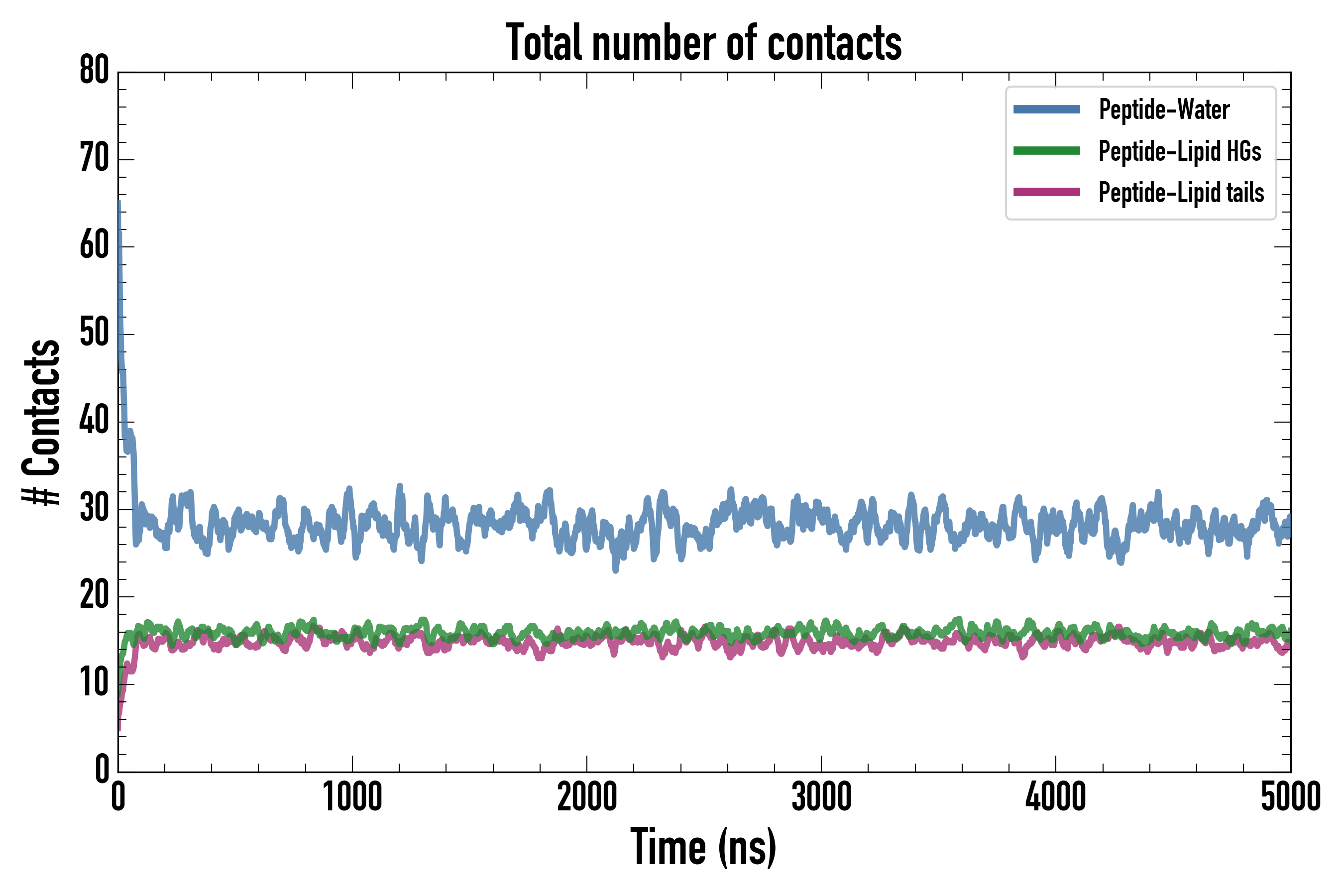

Number of contacts
Number of contacts between the peptide backbone and the water or the lipids separated by lipid headgroups (HG) or lipid tails, using a cut-off of 0.6 nm.

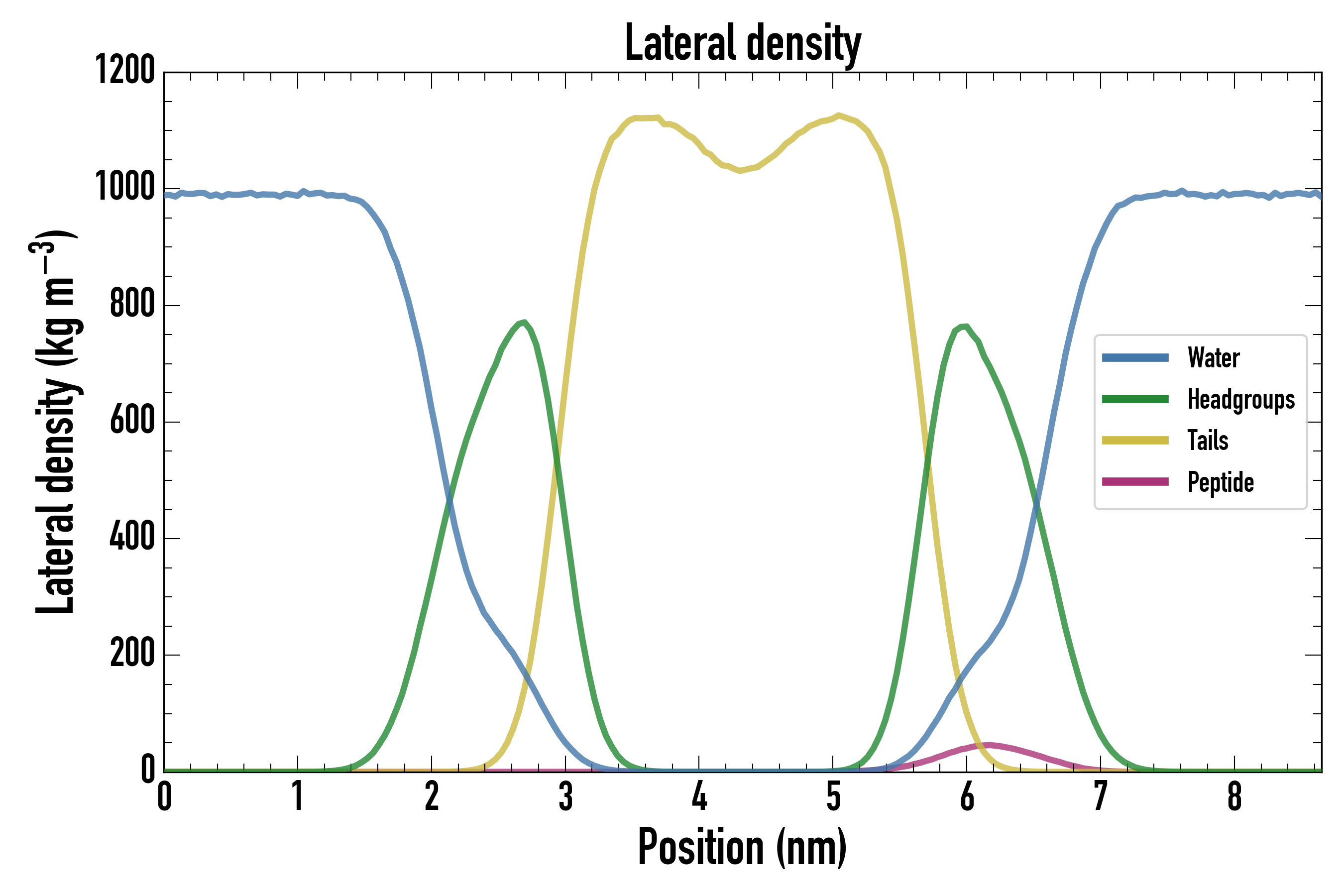

Lateral density
Lateral density for the different components of the system: headgroups, tail groups, peptide and water.
