Trajectory SP1448
Force field:
martini_v3
Simulation length (ns): 5000
Electric field (kJ mol-1 nm-1 e-1): 0
Temperature (K): 300 (v-rescale)
Pressure (bar): 1 (Parrinello-rahman semiisotropic)
Number of particles: 19211
Time step (fs) : 25
Software: GROMACS 2021.5
Simulation length (ns): 5000
Electric field (kJ mol-1 nm-1 e-1): 0
Temperature (K): 300 (v-rescale)
Pressure (bar): 1 (Parrinello-rahman semiisotropic)
Number of particles: 19211
Time step (fs) : 25
Software: GROMACS 2021.5
Supercomputer:
Finisterrae III CESGA
Peptides: P513 NC03613
Lipids: POPC
Heteromolecules:
Ions: CL
Water model: W
Peptides: P513 NC03613
Lipids: POPC
Heteromolecules:
Ions: CL
Water model: W
Sequence :
ECTRSGGACNSHDQCCANFCRKATSTCM
Total charge (e): +1
Number of residues: 28

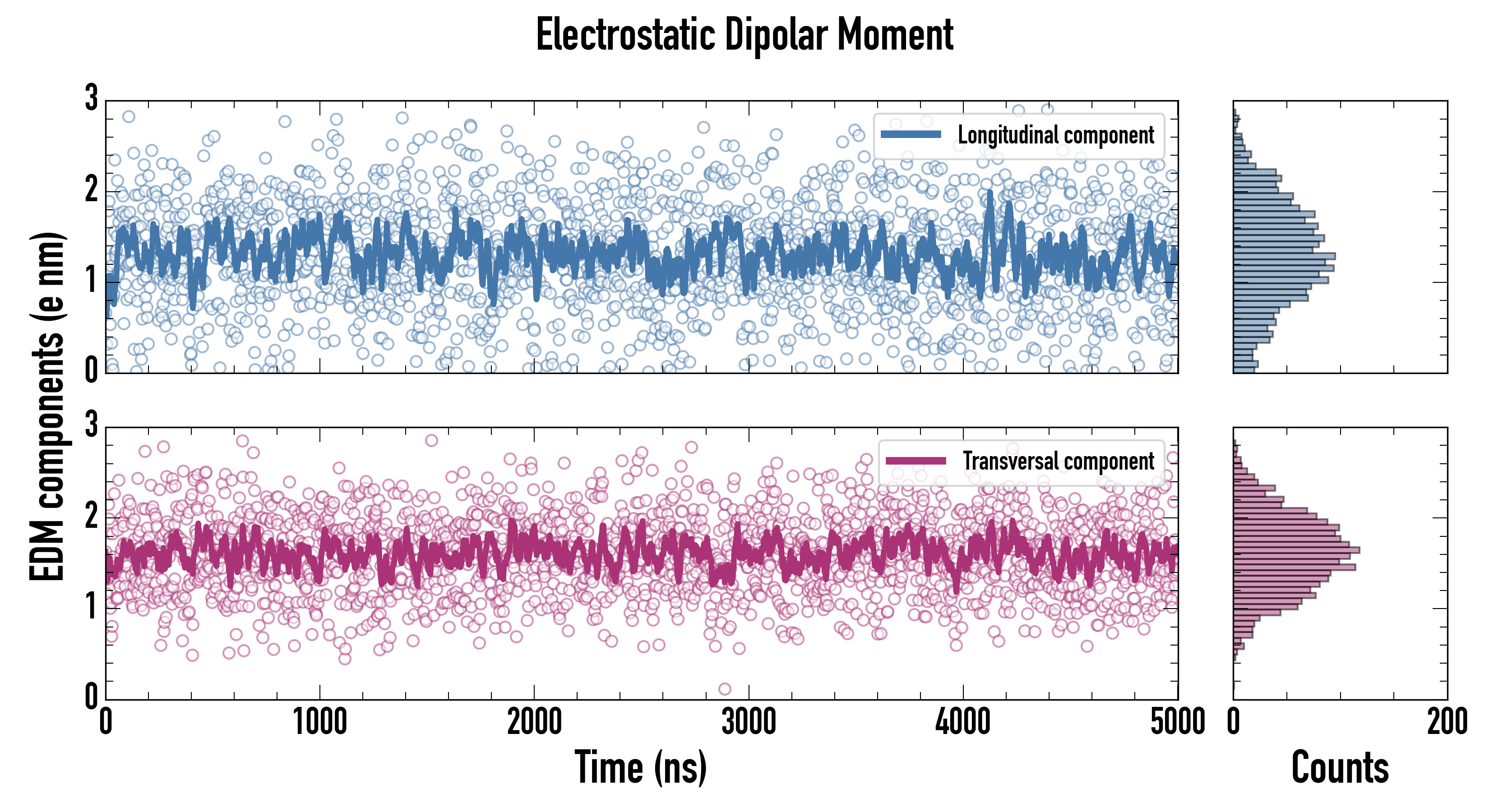

By amino acid: Basic: 6 Acidic: 2 Hydrophobic: 7 Polar: 15 Electrostatic Dipolar Moment (e nm): 2.76
Longitudinal (e nm): 2.18 Transversal (e nm): 1.7 Hydrophobic Dipolar Moment (nm): 6.48
Longitudinal (nm): 6.25 Transversal (nm): 1.73 Secondary structure: Helix
Activity:
Download Files
ITP file. JSON file. PDB file.
Click on any component to highlight it from the plot.
Upper leaflet
Lower leaflet
Lipids
Membrane model for: POPC (Healthy mammal)
POPC
2-oleoyl-sn-glycero-3-phosphocholine
Total charge (e): 0
See POPC lipid
Download ITP File. Download PDB File.
Last snapshot
Total contacts per residue
Number of total contacts per residue type:
Number of contacts between each residue of the peptide backbone and the different lipid types, averaged over the last microsecond and using a cut-off of 0.6 nm.
Contacts per residue
(normalized by total number of beads of the amino acid):
Number of contacts between each residue of the peptide backbone and the different lipid types, averaged over the last microsecond and using a cut-off of 0.6 nm.
Molecular Dynamics based descriptors
Average and standard deviation,
calculated using the autocorrelation function (for time
series)
or the width of the distribution, for the last microsecond
of
the trajectory
Area per lipid
Membrane (nm2): 0.64810800 ± 0.00114485
Upper leaflet (nm2): 0.64810800 ± 0.00114485
Lower leaflet (nm2): 0.64810800 ± 0.00114485
Average Z coordinate
Peptide (nm): 8.31501 ± 1.61227
First Residue (nm): 8.42823 ± 1.88227
Last Residue (nm): 8.26021 ± 1.43769
Membrane (nm): 6.8371300 ± 0.0119586
Upper leaflet Head Group (nm): 8.7802300 ± 0.0143122
Lower leaflet Head Group (nm): 4.89388000 ± 0.00984839
Bilayer Thickness (nm): 3.8863500 ± 0.0173733
Peptide insertion (nm): -0.465218 ± 1.612330
Contacts
Peptide - Water: 82.55250 ± 7.74177
Peptide - Head groups: 8.45750 ± 2.81774
Peptide - Tail groups: 4.11500 ± 1.64207
Tilt (°): 102.92400 ± 5.57852
Membrane (nm2): 0.64810800 ± 0.00114485
Upper leaflet (nm2): 0.64810800 ± 0.00114485
Lower leaflet (nm2): 0.64810800 ± 0.00114485
Average Z coordinate
Peptide (nm): 8.31501 ± 1.61227
First Residue (nm): 8.42823 ± 1.88227
Last Residue (nm): 8.26021 ± 1.43769
Membrane (nm): 6.8371300 ± 0.0119586
Upper leaflet Head Group (nm): 8.7802300 ± 0.0143122
Lower leaflet Head Group (nm): 4.89388000 ± 0.00984839
Bilayer Thickness (nm): 3.8863500 ± 0.0173733
Peptide insertion (nm): -0.465218 ± 1.612330
Contacts
Peptide - Water: 82.55250 ± 7.74177
Peptide - Head groups: 8.45750 ± 2.81774
Peptide - Tail groups: 4.11500 ± 1.64207
Tilt (°): 102.92400 ± 5.57852
PepDF:
5(ns): CVS
Displacement (nm): 1.1532800 ± 0.0600635
Precession(°): 2.66899 ± 4.07086
50(ns) CVS
Displacement (nm): 3.615830 ± 0.198005
Precession(°): 25.0159 ± 15.0211
100(ns) CVS
Displacement(nm): 5.451550 ± 0.340727
Precession(°): 59.2479 ± 20.4980
200(ns) CVS
Displacement(nm): 8.978330 ± 0.393083
Precession(°): 161.4850 ± 22.5495
Download JSON File.
5(ns): CVS
Displacement (nm): 1.1532800 ± 0.0600635
Precession(°): 2.66899 ± 4.07086
50(ns) CVS
Displacement (nm): 3.615830 ± 0.198005
Precession(°): 25.0159 ± 15.0211
100(ns) CVS
Displacement(nm): 5.451550 ± 0.340727
Precession(°): 59.2479 ± 20.4980
200(ns) CVS
Displacement(nm): 8.978330 ± 0.393083
Precession(°): 161.4850 ± 22.5495
Download JSON File.
Peptide Analyses

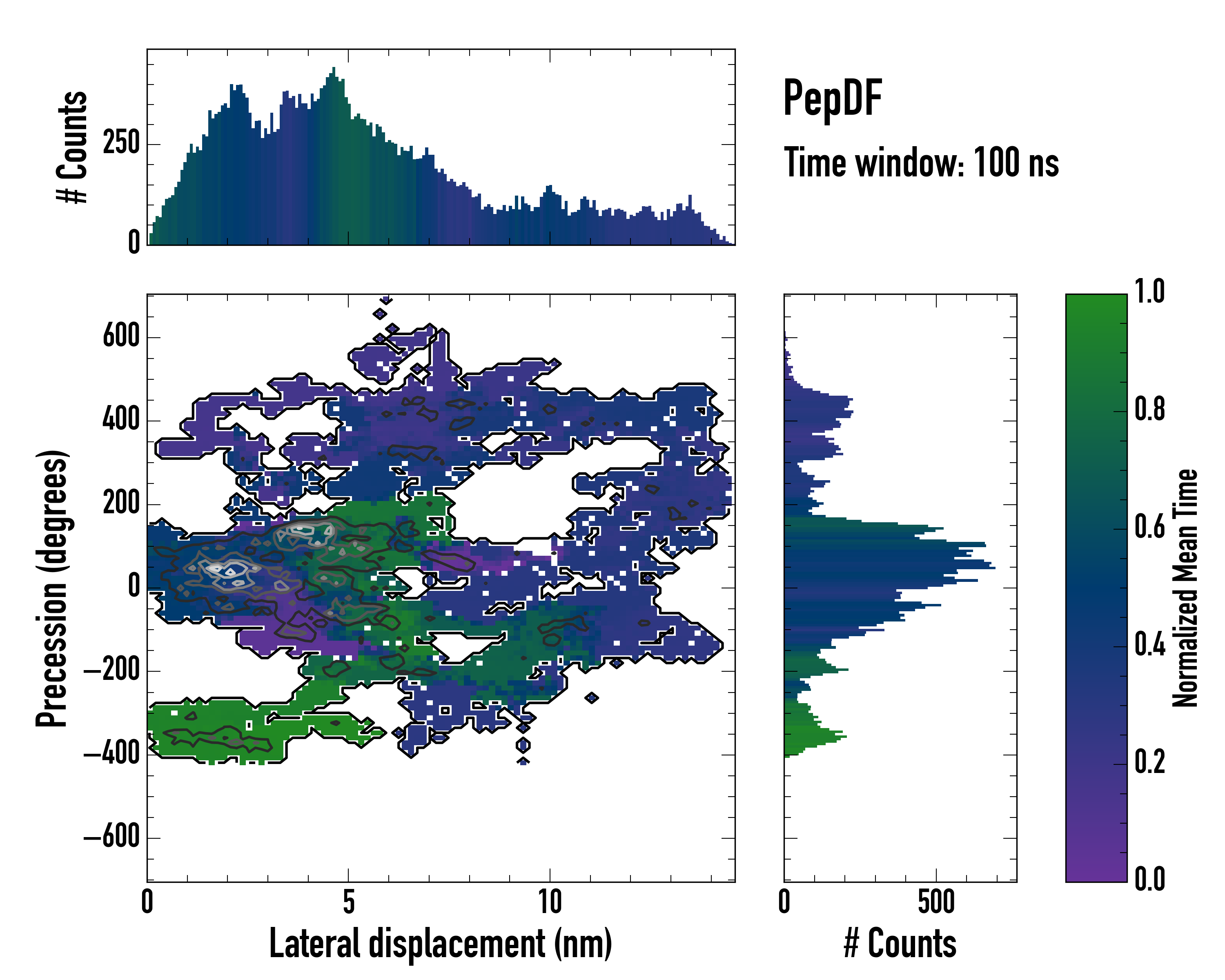

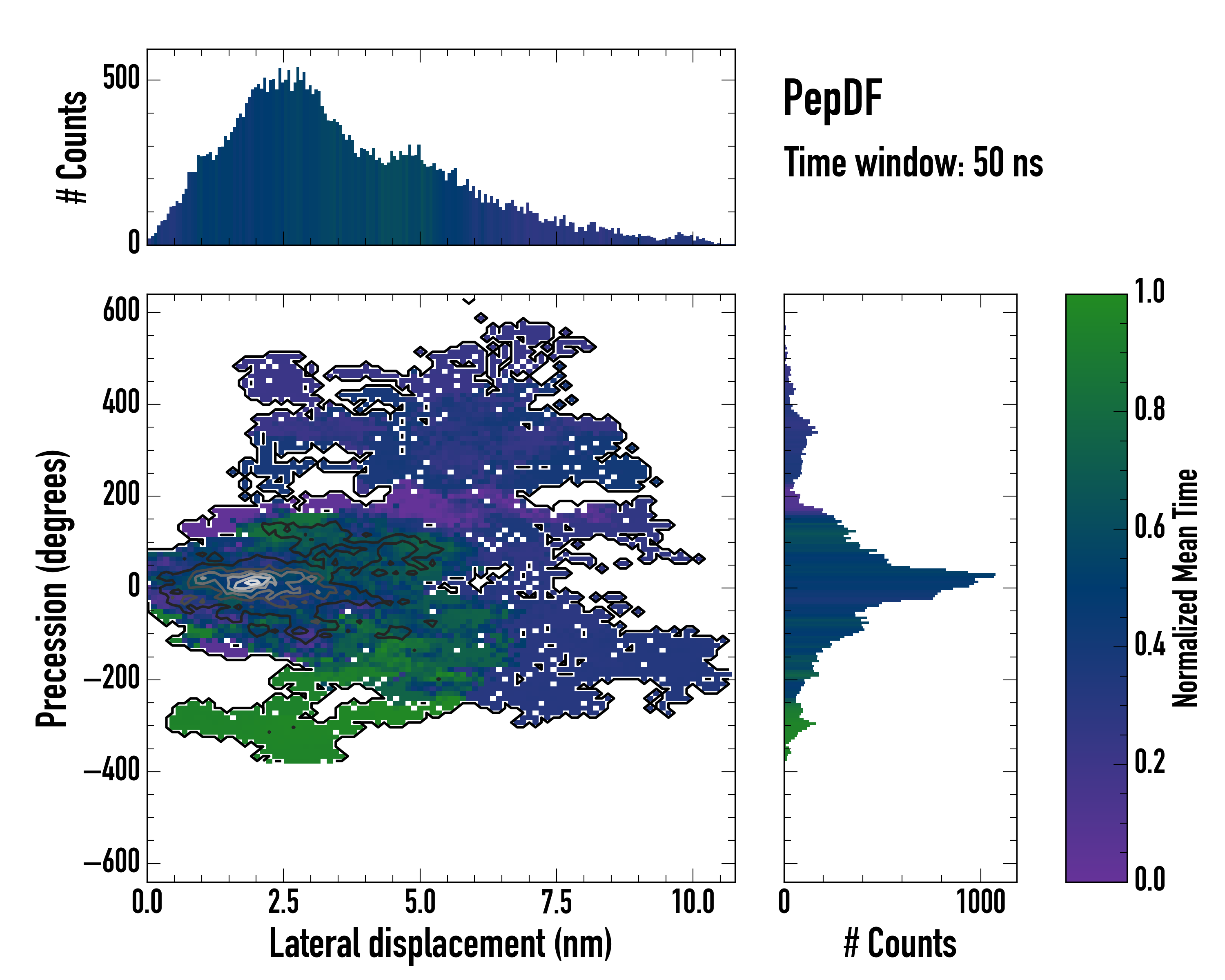

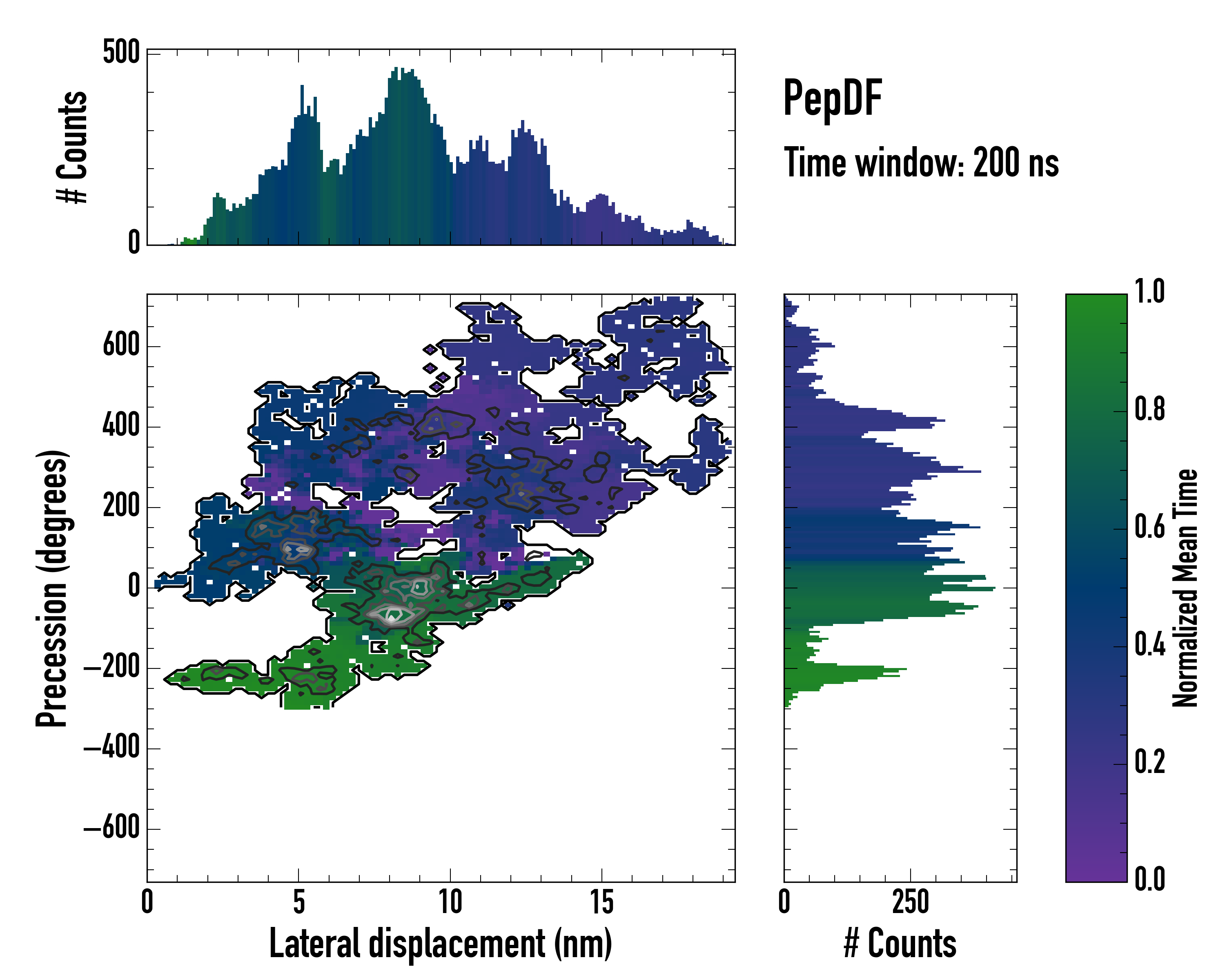

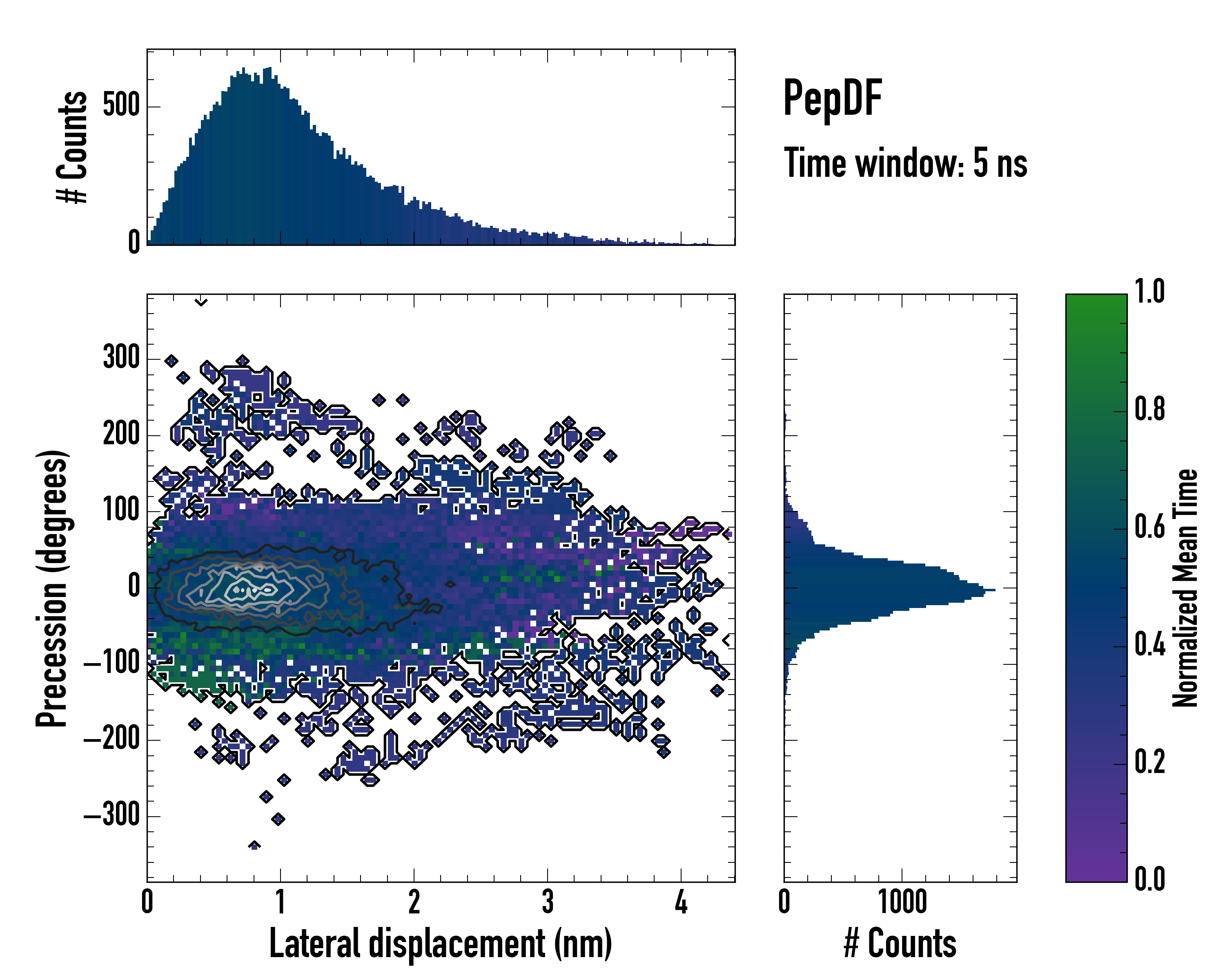

Peptide Displacement Fingerprint
(PepDF)
Lateral displacement vs
Rotational
Displacement along the trajectory, for different time
windows .

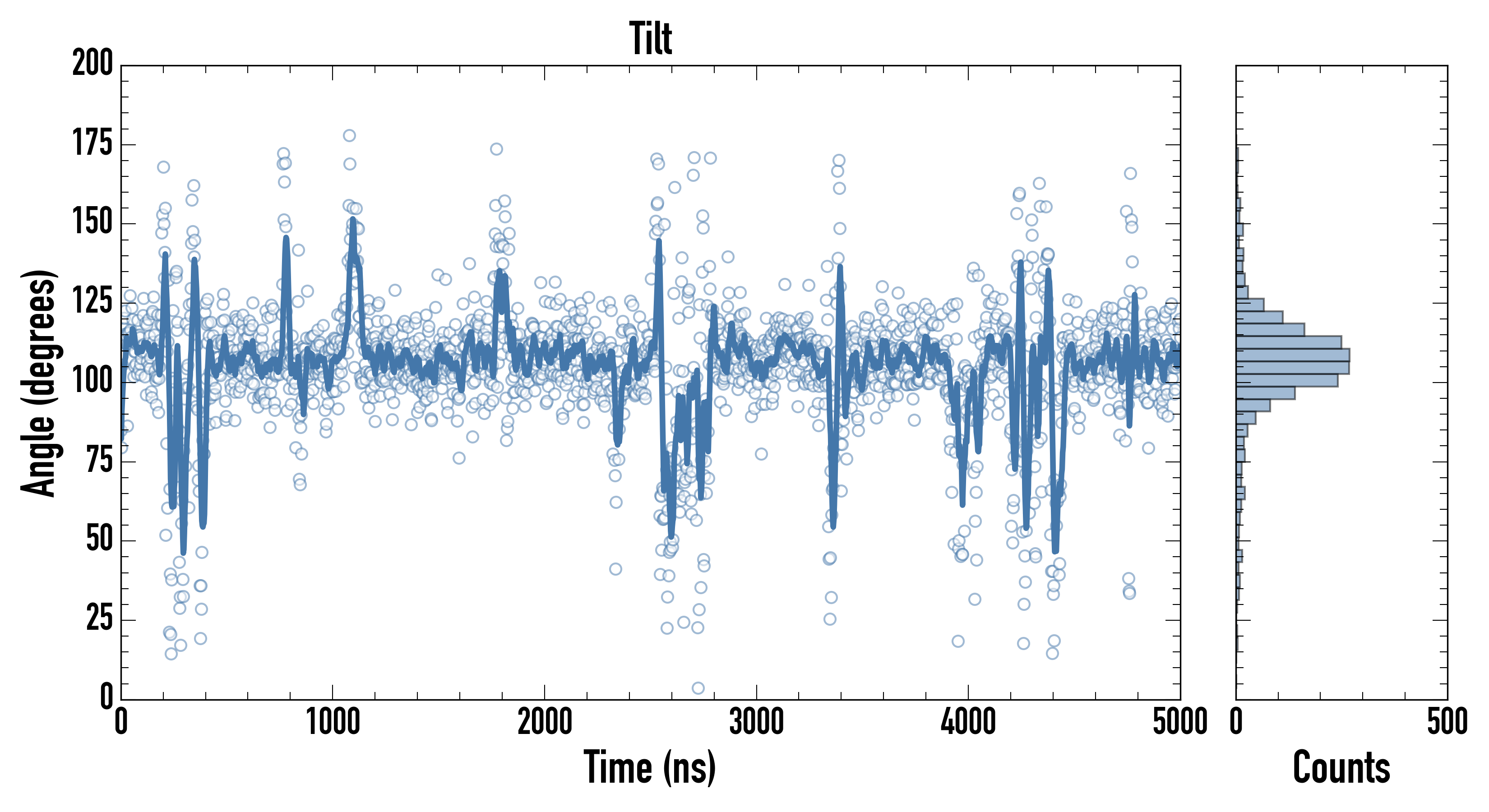

Tilt angle:
Peptide tilt angle evolution, defined as the angle between the peptide helical axis and the bilayer normal .
Peptide spin:
Evolution of the angle formed by the transversal component of the hydrophobic dipolar moment and a vector transversal to the peptide pointing outwards the membrane.
Lipid Analyses:

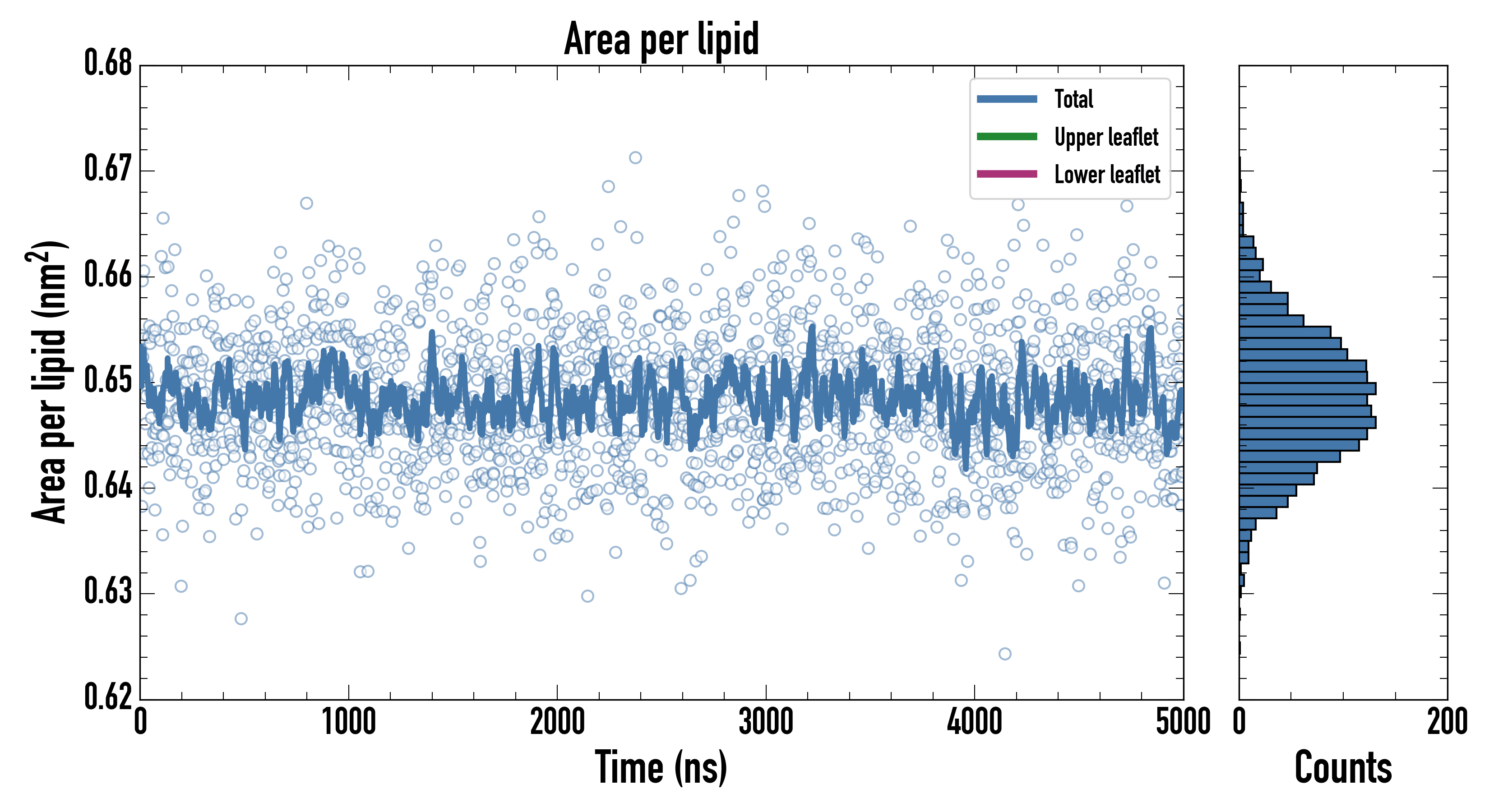

Area per lipid
In this system both leaflets have the same number of lipids, thus the values for their APL are overlaping in the plot
Density maps:
2D-density maps of lipids around the
peptide
along XY and YZ axis, calculated for each lipid type along the
last
microsecond.
Lipid-Peptide Analyses:

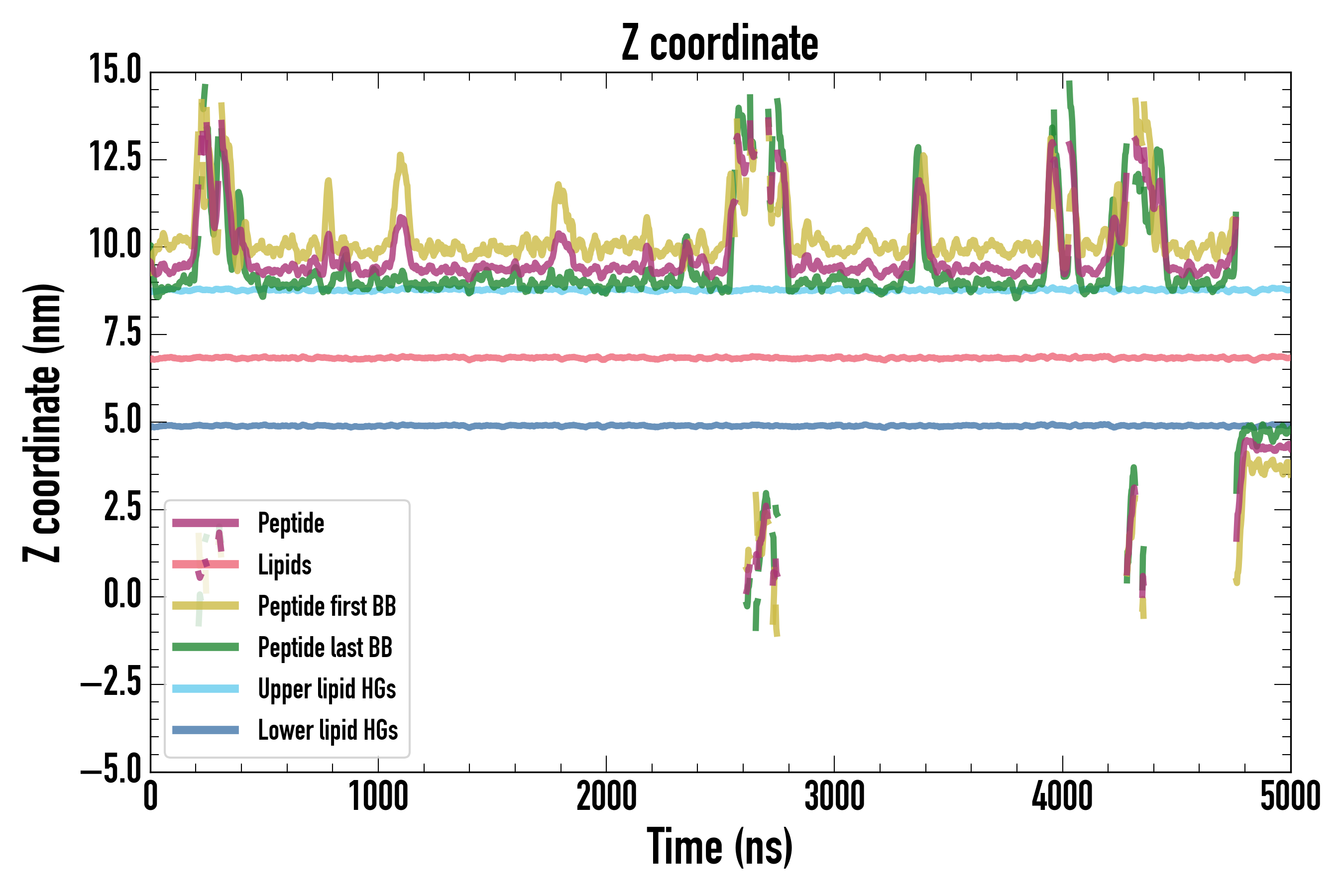

z-Position
Z-coordinate, averaged for
differetn
parts of the the system: peptide, membrane, first and
last
backbone (BB) residues and upper of lower leaflet
lipids’
headgroups (HGs).

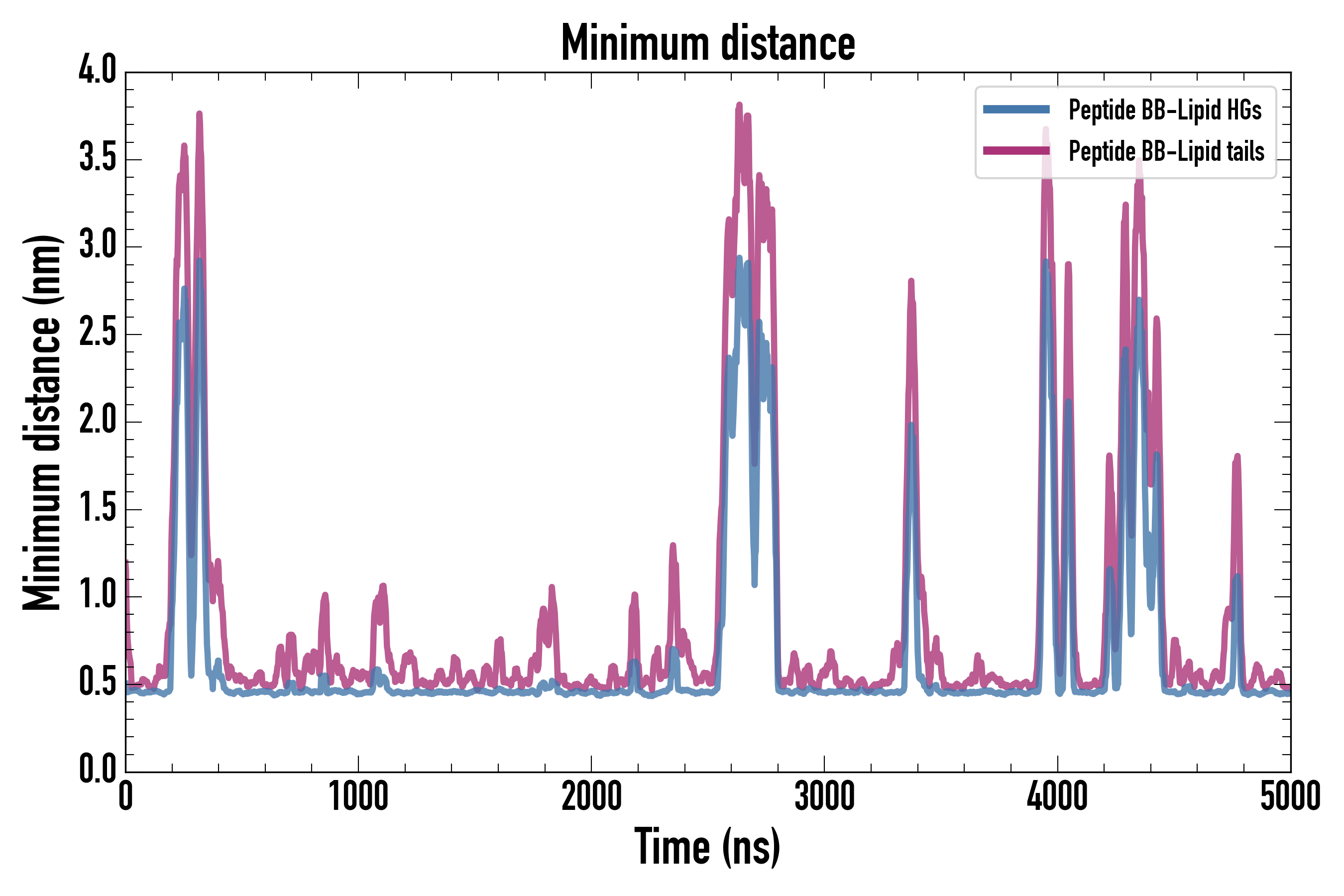

Minimum distance
Minimum distance (nm) between the
peptide backbone and the lipids (headgroups and
tailgroups).

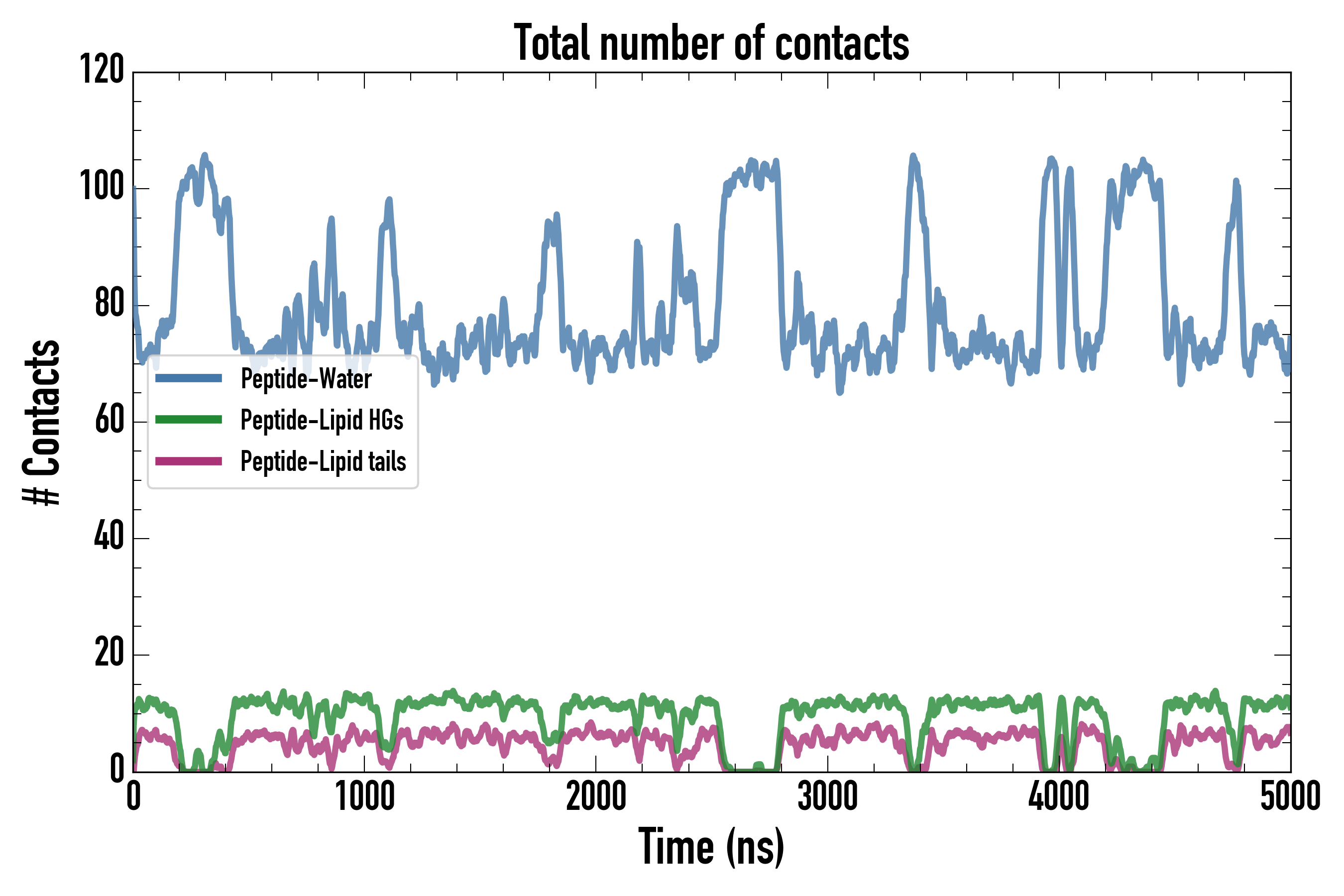

Number of contacts
Number of contacts between the
peptide backbone and the water or the lipids separated
by
lipid headgroups (HG) or lipid tails, using a cut-off of
0.6
nm.
Lateral density
Lateral density for the different
components of the system: headgroups, tail groups,
peptide
and water.
