Trajectory SP1324
Force field:
martini_v3
Simulation length (ns): 5000
Electric field (kJ mol-1 nm-1 e-1): 0
Temperature (K): 300 (v-rescale)
Pressure (bar): 1 (Parrinello-rahman semiisotropic)
Number of particles: 19207
Time step (fs) : 25
Software: GROMACS 2021.5
Simulation length (ns): 5000
Electric field (kJ mol-1 nm-1 e-1): 0
Temperature (K): 300 (v-rescale)
Pressure (bar): 1 (Parrinello-rahman semiisotropic)
Number of particles: 19207
Time step (fs) : 25
Software: GROMACS 2021.5
Supercomputer:
Finisterrae III CESGA
Peptides: P451 AP03488
Lipids: POPC
Heteromolecules:
Ions: CL
Water model: W
Peptides: P451 AP03488
Lipids: POPC
Heteromolecules:
Ions: CL
Water model: W
Sequence :
LWENFKNAGKKFILNILDKIRCRVAGGCRT
Total charge (e): +5
Number of residues: 30
By amino acid: Basic: 7 Acidic: 2 Hydrophobic: 15 Polar: 6 Electrostatic Dipolar Moment (e nm): 2.27
Longitudinal (e nm): 2.24 Transversal (e nm): 0.37 Hydrophobic Dipolar Moment (nm): 4.11
Longitudinal (nm): 3.89 Transversal (nm): 1.32 Secondary structure: Helix
Activity:
Download Files
ITP file. JSON file. PDB file.
Click on any component to highlight it from the plot.
Upper leaflet
Lower leaflet
Lipids
Membrane model for: POPC (Healthy mammal)
POPC
2-oleoyl-sn-glycero-3-phosphocholine
Total charge (e): 0
See POPC lipid
Download ITP File. Download PDB File.
Last snapshot

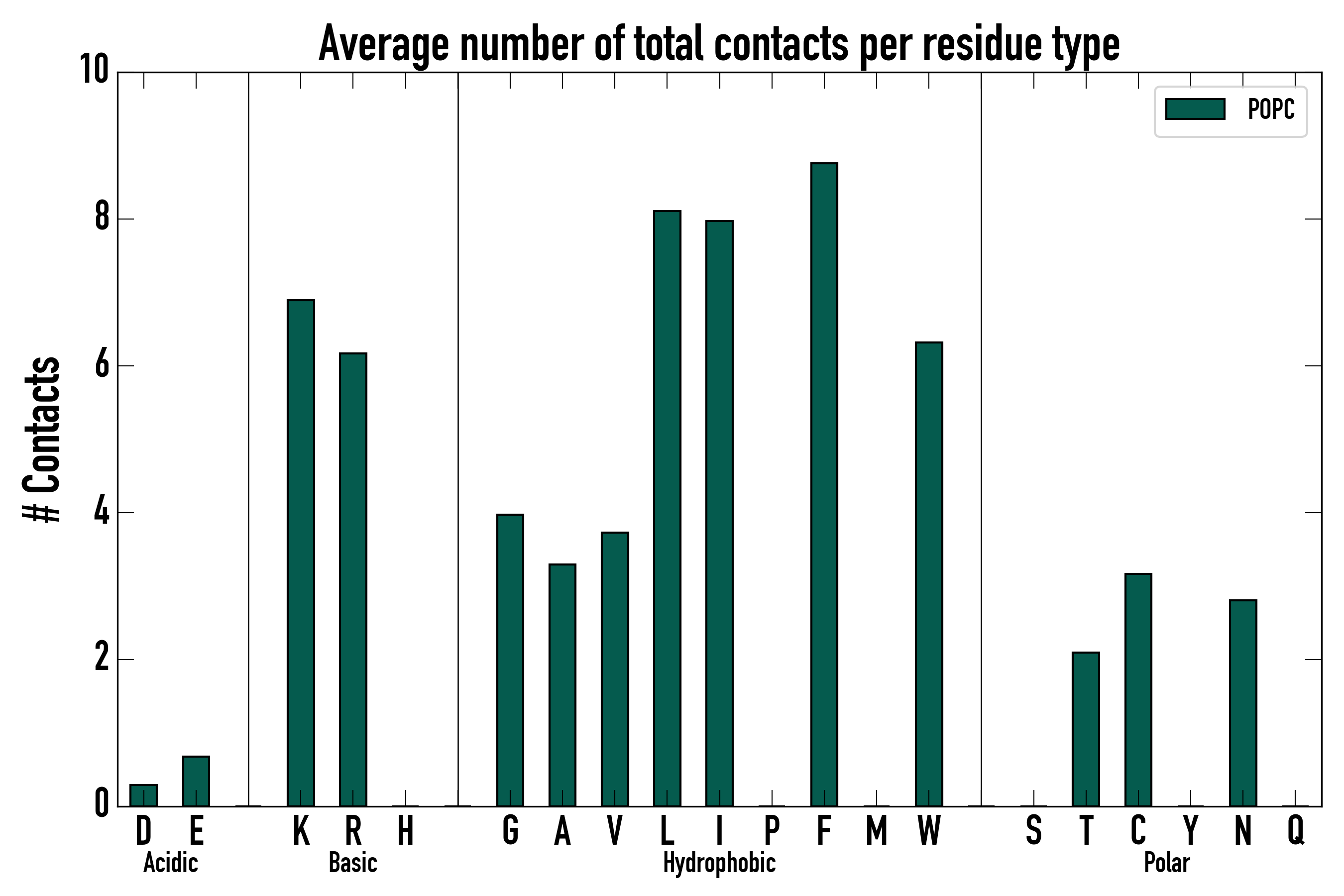

Total contacts per residue
Number of total contacts per residue type:
Number of contacts between each residue of the peptide backbone and the different lipid types, averaged over the last microsecond and using a cut-off of 0.6 nm.
Contacts per residue
(normalized by total number of beads of the amino acid):
Number of contacts between each residue of the peptide backbone and the different lipid types, averaged over the last microsecond and using a cut-off of 0.6 nm.
Molecular Dynamics based descriptors
Average and standard deviation,
calculated using the autocorrelation function (for time
series)
or the width of the distribution, for the last microsecond
of
the trajectory
Area per lipid
Membrane (nm2): 0.65002200 ± 0.00126652
Upper leaflet (nm2): 0.65002200 ± 0.00126652
Lower leaflet (nm2): 0.65002200 ± 0.00126652
Average Z coordinate
Peptide (nm): 4.6149200 ± 0.0364087
First Residue (nm): 4.8292000 ± 0.0400345
Last Residue (nm): 4.2779200 ± 0.0585098
Membrane (nm): 6.8120000 ± 0.0132275
Upper leaflet Head Group (nm): 8.7498900 ± 0.0156048
Lower leaflet Head Group (nm): 4.8738900 ± 0.0109286
Bilayer Thickness (nm): 3.876000 ± 0.019051
Peptide insertion (nm): 0.2589700 ± 0.0380135
Contacts
Peptide - Water: 63.2375 ± 1.2726
Peptide - Head groups: 14.90750 ± 0.31735
Peptide - Tail groups: 12.645000 ± 0.327181
Tilt (°): 85.005100 ± 0.903491
Membrane (nm2): 0.65002200 ± 0.00126652
Upper leaflet (nm2): 0.65002200 ± 0.00126652
Lower leaflet (nm2): 0.65002200 ± 0.00126652
Average Z coordinate
Peptide (nm): 4.6149200 ± 0.0364087
First Residue (nm): 4.8292000 ± 0.0400345
Last Residue (nm): 4.2779200 ± 0.0585098
Membrane (nm): 6.8120000 ± 0.0132275
Upper leaflet Head Group (nm): 8.7498900 ± 0.0156048
Lower leaflet Head Group (nm): 4.8738900 ± 0.0109286
Bilayer Thickness (nm): 3.876000 ± 0.019051
Peptide insertion (nm): 0.2589700 ± 0.0380135
Contacts
Peptide - Water: 63.2375 ± 1.2726
Peptide - Head groups: 14.90750 ± 0.31735
Peptide - Tail groups: 12.645000 ± 0.327181
Tilt (°): 85.005100 ± 0.903491
PepDF:
5(ns): CVS
Displacement (nm): 0.7208470 ± 0.0289978
Precession(°): 0.340795 ± 1.632820
50(ns) CVS
Displacement (nm): 2.094790 ± 0.105027
Precession(°): 3.77569 ± 4.92327
100(ns) CVS
Displacement(nm): 2.899870 ± 0.135521
Precession(°): 4.61225 ± 7.01980
200(ns) CVS
Displacement(nm): 4.066230 ± 0.195242
Precession(°): -8.85567 ± 11.12720
Download JSON File.
5(ns): CVS
Displacement (nm): 0.7208470 ± 0.0289978
Precession(°): 0.340795 ± 1.632820
50(ns) CVS
Displacement (nm): 2.094790 ± 0.105027
Precession(°): 3.77569 ± 4.92327
100(ns) CVS
Displacement(nm): 2.899870 ± 0.135521
Precession(°): 4.61225 ± 7.01980
200(ns) CVS
Displacement(nm): 4.066230 ± 0.195242
Precession(°): -8.85567 ± 11.12720
Download JSON File.
Peptide Analyses

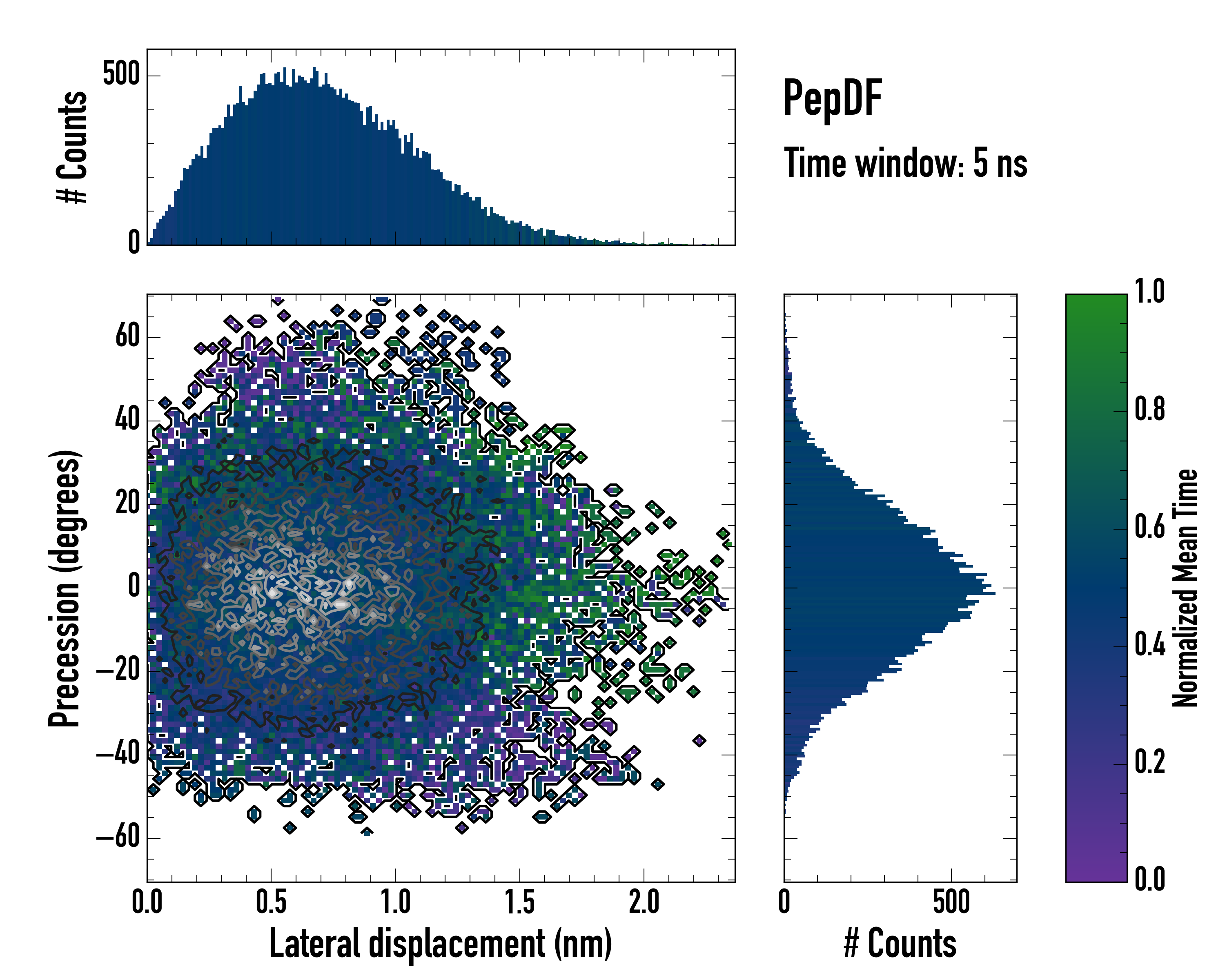

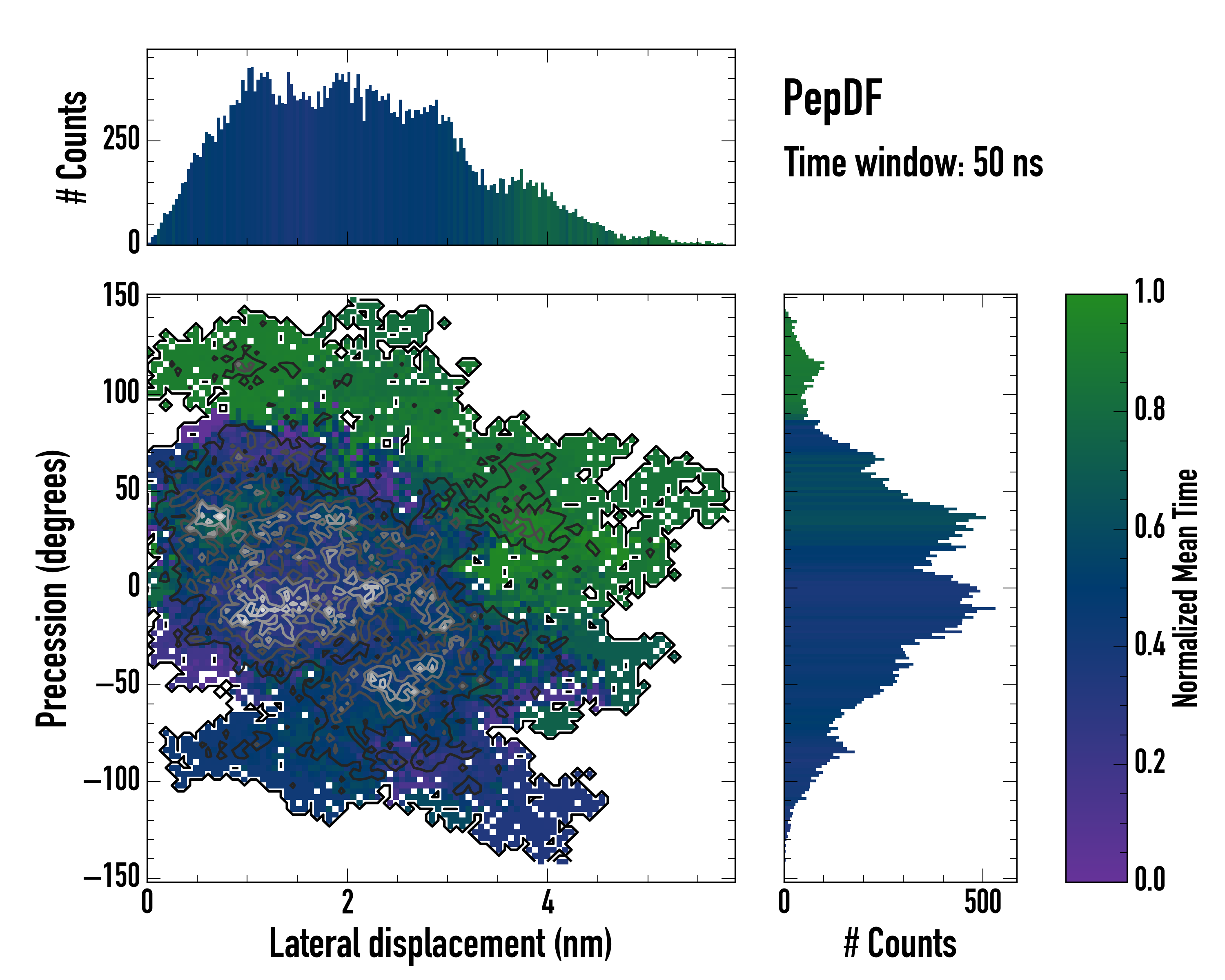

Peptide Displacement Fingerprint
(PepDF)
Lateral displacement vs
Rotational
Displacement along the trajectory, for different time
windows .

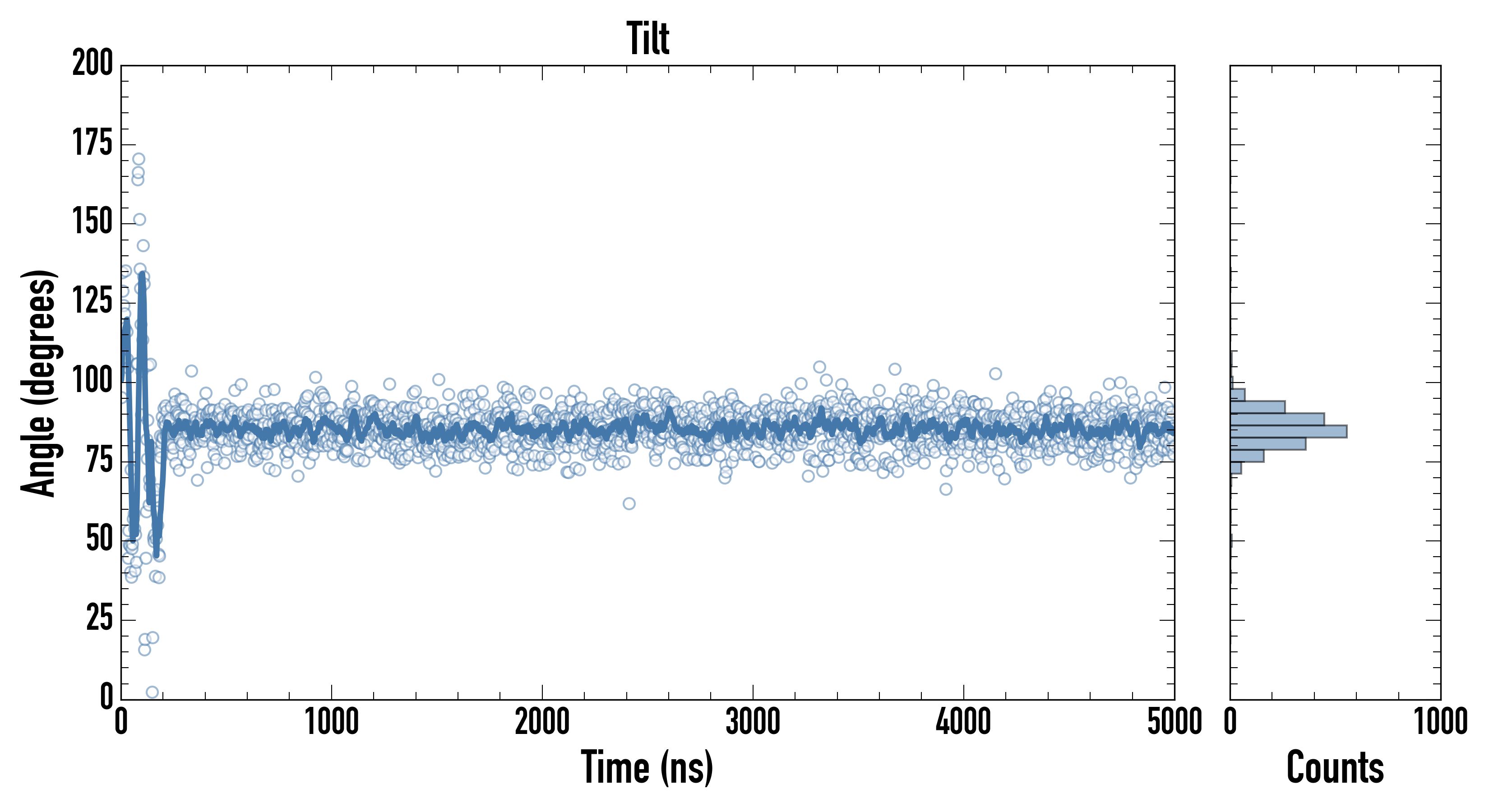

Tilt angle:
Peptide tilt angle evolution, defined as the angle between the peptide helical axis and the bilayer normal .
Peptide spin:
Evolution of the angle formed by the transversal component of the hydrophobic dipolar moment and a vector transversal to the peptide pointing outwards the membrane.
Lipid Analyses:

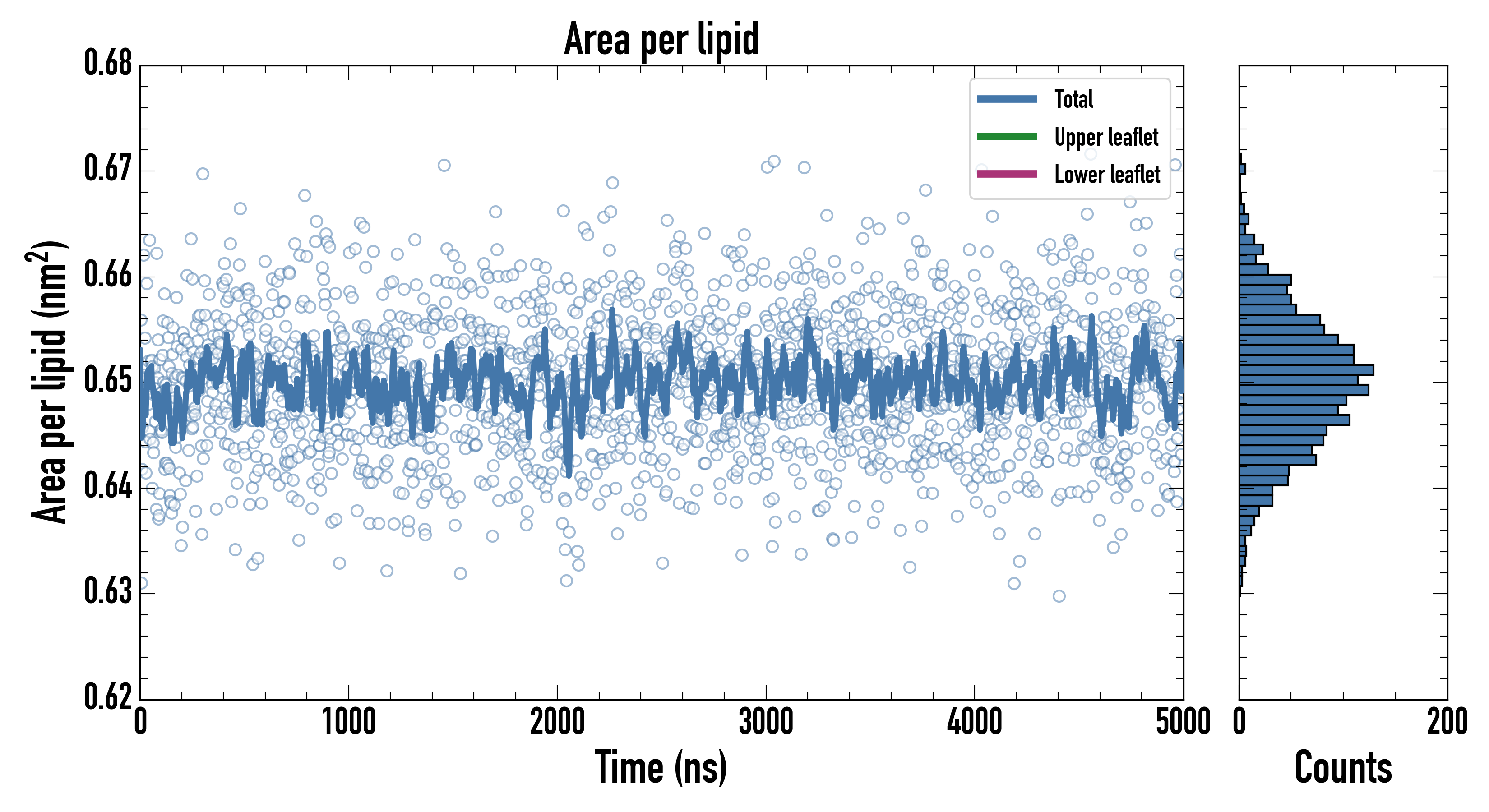

Area per lipid
In this system both leaflets have the same number of lipids, thus the values for their APL are overlaping in the plot

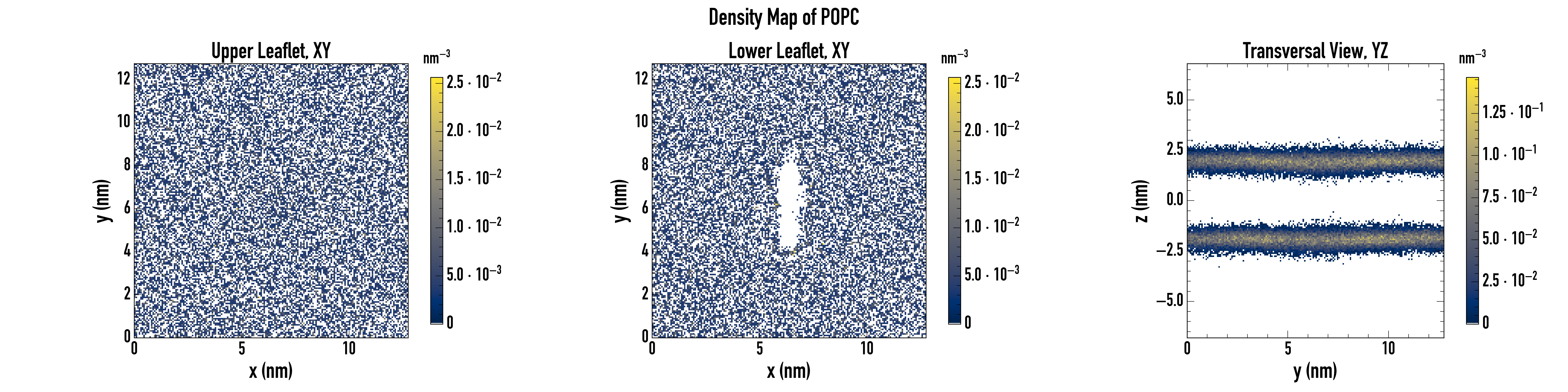

Density maps:
2D-density maps of lipids around the
peptide
along XY and YZ axis, calculated for each lipid type along the
last
microsecond.
Lipid-Peptide Analyses:

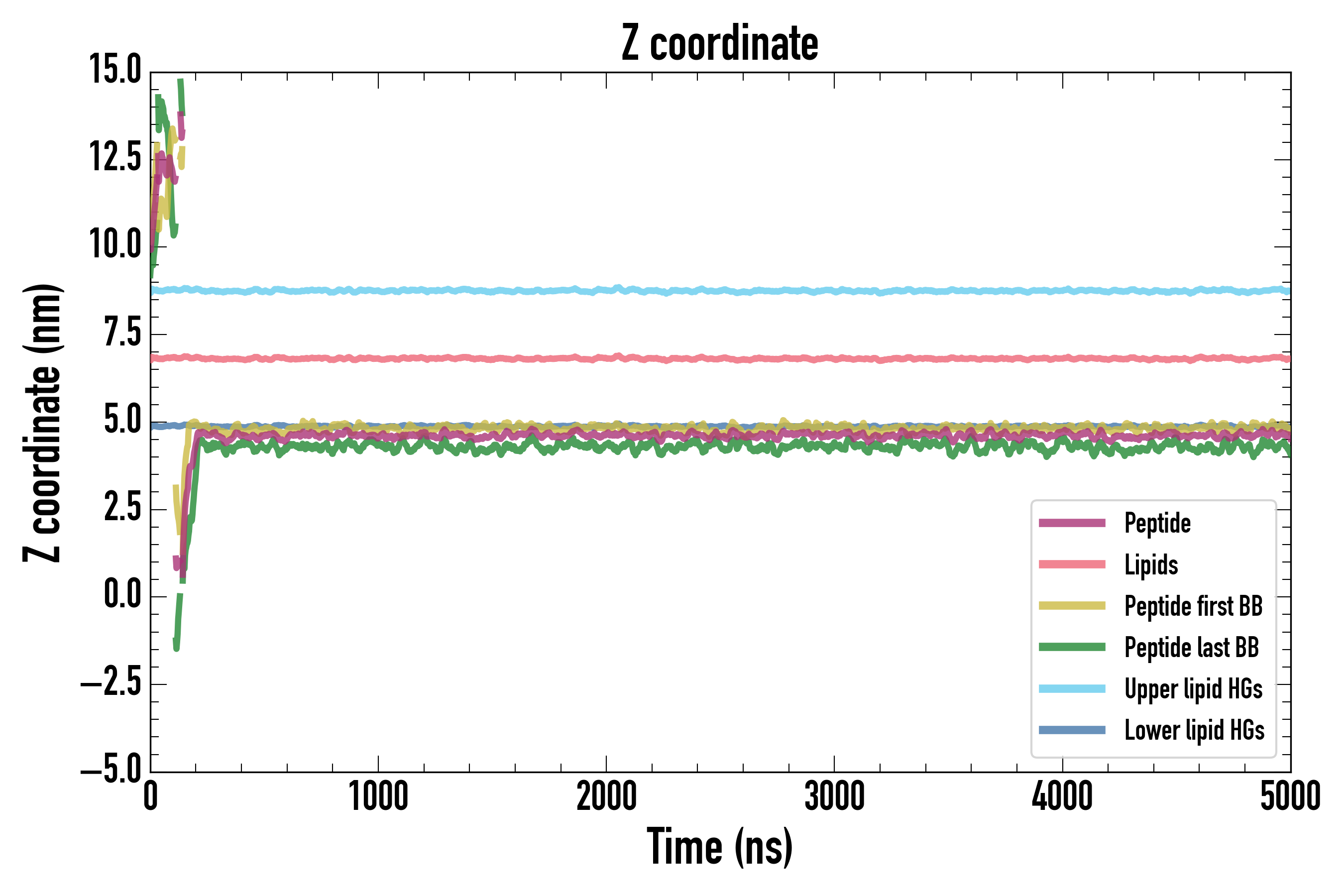

z-Position
Z-coordinate, averaged for
differetn
parts of the the system: peptide, membrane, first and
last
backbone (BB) residues and upper of lower leaflet
lipids’
headgroups (HGs).
Minimum distance
Minimum distance (nm) between the
peptide backbone and the lipids (headgroups and
tailgroups).

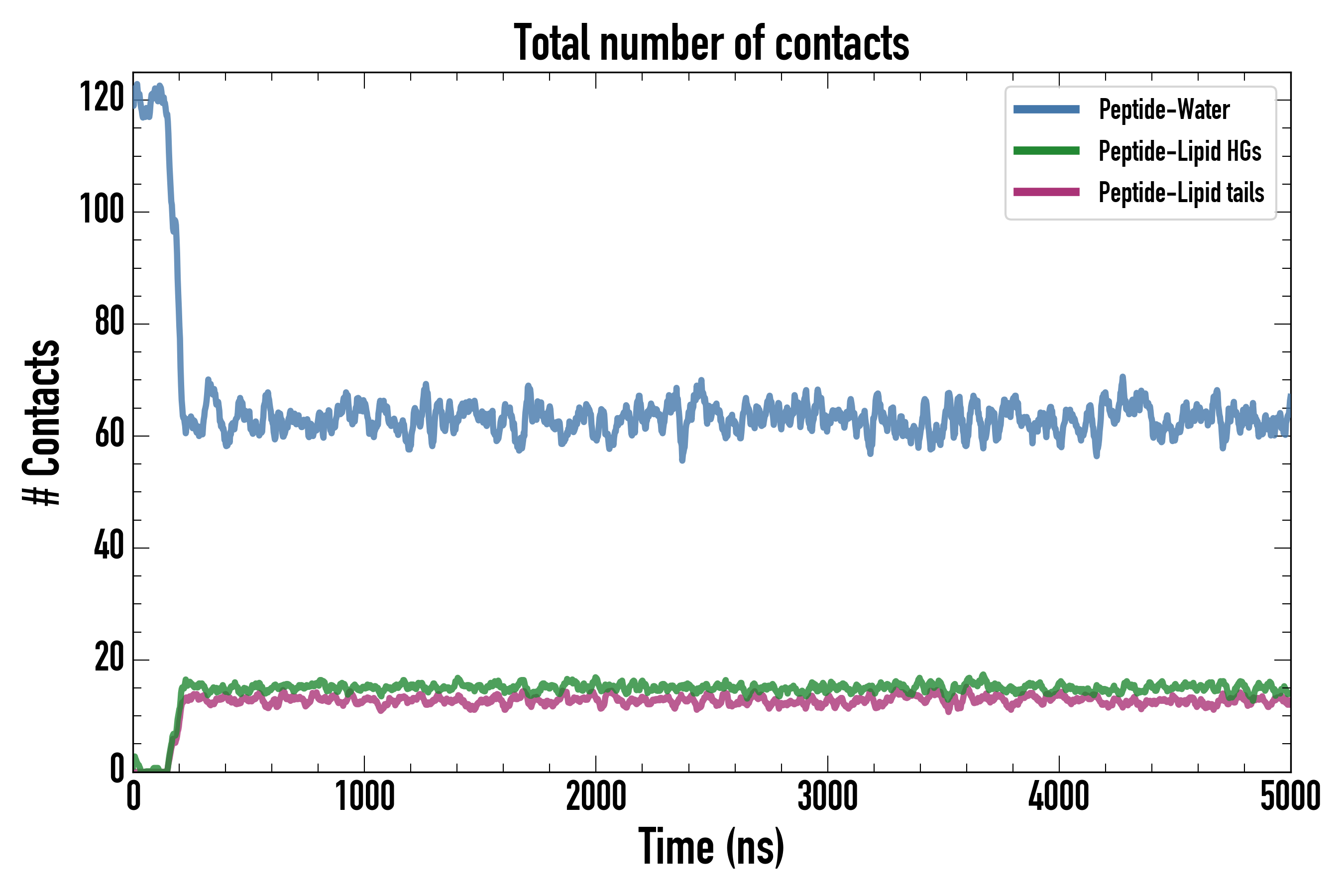

Number of contacts
Number of contacts between the
peptide backbone and the water or the lipids separated
by
lipid headgroups (HG) or lipid tails, using a cut-off of
0.6
nm.
Lateral density
Lateral density for the different
components of the system: headgroups, tail groups,
peptide
and water.
