Trajectory SP1244

Force field: martini_v3
Simulation length (ns): 5000
Electric field (kJ mol-1 nm-1 e-1): 0
Temperature (K): 300 (v-rescale)
Pressure (bar): 1 (Parrinello-rahman semiisotropic)
Number of particles: 19211
Time step (fs) : 25
Software: GROMACS 2021.5
Supercomputer: Finisterrae III CESGA
Peptides: P411 AP01445
Lipids: POPC
Heteromolecules:
Ions: CL
Water model: W

  Download all Compresed Files.


Sequence :
MGSALRIAAKVLPAALCQIFKKC
Total charge (e): +4
Number of residues: 23
By amino acid:
  Basic: 4
  Acidic: 0
  Hydrophobic: 15
  Polar: 4

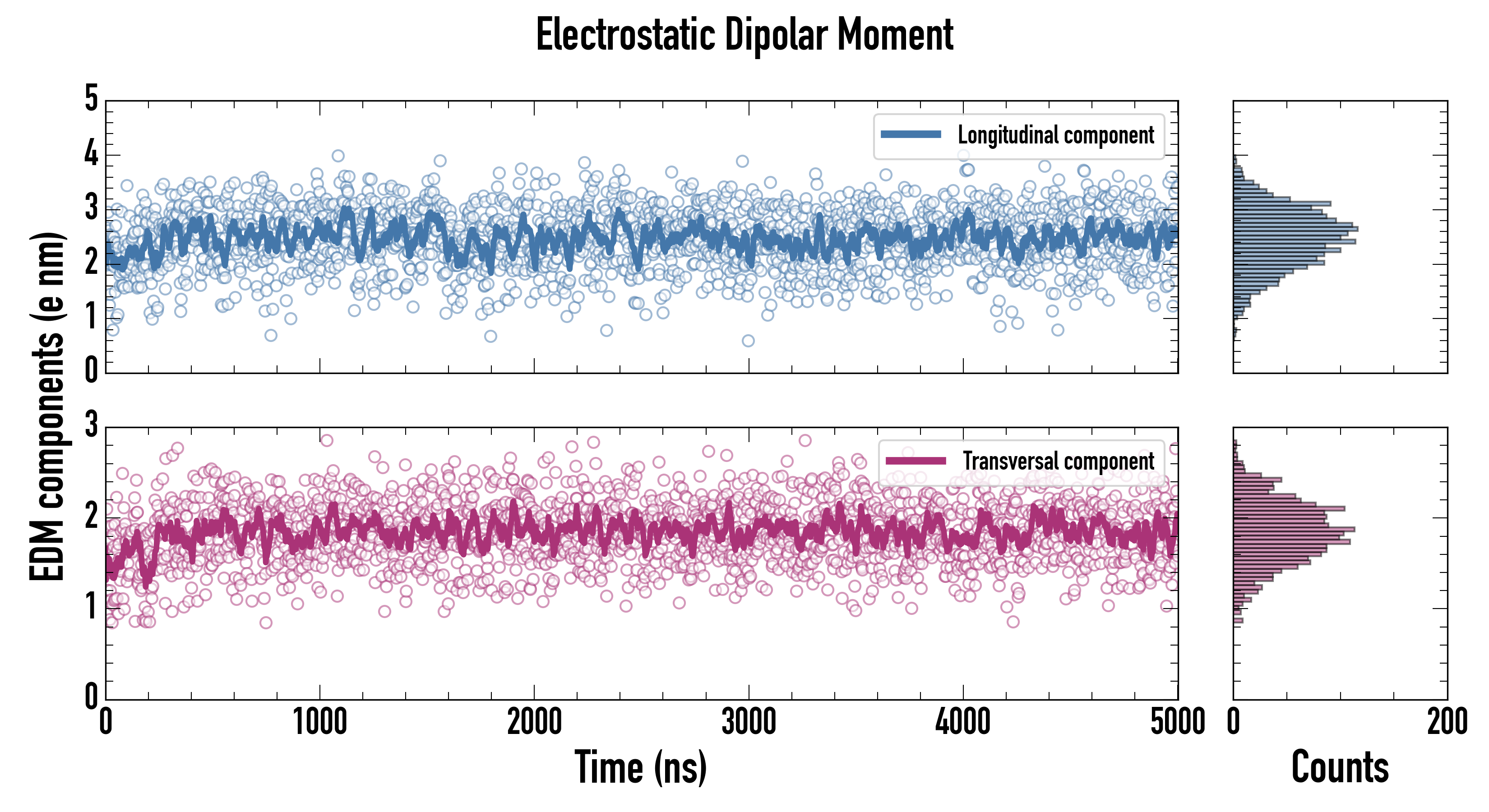

Electrostatic Dipolar Moment (e nm): 3.59
Longitudinal (e nm): 3.45
Transversal (e nm): 1
Hydrophobic Dipolar Moment (nm): 1.68
Longitudinal (nm): 1.37
Transversal (nm): 0.96
Secondary structure: Helix
Activity:

Download Files
  ITP file.
  JSON file.
  PDB file.

Click on any component to highlight it from the plot.
Upper leaflet
Lower leaflet

Lipids


Membrane model for: POPC (Healthy mammal)

POPC
2-oleoyl-sn-glycero-3-phosphocholine
Total charge (e): 0

  See POPC lipid
  Download ITP File.
  Download PDB File.
Last snapshot
  Download PDB File.

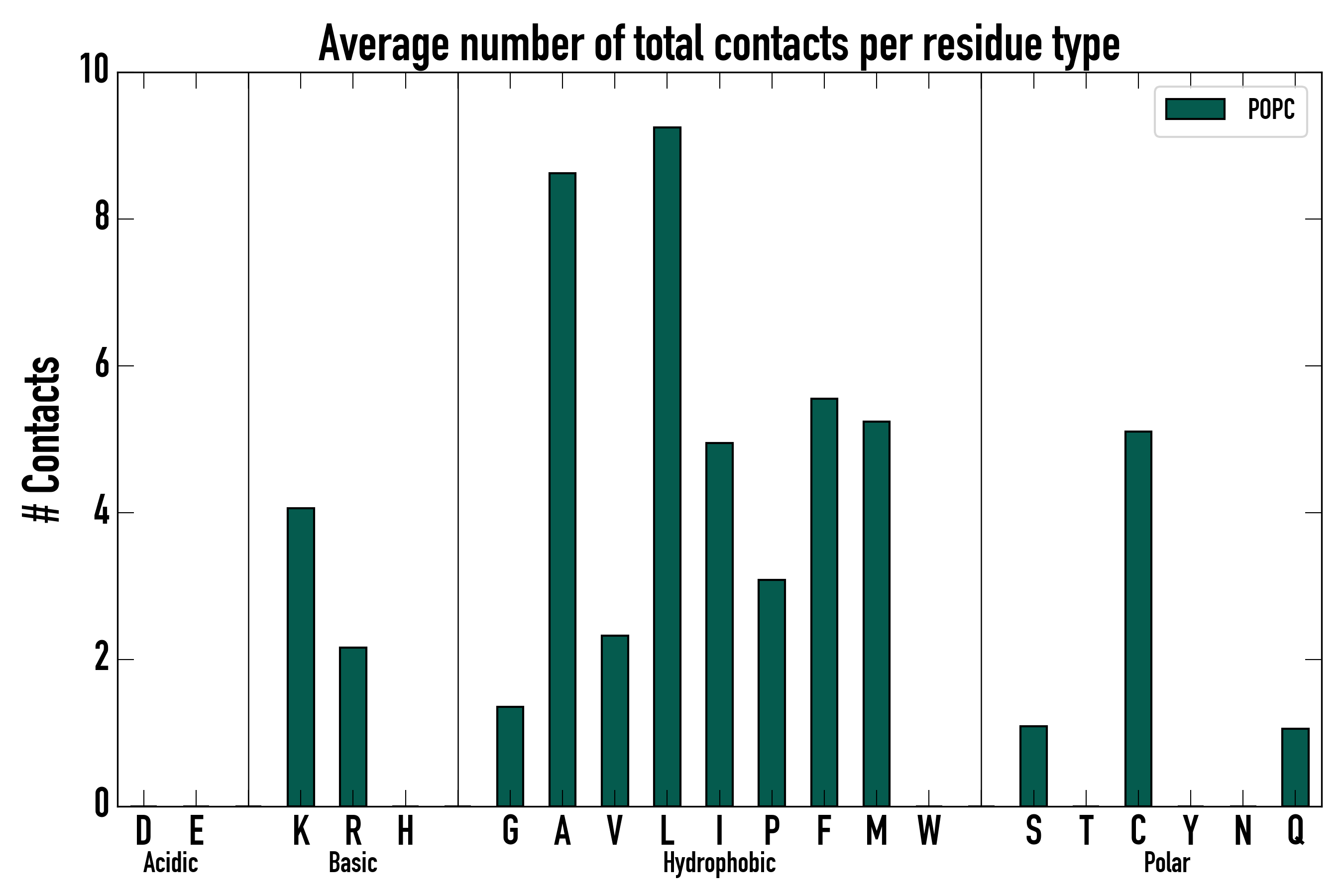

Total contacts per residue

  Download PDB File.

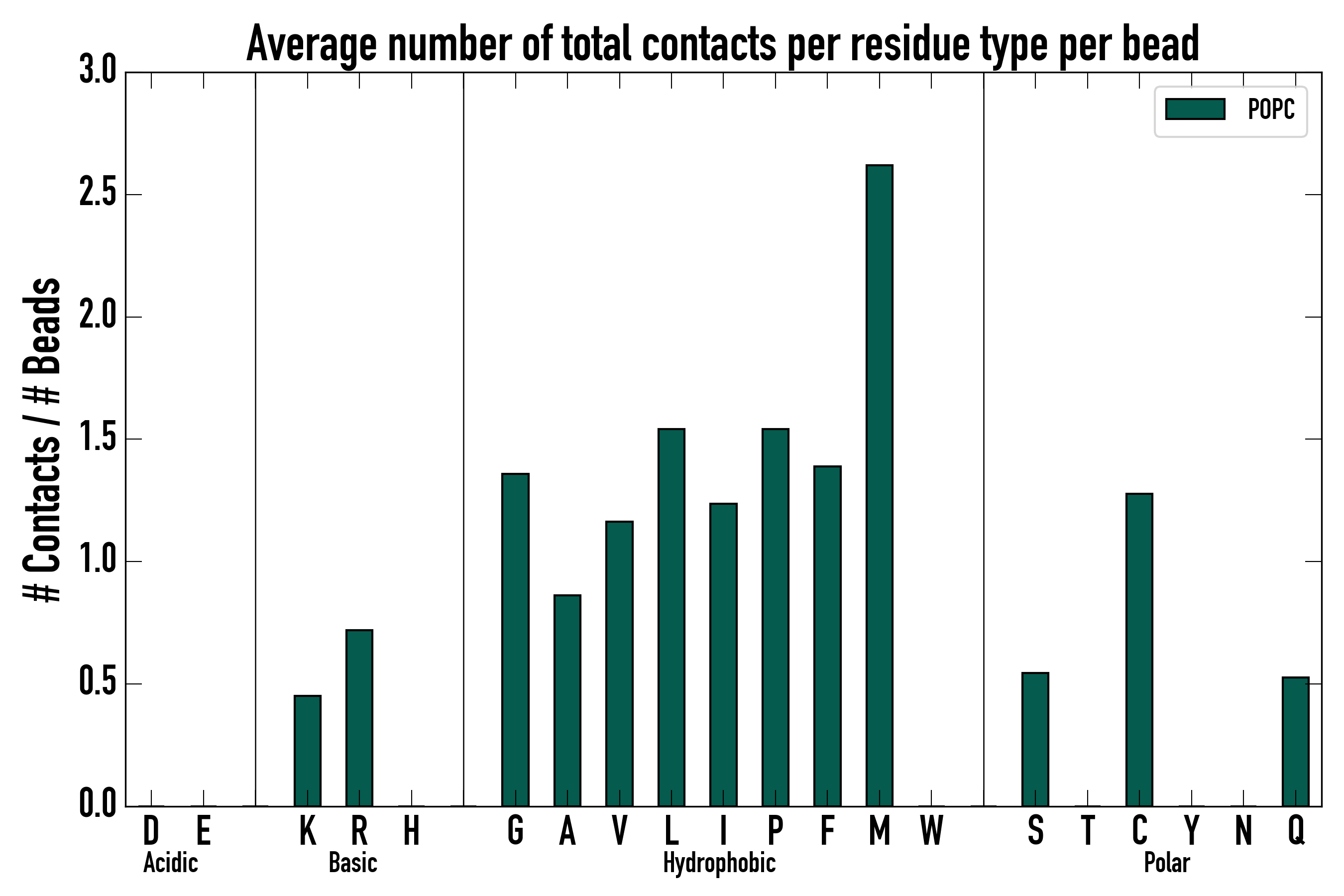

Contacts per residue
(normalized by number of beads in the residue)
  Download PDB File.

Molecular Dynamics based descriptors
Average and standard deviation, calculated using the autocorrelation function (for time series) or the width of the distribution, for the last microsecond of the trajectory

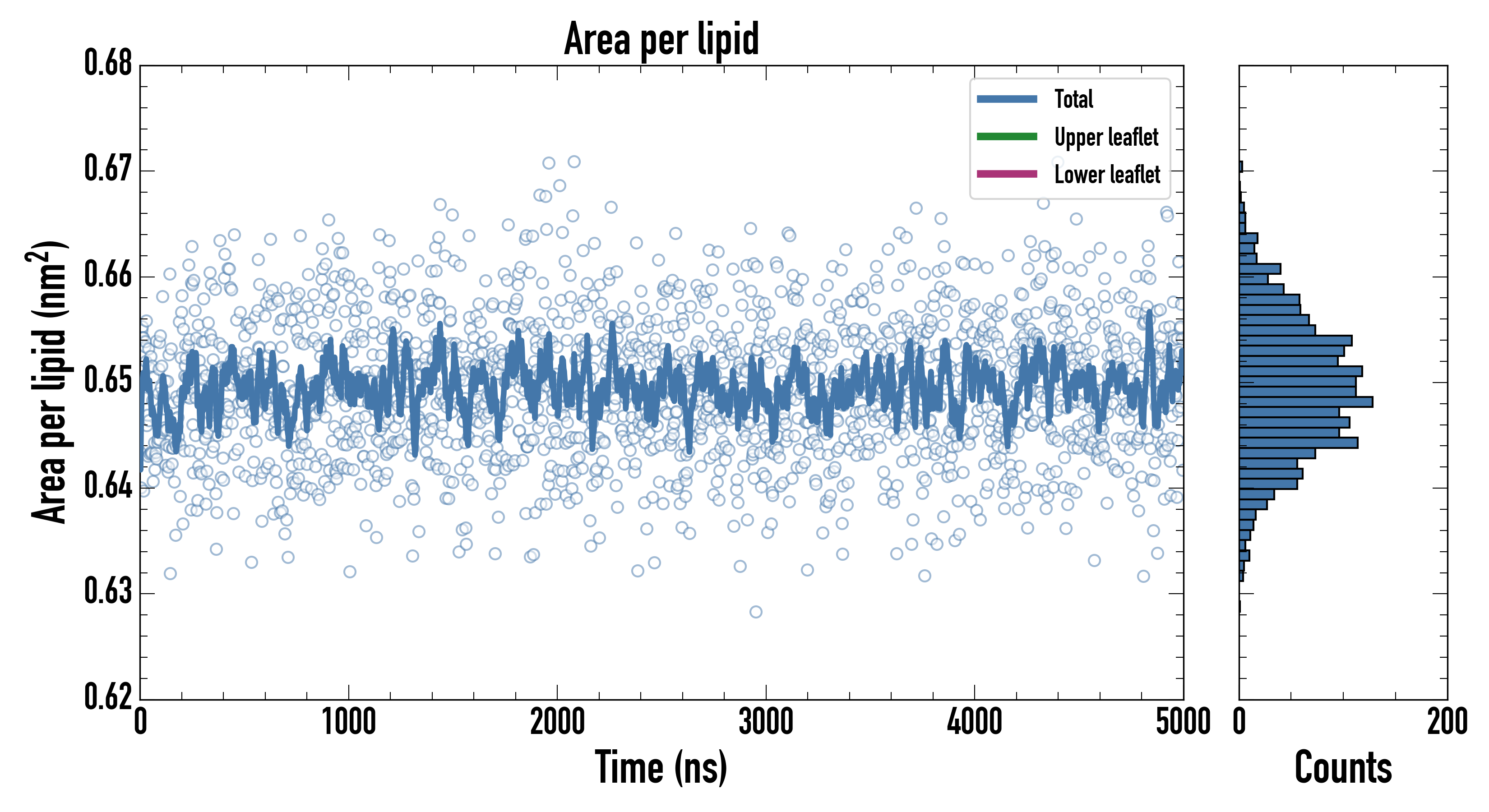

Area per lipid
Membrane (nm2): 0.6498830 ± 0.0010627
Upper leaflet (nm2): 0.6498830 ± 0.0010627
Lower leaflet (nm2): 0.6498830 ± 0.0010627
Average Z coordinate
Peptide (nm): 8.9190400 ± 0.0411097
First Residue (nm): 8.7669000 ± 0.0506812
Last Residue (nm): 8.9382300 ± 0.0560686
Membrane (nm): 6.8202200 ± 0.0108821
Upper leaflet Head Group (nm): 8.7592600 ± 0.0129251
Lower leaflet Head Group (nm): 4.88180000 ± 0.00887038
Bilayer Thickness (nm): 3.8774600 ± 0.0156762
Peptide insertion (nm): 0.1597760 ± 0.0430937
Contacts
Peptide - Water: 43.422500 ± 0.891284
Peptide - Head groups: 11.95250 ± 0.25869
Peptide - Tail groups: 10.670000 ± 0.279955

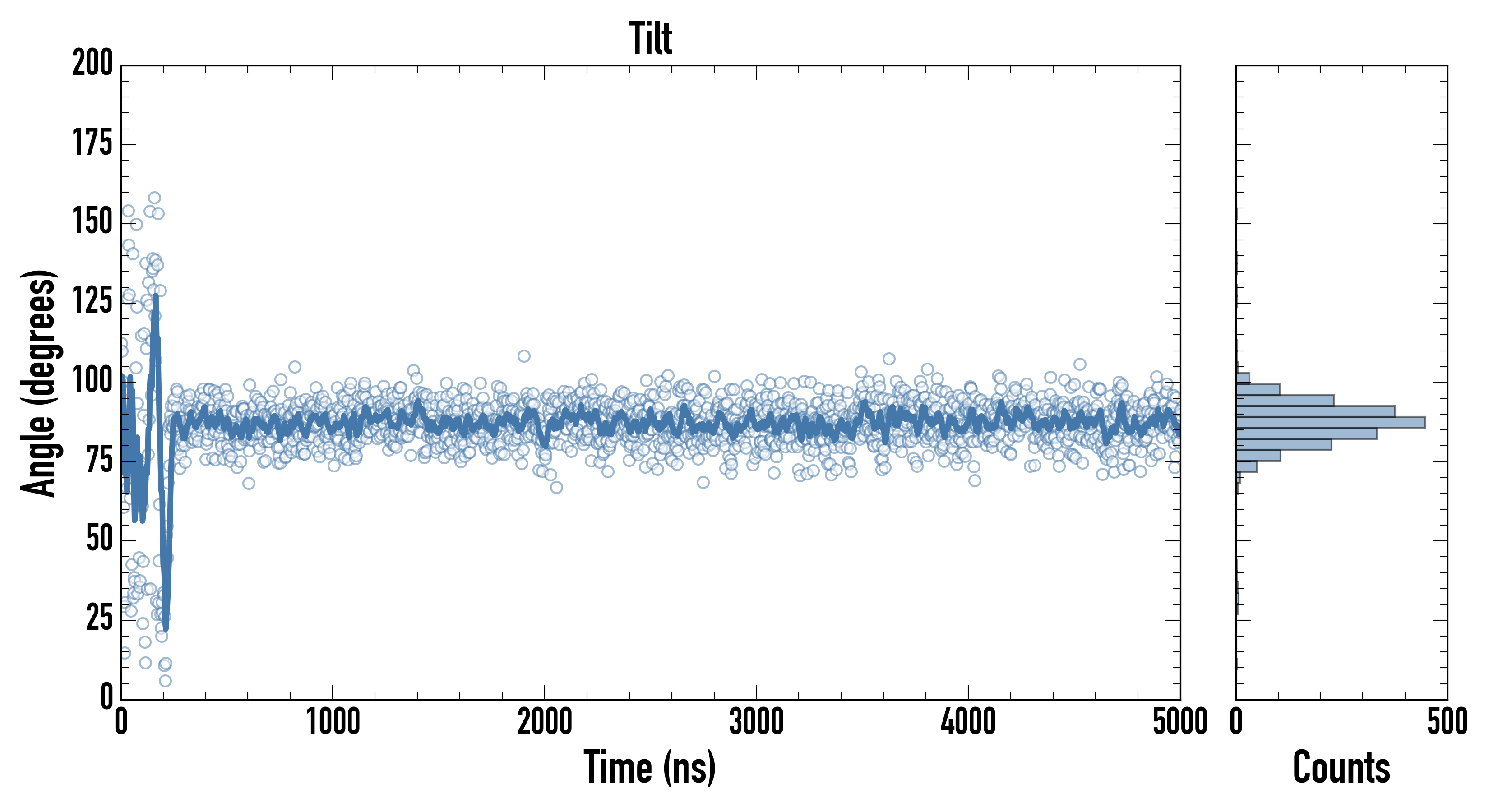

Tilt (°): 87.64190 ± 1.05919
PepDF:
5(ns):  CVS
Displacement (nm): 0.7951860 ± 0.0348272
Precession(°): -1.30827 ± 1.83798
50(ns)  CVS
Displacement (nm): 2.511320 ± 0.120341
Precession(°): -14.46490 ± 4.45629
100(ns)  CVS
Displacement(nm): 3.936360 ± 0.194822
Precession(°): -27.48230 ± 5.96107
200(ns)  CVS
Displacement(nm): 6.133740 ± 0.293767
Precession(°): -47.35930 ± 4.85774

  Download JSON File.

Peptide Analyses

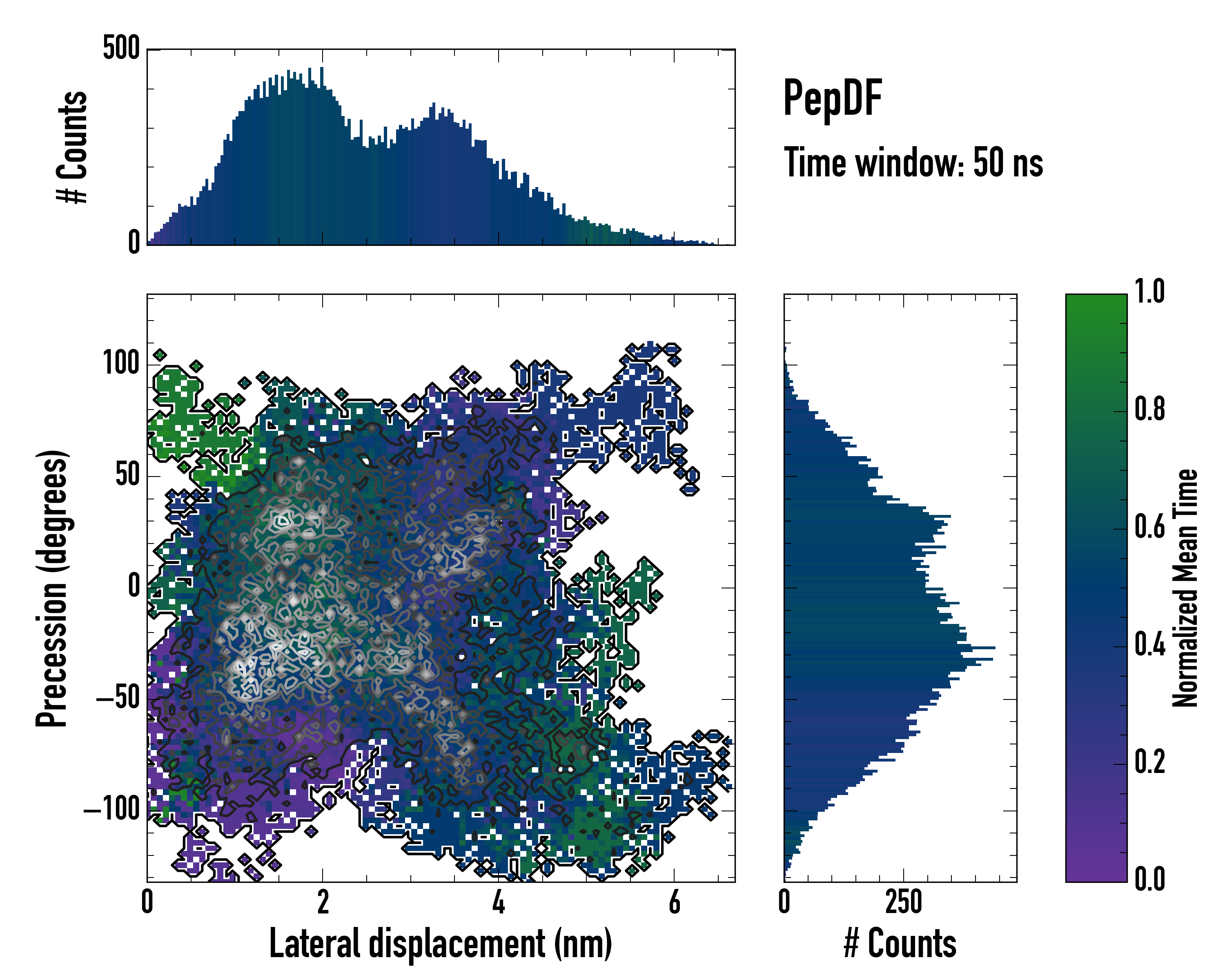

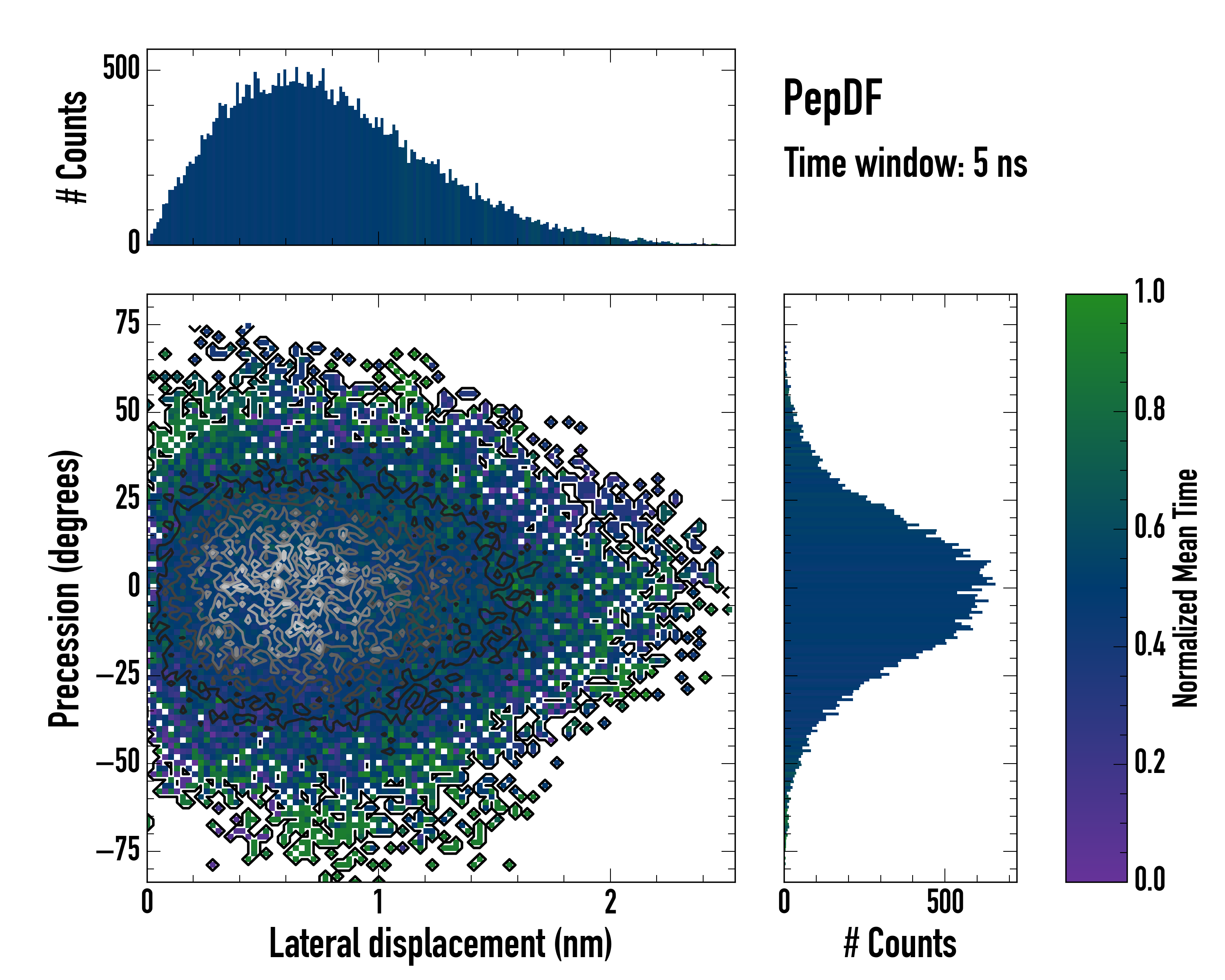

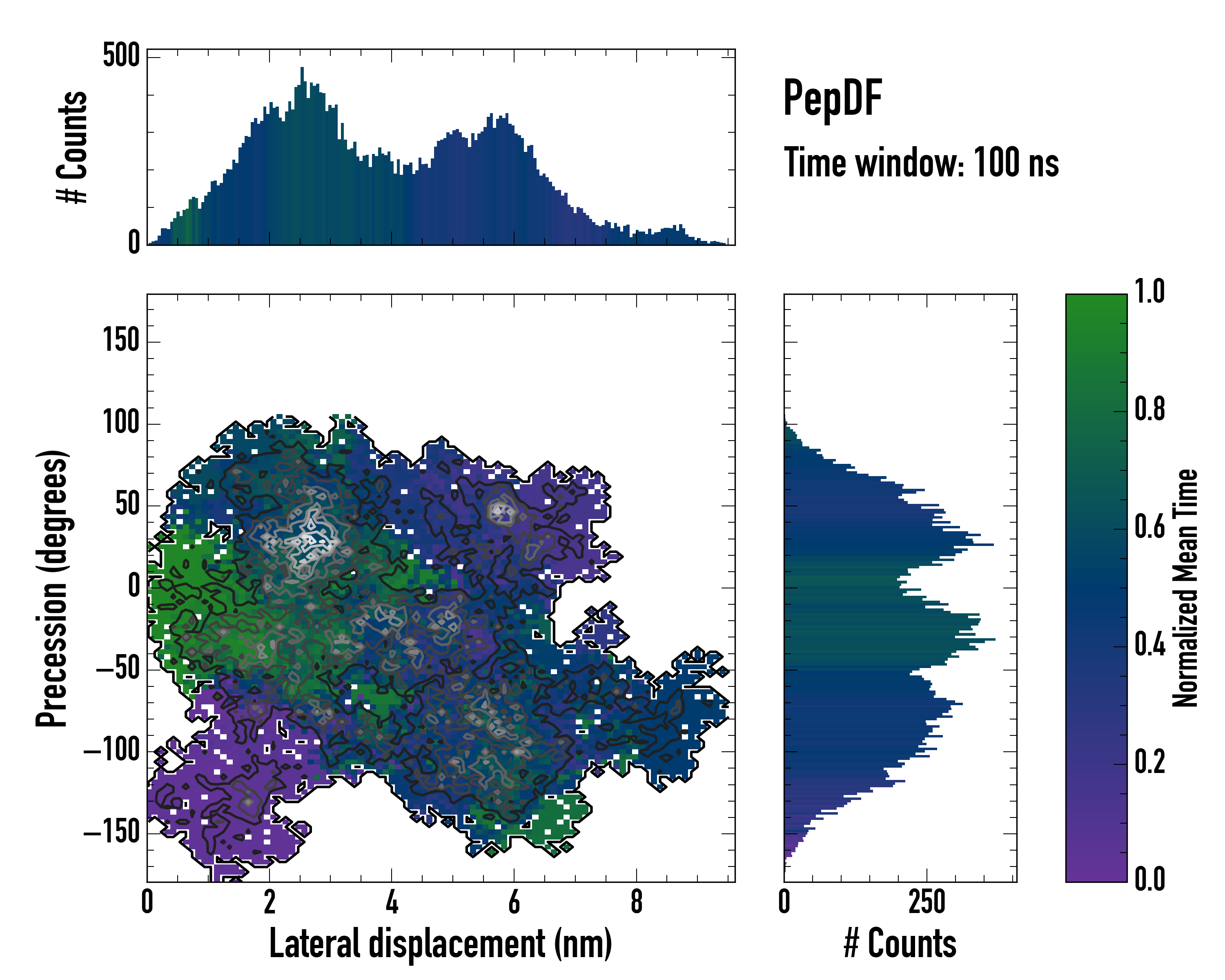

Peptide Displacement Fingerprint (PepDF)
Lateral displacement vs Rotational Displacement along the trajectory, for different time windows .

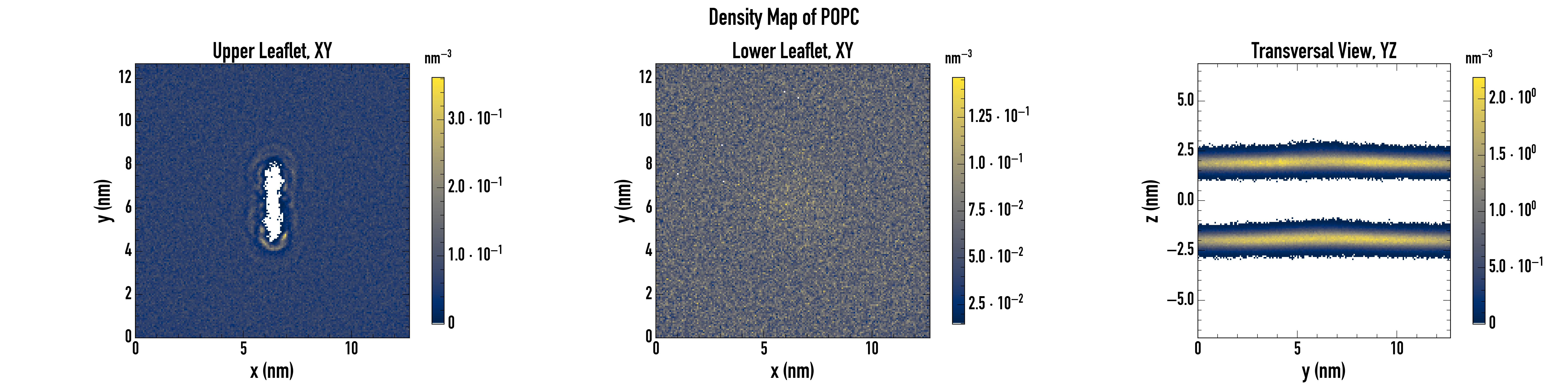

Density maps:
2D-density maps of lipids around the peptide along XY and YZ axis, calculated for each lipid type along the last microsecond.

Lipid-Peptide Analyses:

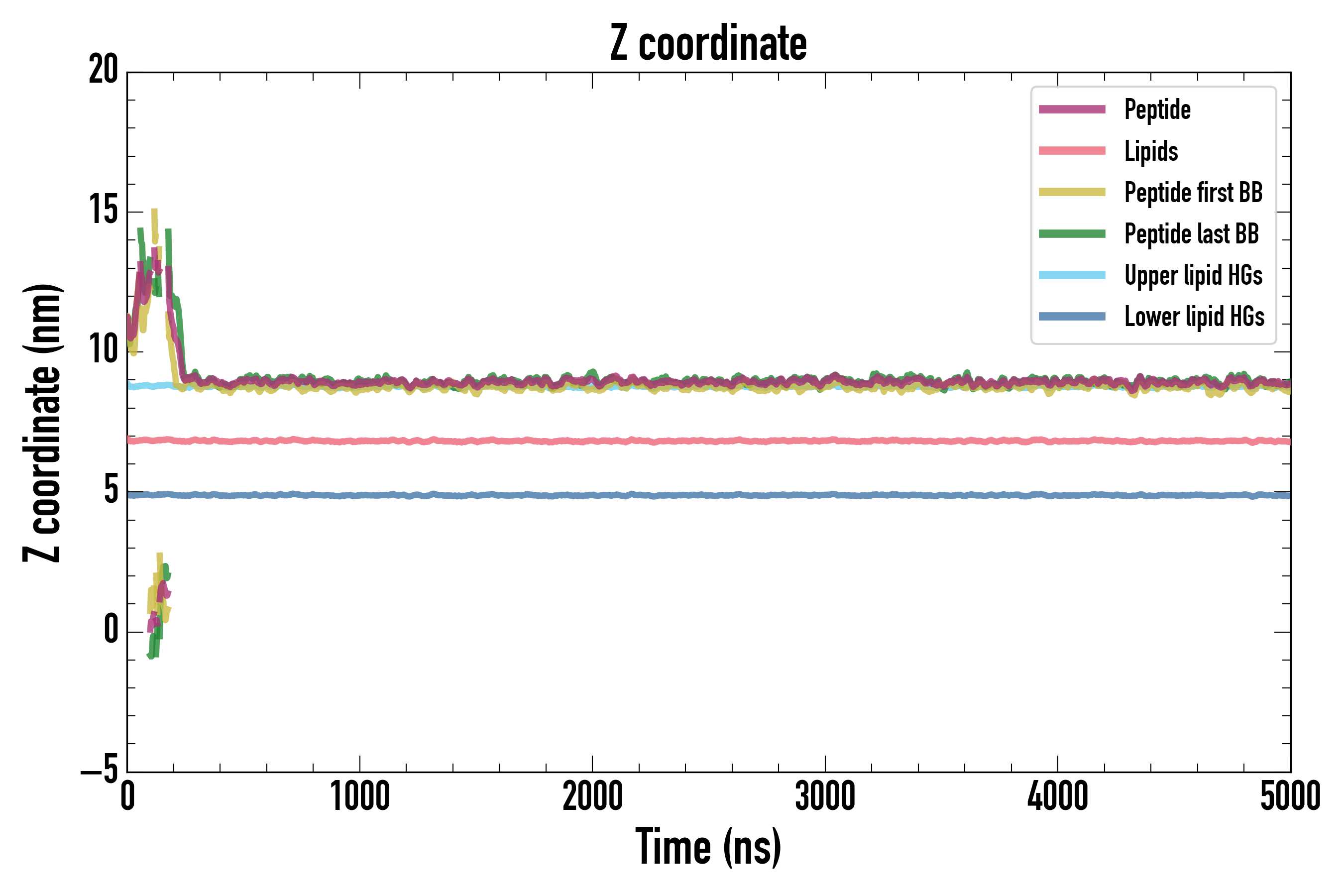

z-Position
Z-coordinate, averaged for differetn parts of the the system: peptide, membrane, first and last backbone (BB) residues and upper of lower leaflet lipids’ headgroups (HGs).

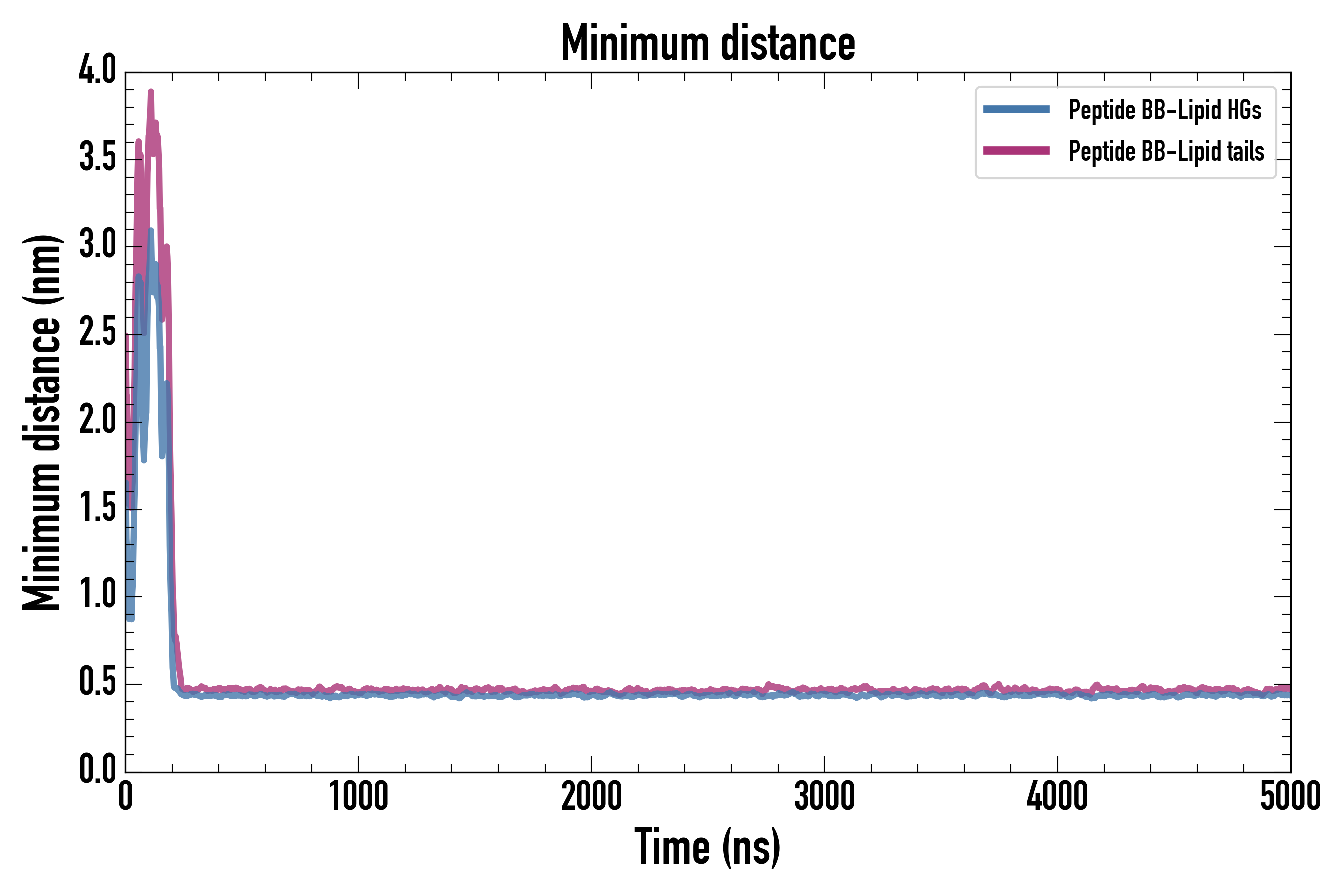

Minimum distance
Minimum distance (nm) between the peptide backbone and the lipids (headgroups and tailgroups).

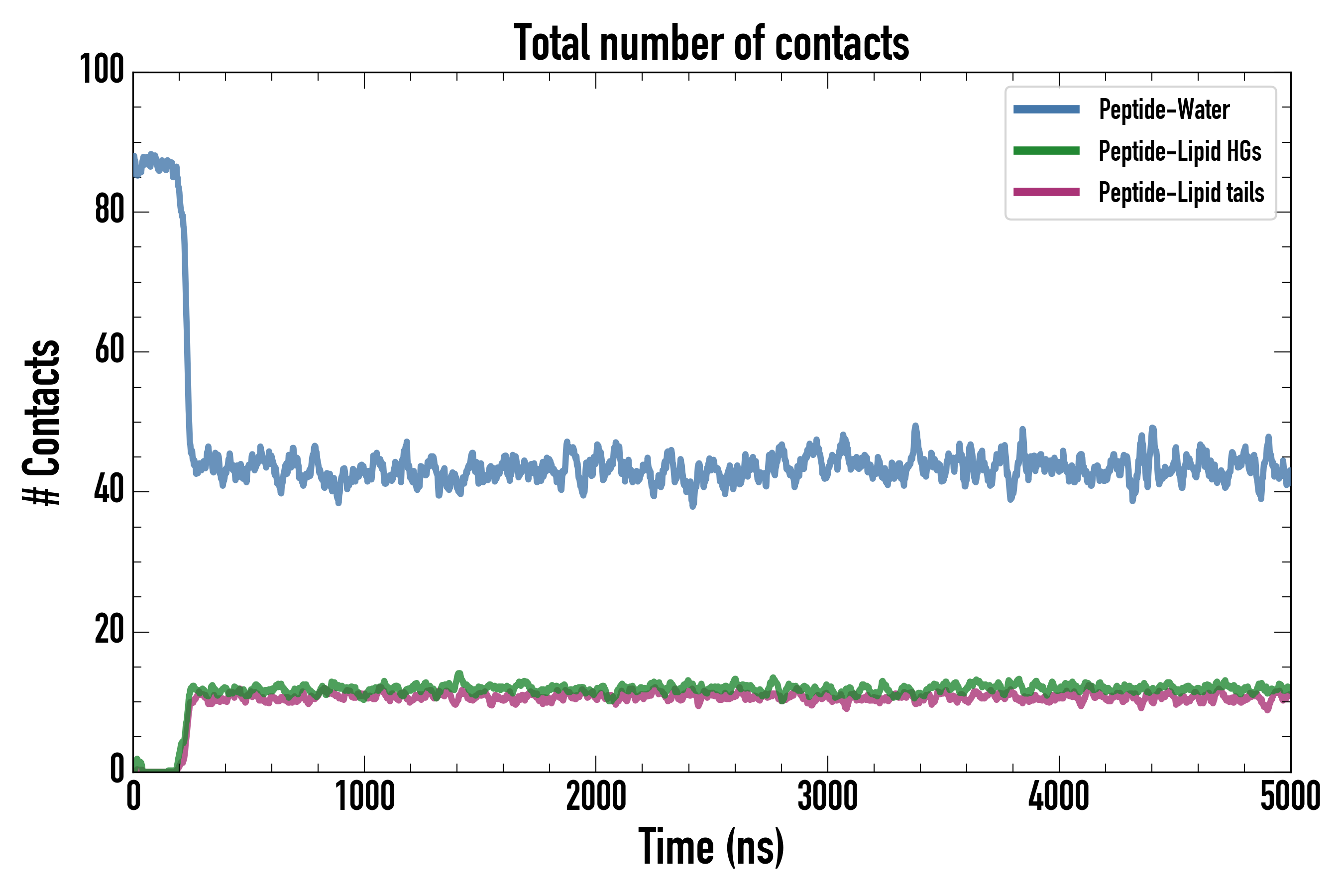

Number of contacts
Number of contacts between the peptide backbone and the water or the lipids separated by lipid headgroups (HG) or lipid tails, using a cut-off of 0.6 nm.

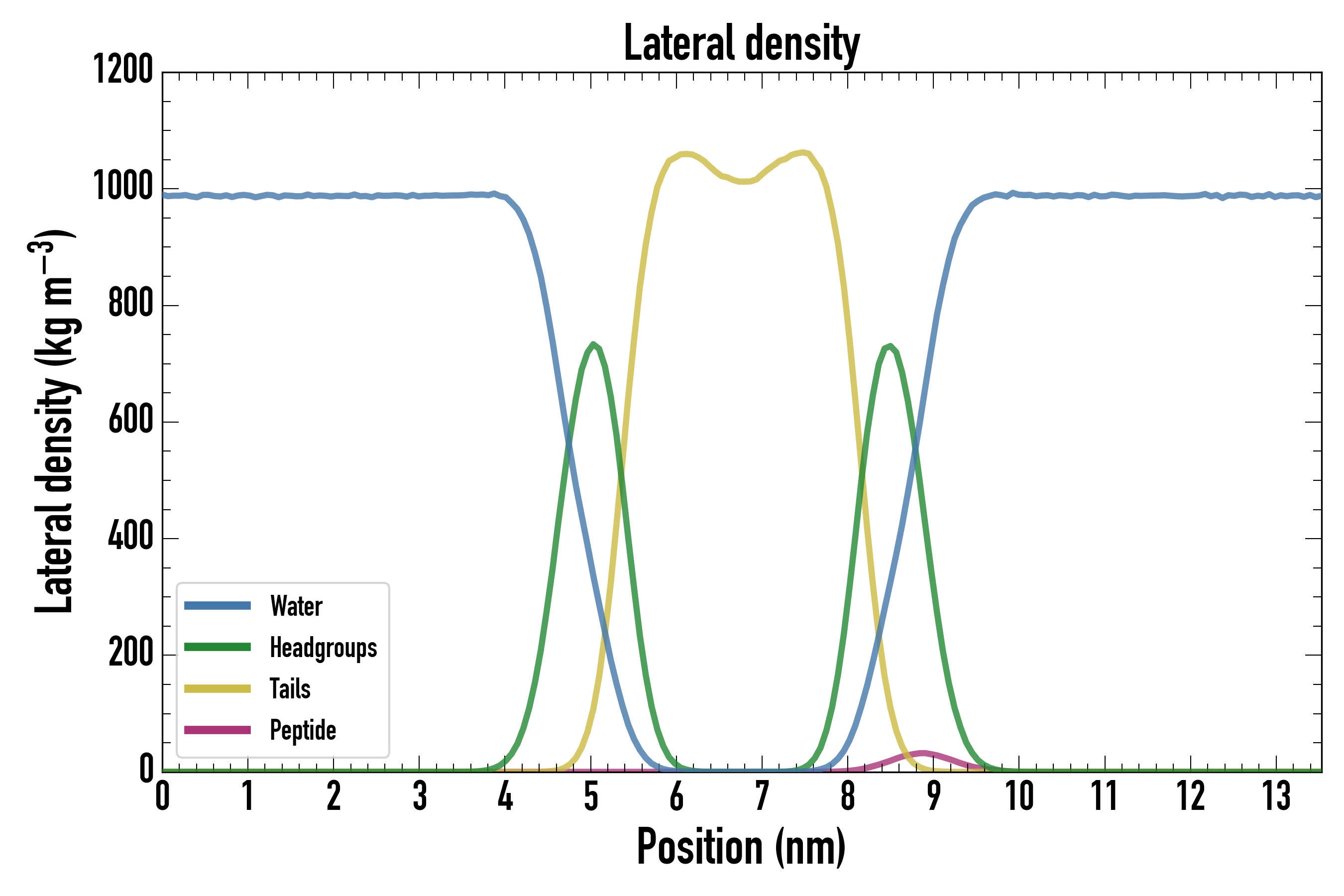

Lateral density
Lateral density for the different components of the system: headgroups, tail groups, peptide and water.
