Trajectory SP1214

Force field: martini_v3
Simulation length (ns): 5000
Electric field (kJ mol-1 nm-1 e-1): 0
Temperature (K): 300 (v-rescale)
Pressure (bar): 1 (Parrinello-rahman semiisotropic)
Number of particles: 19219
Time step (fs) : 25
Software: GROMACS 2021.5
Supercomputer: Finisterrae III CESGA
Peptides: P396 AP00499
Lipids: POPC
Heteromolecules:
Ions:
Water model: W

  Download all Compresed Files.


Sequence :
GALAVVVWLWLWLW
Total charge (e): 0
Number of residues: 14
By amino acid:
  Basic: 0
  Acidic: 0
  Hydrophobic: 14
  Polar: 0
Electrostatic Dipolar Moment (e nm): 2.13
Longitudinal (e nm): 2.13
Transversal (e nm): 0

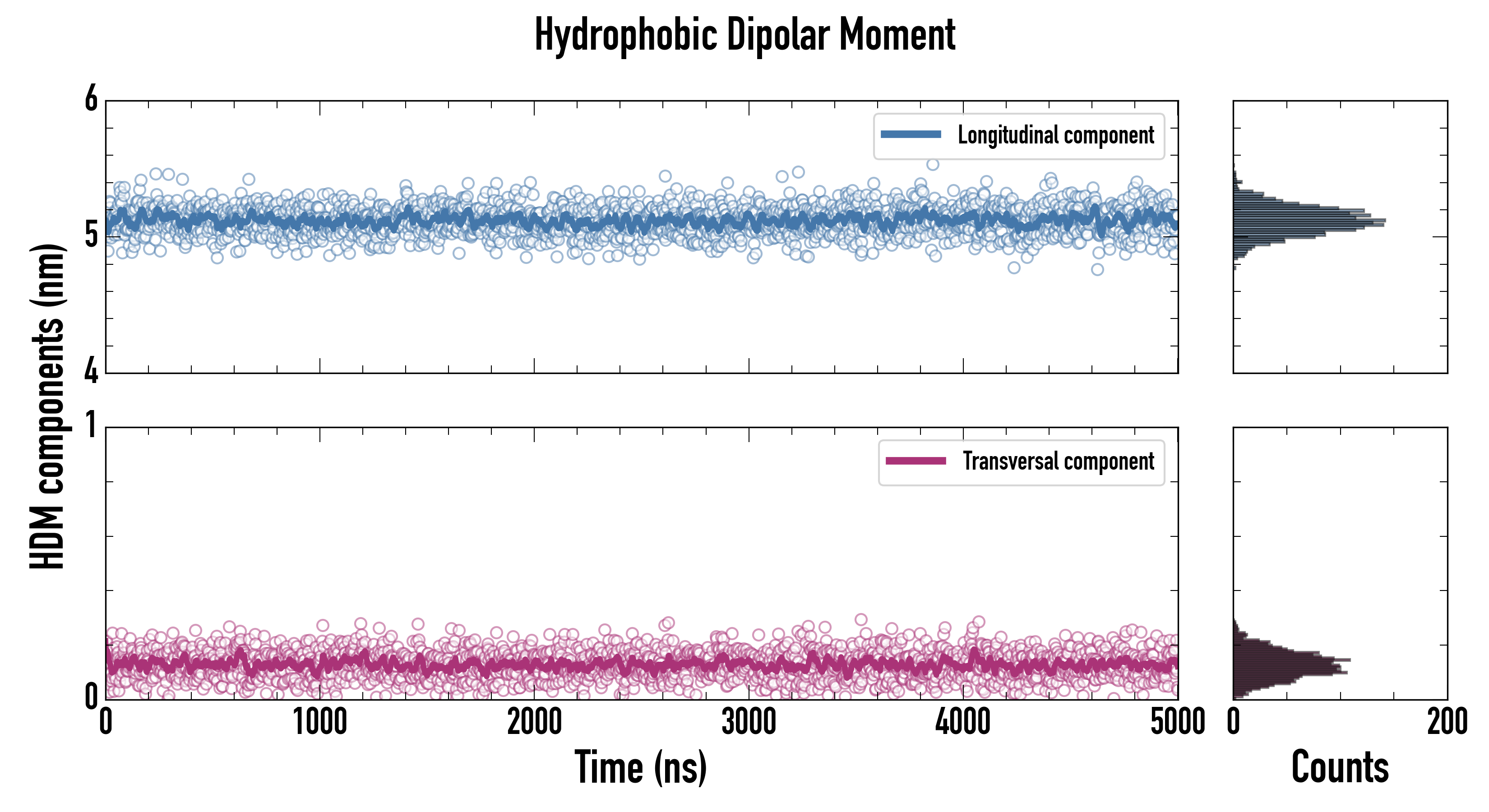

Hydrophobic Dipolar Moment (nm): 5.42
Longitudinal (nm): 5.41
Transversal (nm): 0.32
Secondary structure: Helix
Activity:

Download Files
  ITP file.
  JSON file.
  PDB file.

Click on any component to highlight it from the plot.
Upper leaflet
Lower leaflet

Lipids


Membrane model for: POPC (Healthy mammal)

POPC
2-oleoyl-sn-glycero-3-phosphocholine
Total charge (e): 0

  See POPC lipid
  Download ITP File.
  Download PDB File.
Last snapshot
  Download PDB File.
Total contacts per residue

  Download PDB File.

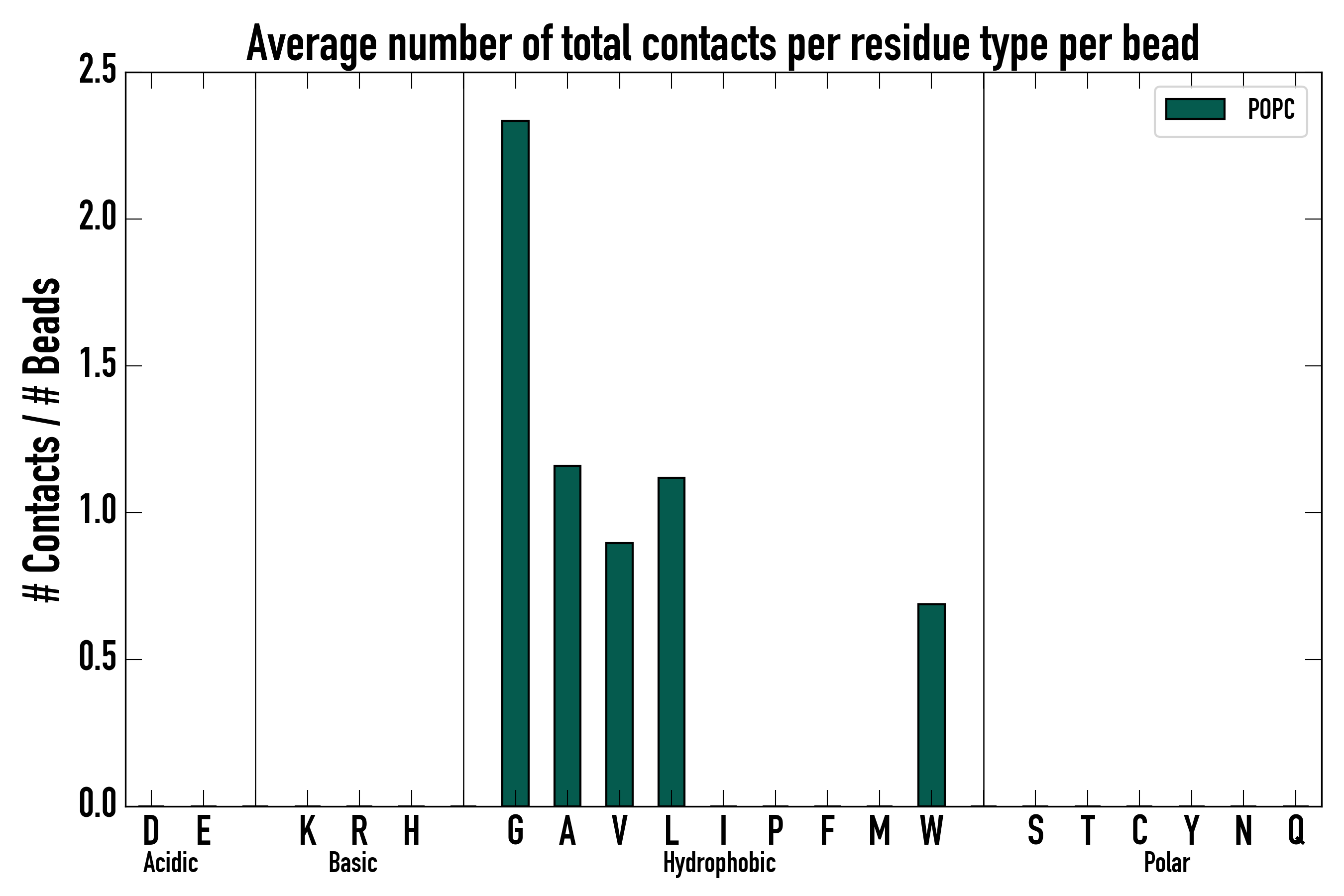

Contacts per residue
(normalized by number of beads in the residue)
  Download PDB File.

Molecular Dynamics based descriptors
Average and standard deviation, calculated using the autocorrelation function (for time series) or the width of the distribution, for the last microsecond of the trajectory

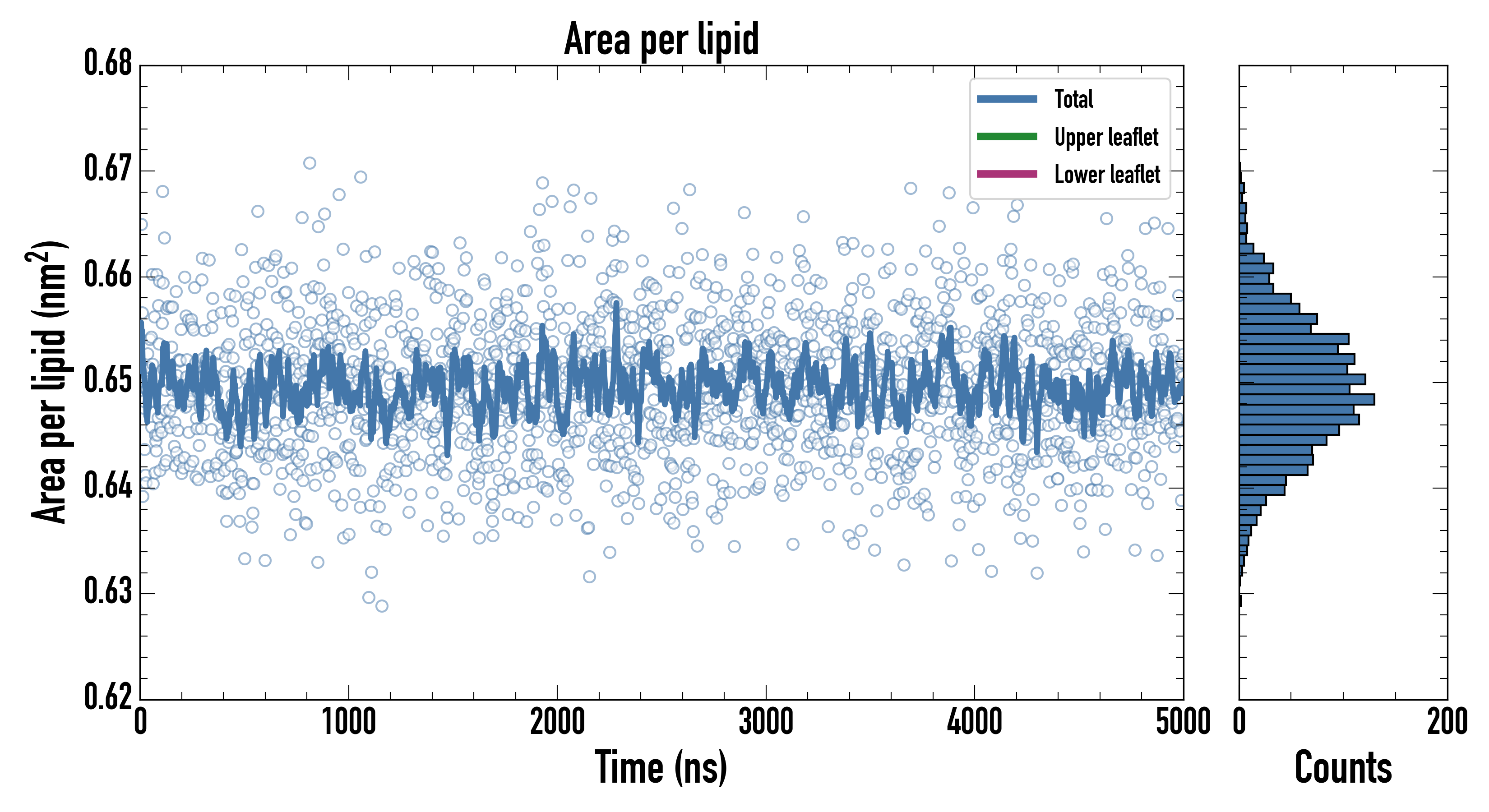

Area per lipid
Membrane (nm2): 0.64952700 ± 0.00103148
Upper leaflet (nm2): 0.64952700 ± 0.00103148
Lower leaflet (nm2): 0.64952700 ± 0.00103148
Average Z coordinate
Peptide (nm): 8.6456500 ± 0.0371738
First Residue (nm): 8.8183200 ± 0.0476405
Last Residue (nm): 8.8114300 ± 0.0424182
Membrane (nm): 6.8274700 ± 0.0106519
Upper leaflet Head Group (nm): 8.7689400 ± 0.0128781
Lower leaflet Head Group (nm): 4.88732000 ± 0.00884449
Bilayer Thickness (nm): 3.8816200 ± 0.0156228
Peptide insertion (nm): -0.1232910 ± 0.0393413
Contacts
Peptide - Water: 22.93250 ± 0.54661
Peptide - Head groups: 10.352500 ± 0.261471
Peptide - Tail groups: 10.652500 ± 0.271641
Tilt (°): 91.41640 ± 1.72248
PepDF:
5(ns):  CVS
Displacement (nm): 0.8378730 ± 0.0359948
Precession(°): 1.23564 ± 3.01677
50(ns)  CVS
Displacement (nm): 2.506990 ± 0.132456
Precession(°): 7.20727 ± 11.17390
100(ns)  CVS
Displacement(nm): 3.465300 ± 0.159038
Precession(°): 11.4021 ± 15.6270
200(ns)  CVS
Displacement(nm): 4.619980 ± 0.245782
Precession(°): 35.7980 ± 22.3223

  Download JSON File.

Peptide Analyses

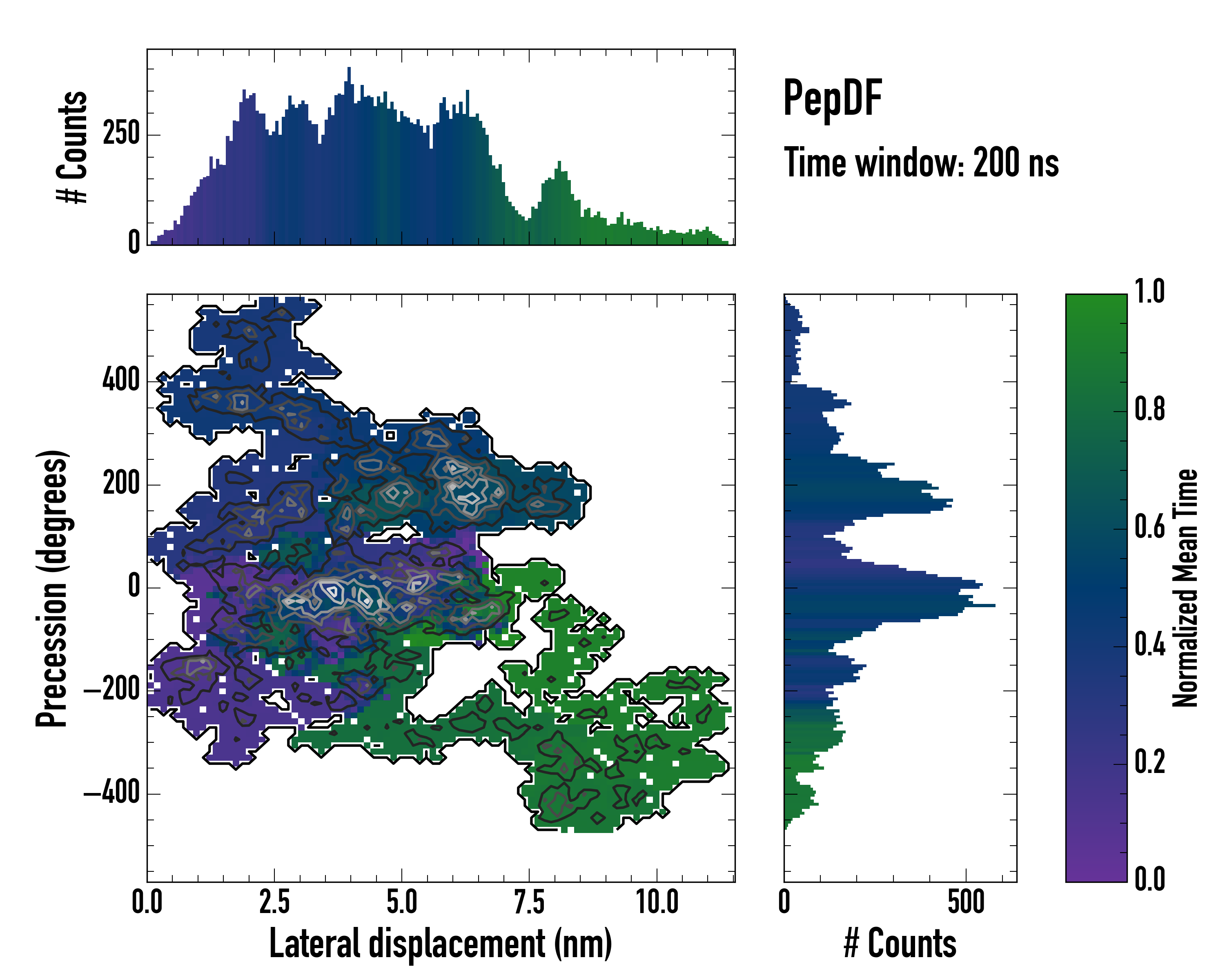

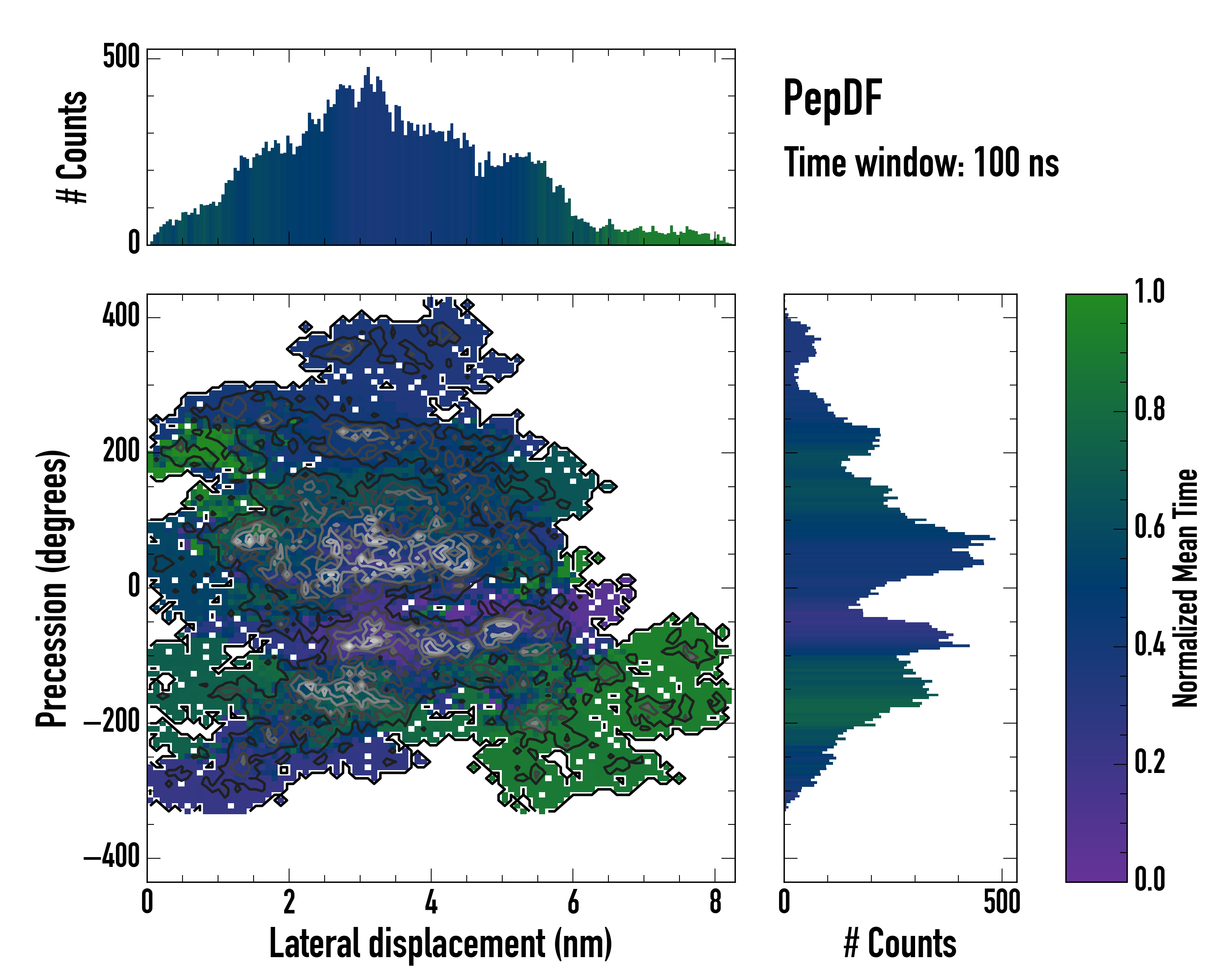

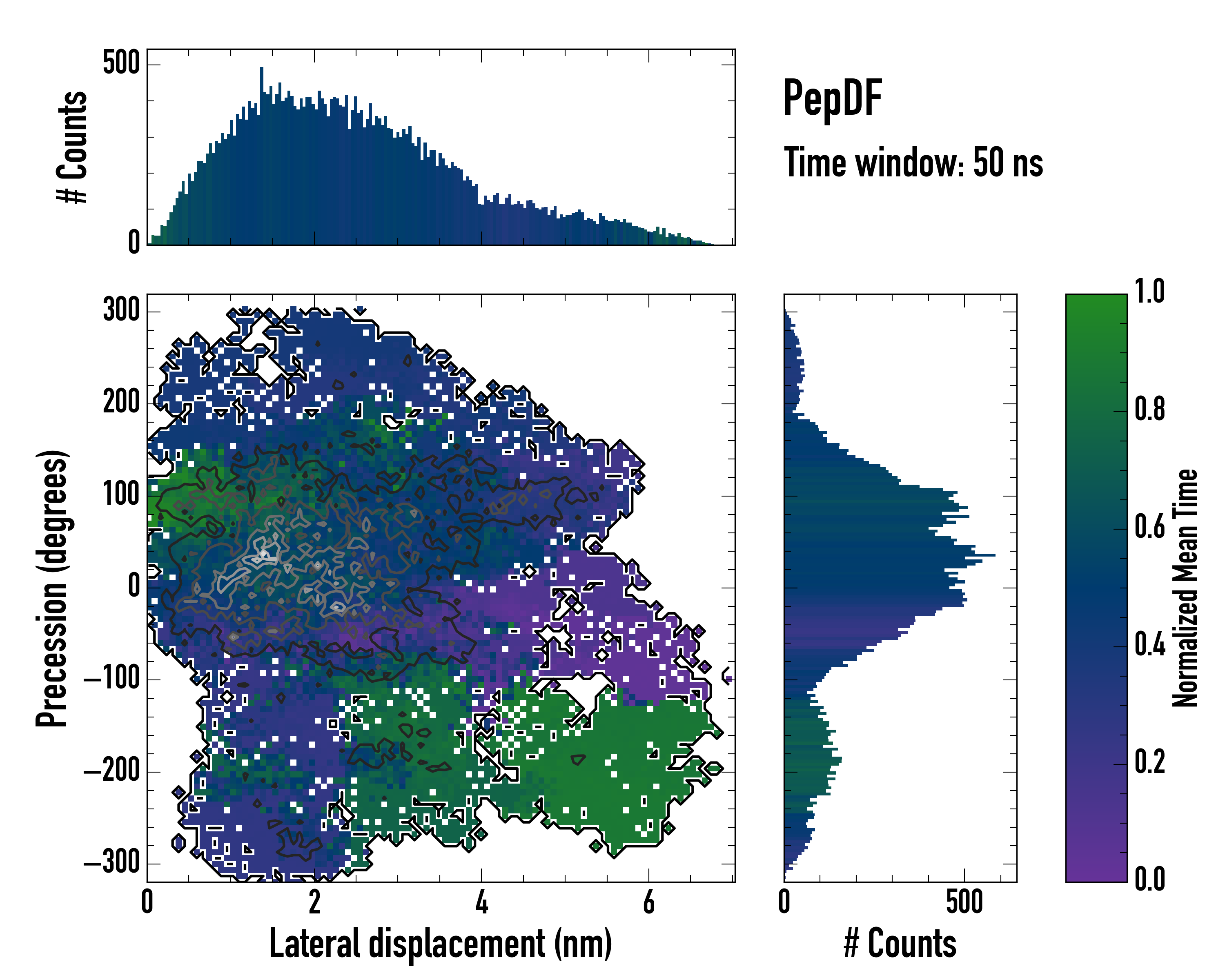

Peptide Displacement Fingerprint (PepDF)
Lateral displacement vs Rotational Displacement along the trajectory, for different time windows .

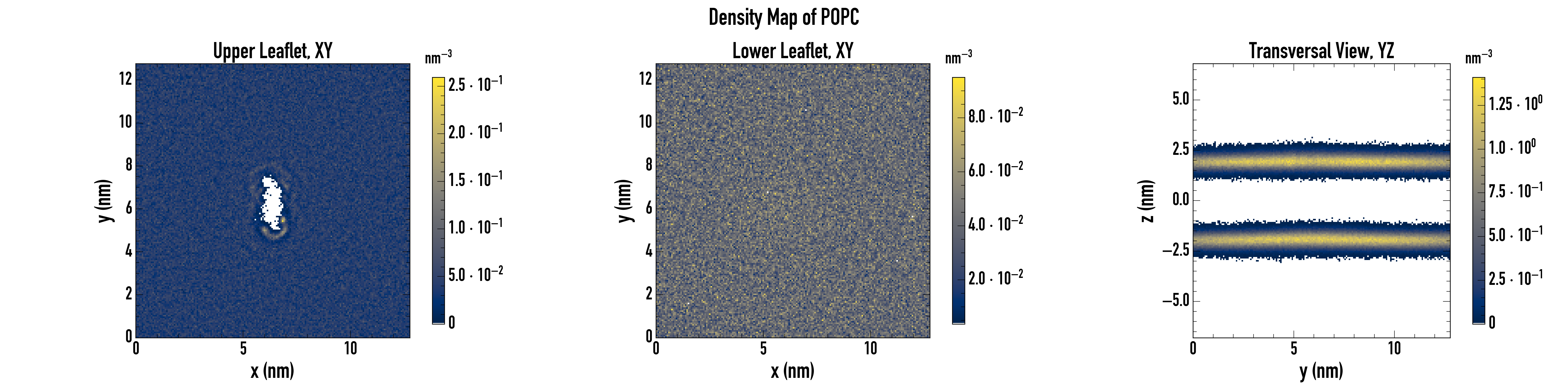

Density maps:
2D-density maps of lipids around the peptide along XY and YZ axis, calculated for each lipid type along the last microsecond.

Lipid-Peptide Analyses:

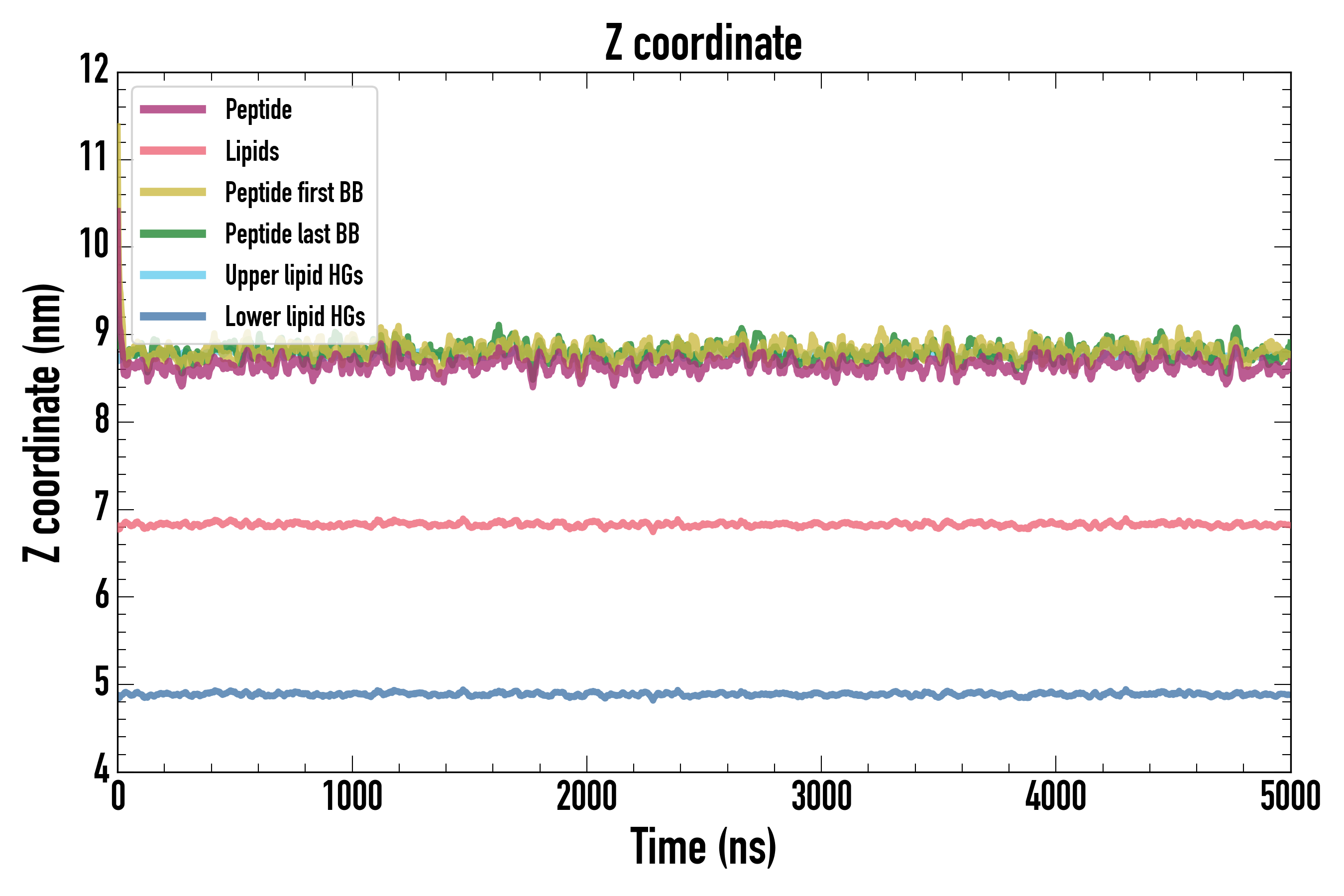

z-Position
Z-coordinate, averaged for differetn parts of the the system: peptide, membrane, first and last backbone (BB) residues and upper of lower leaflet lipids’ headgroups (HGs).

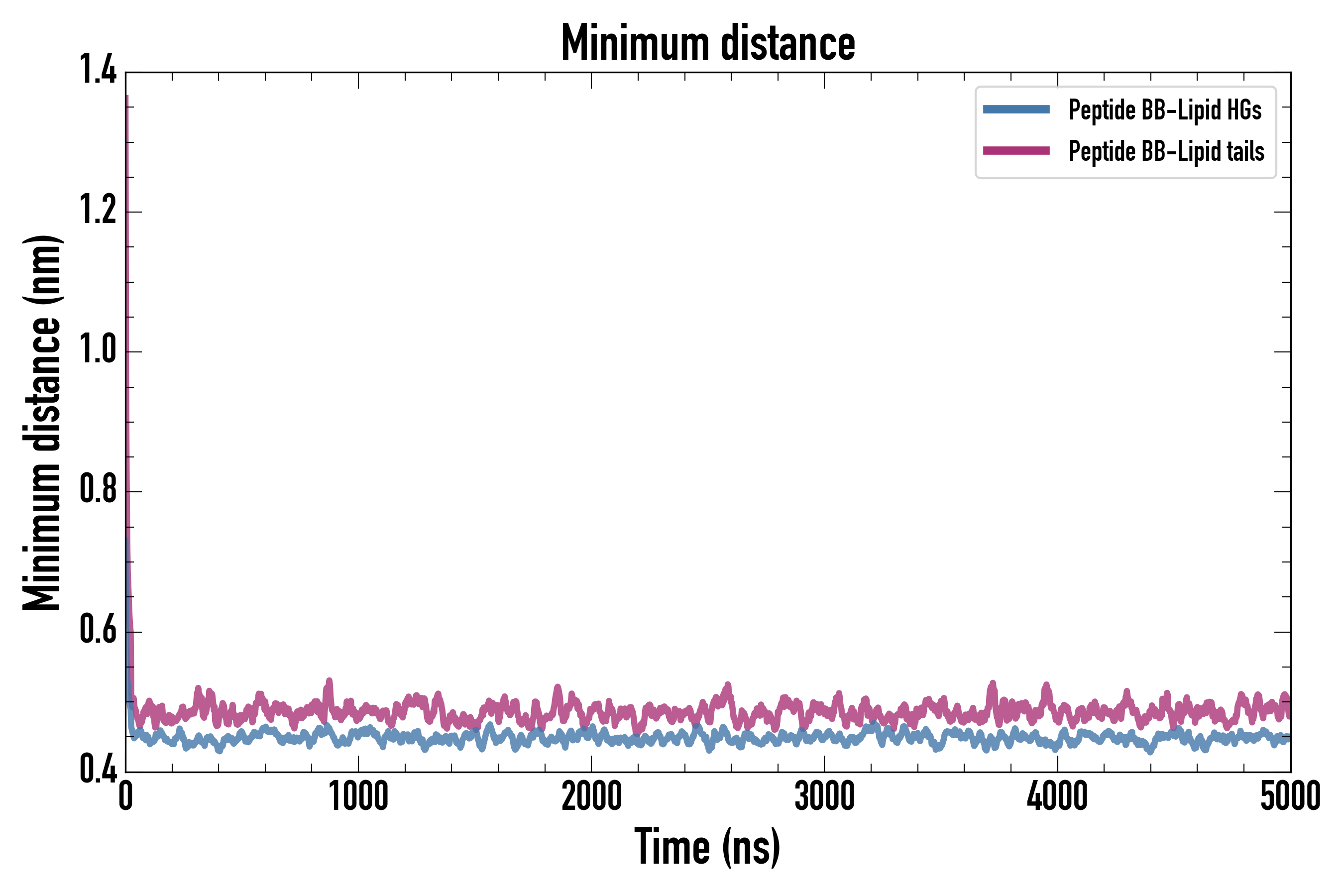

Minimum distance
Minimum distance (nm) between the peptide backbone and the lipids (headgroups and tailgroups).
Number of contacts
Number of contacts between the peptide backbone and the water or the lipids separated by lipid headgroups (HG) or lipid tails, using a cut-off of 0.6 nm.

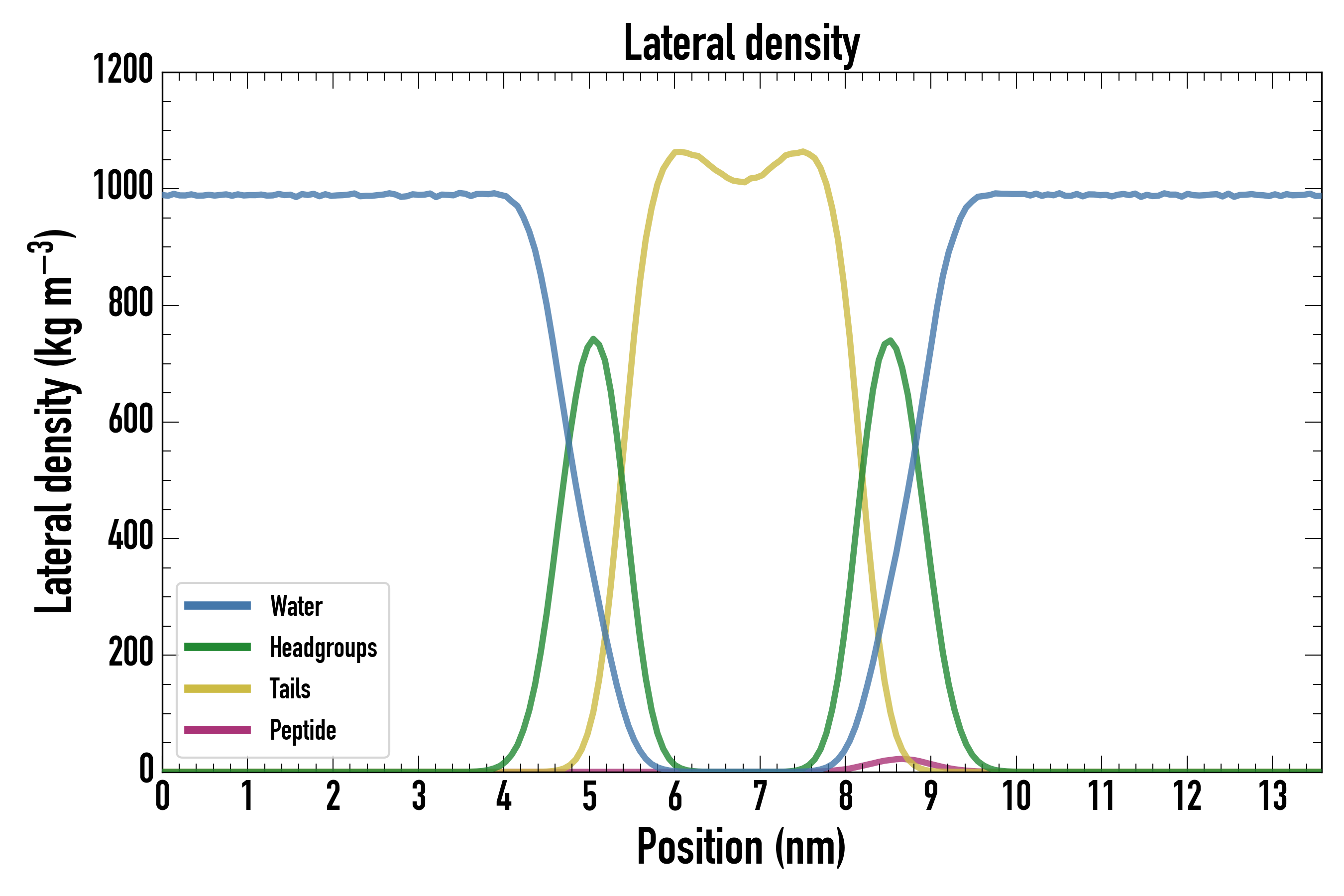

Lateral density
Lateral density for the different components of the system: headgroups, tail groups, peptide and water.
