Trajectory SP1201
Force field:
martini_v3
Simulation length (ns): 5000
Electric field (kJ mol-1 nm-1 e-1): 0
Temperature (K): 300 (v-rescale)
Pressure (bar): 1 (Parrinello-rahman semiisotropic)
Number of particles: 17400
Time step (fs) : 25
Software: GROMACS 2021.5
Simulation length (ns): 5000
Electric field (kJ mol-1 nm-1 e-1): 0
Temperature (K): 300 (v-rescale)
Pressure (bar): 1 (Parrinello-rahman semiisotropic)
Number of particles: 17400
Time step (fs) : 25
Software: GROMACS 2021.5
Supercomputer:
Finisterrae III CESGA
Peptides: P389 AP00146
Lipids: POPE, POPG
Heteromolecules:
Ions: NA
Water model: W
Peptides: P389 AP00146
Lipids: POPE, POPG
Heteromolecules:
Ions: NA
Water model: W
Sequence :
IGAVLKVLTTGLPALISWIKRKRQQ
Total charge (e): +5
Number of residues: 25

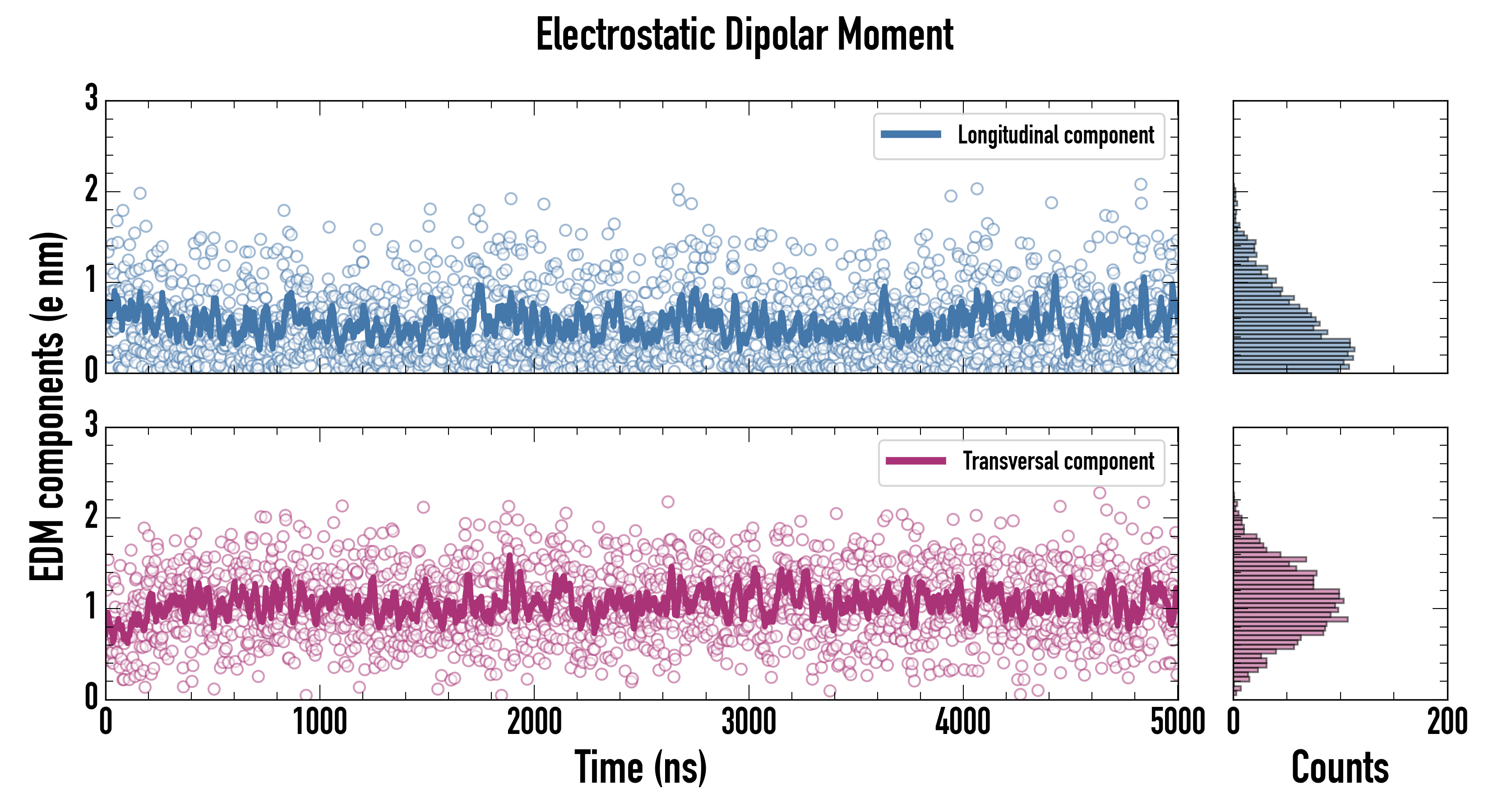

By amino acid: Basic: 5 Acidic: 0 Hydrophobic: 15 Polar: 5 Electrostatic Dipolar Moment (e nm): 2.21

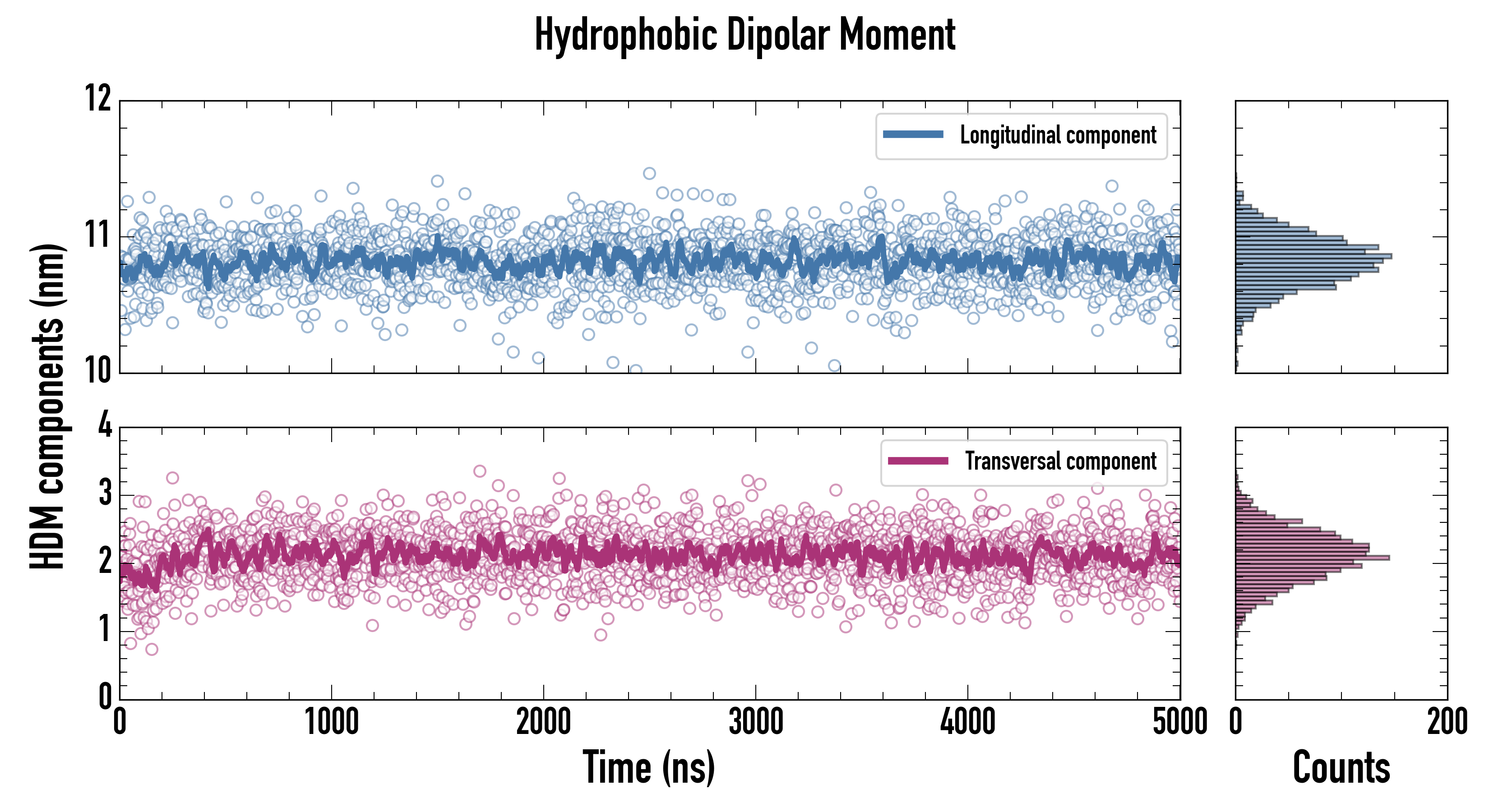

Longitudinal (e nm): 1.92 Transversal (e nm): 1.1 Hydrophobic Dipolar Moment (nm): 11.49
Longitudinal (nm): 11.39 Transversal (nm): 1.53 Secondary structure: Helix
Activity:
Download Files
ITP file. JSON file. PDB file.
Click on any component to highlight it from the plot.
Upper leaflet
Lower leaflet
Lipids
Membrane model for: POPG:POPE (1:3) (Gram-negative bacteria)
POPE
1-Palmitoyl-2-oleoyl-sn-glycero-3-phosphoethanolamine
Total charge (e): 0
See POPE lipid
Download ITP File. Download PDB File.
POPG
1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoglycerol
Total charge (e): -1
See POPG lipid
Download ITP File. Download PDB File.
Last snapshot
Total contacts per residue
Number of total contacts per residue type:
Number of contacts between each residue of the peptide backbone and the different lipid types, averaged over the last microsecond and using a cut-off of 0.6 nm.
Contacts per residue
(normalized by total number of beads of the amino acid):
Number of contacts between each residue of the peptide backbone and the different lipid types, averaged over the last microsecond and using a cut-off of 0.6 nm.
Molecular Dynamics based descriptors
Average and standard deviation,
calculated using the autocorrelation function (for time
series)
or the width of the distribution, for the last microsecond
of
the trajectory
Area per lipid
Membrane (nm2): 0.61546300 ± 0.00114866
Upper leaflet (nm2): 0.61546300 ± 0.00114866
Lower leaflet (nm2): 0.61546300 ± 0.00114866
Average Z coordinate
Peptide (nm): 8.5947200 ± 0.0409833
First Residue (nm): 8.3637500 ± 0.0447855
Last Residue (nm): 9.0315400 ± 0.0518457
Membrane (nm): 6.3872200 ± 0.0113781
Upper leaflet Head Group (nm): 8.3961400 ± 0.0136595
Lower leaflet Head Group (nm): 4.37793000 ± 0.00904229
Bilayer Thickness (nm): 4.0182200 ± 0.0163812
Peptide insertion (nm): 0.1985730 ± 0.0431996
Contacts
Peptide - Water: 48.660000 ± 0.888346
Peptide - Head groups: 13.07500 ± 0.37619
Peptide - Tail groups: 11.737500 ± 0.254968
Tilt (°): 82.72400 ± 1.04575
Membrane (nm2): 0.61546300 ± 0.00114866
Upper leaflet (nm2): 0.61546300 ± 0.00114866
Lower leaflet (nm2): 0.61546300 ± 0.00114866
Average Z coordinate
Peptide (nm): 8.5947200 ± 0.0409833
First Residue (nm): 8.3637500 ± 0.0447855
Last Residue (nm): 9.0315400 ± 0.0518457
Membrane (nm): 6.3872200 ± 0.0113781
Upper leaflet Head Group (nm): 8.3961400 ± 0.0136595
Lower leaflet Head Group (nm): 4.37793000 ± 0.00904229
Bilayer Thickness (nm): 4.0182200 ± 0.0163812
Peptide insertion (nm): 0.1985730 ± 0.0431996
Contacts
Peptide - Water: 48.660000 ± 0.888346
Peptide - Head groups: 13.07500 ± 0.37619
Peptide - Tail groups: 11.737500 ± 0.254968
Tilt (°): 82.72400 ± 1.04575
PepDF:
5(ns): CVS
Displacement (nm): 0.6186820 ± 0.0254616
Precession(°): 0.146601 ± 1.543160
50(ns) CVS
Displacement (nm): 1.6054500 ± 0.0795369
Precession(°): 1.53787 ± 4.53296
100(ns) CVS
Displacement(nm): 2.173870 ± 0.105695
Precession(°): -0.578967 ± 6.726060
200(ns) CVS
Displacement(nm): 2.077450 ± 0.126635
Precession(°): -7.05776 ± 10.32960
Download JSON File.
5(ns): CVS
Displacement (nm): 0.6186820 ± 0.0254616
Precession(°): 0.146601 ± 1.543160
50(ns) CVS
Displacement (nm): 1.6054500 ± 0.0795369
Precession(°): 1.53787 ± 4.53296
100(ns) CVS
Displacement(nm): 2.173870 ± 0.105695
Precession(°): -0.578967 ± 6.726060
200(ns) CVS
Displacement(nm): 2.077450 ± 0.126635
Precession(°): -7.05776 ± 10.32960
Download JSON File.
Peptide Analyses

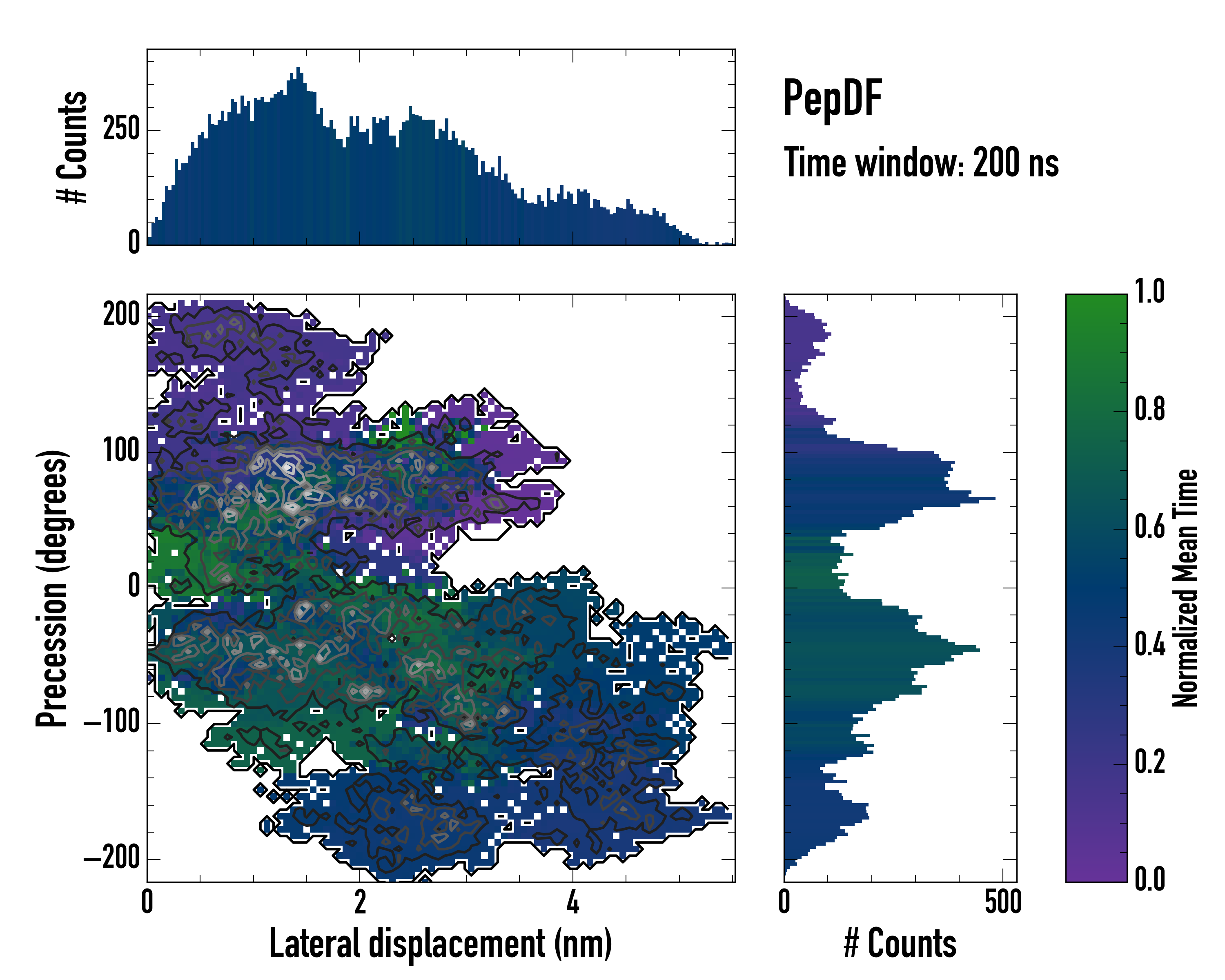

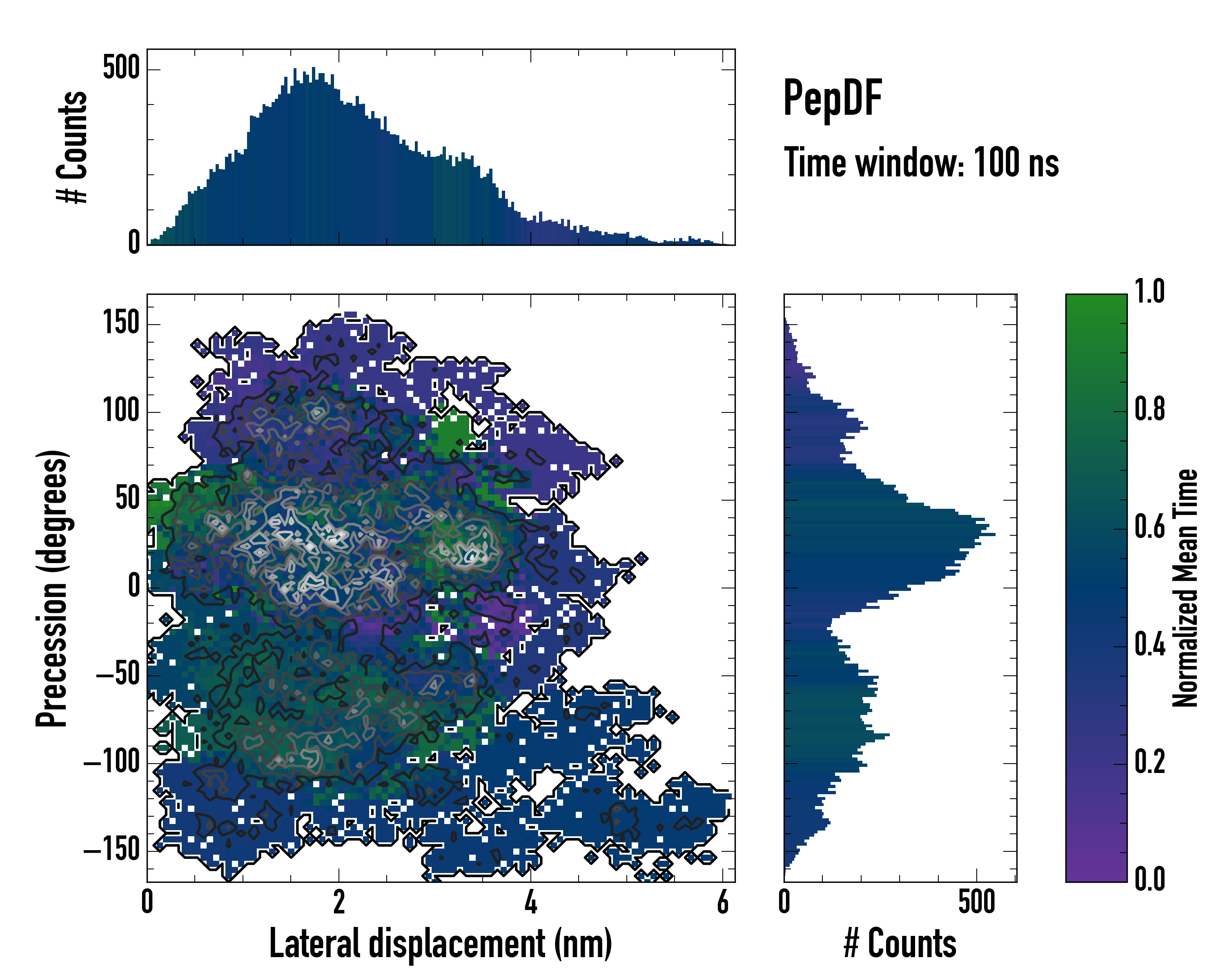

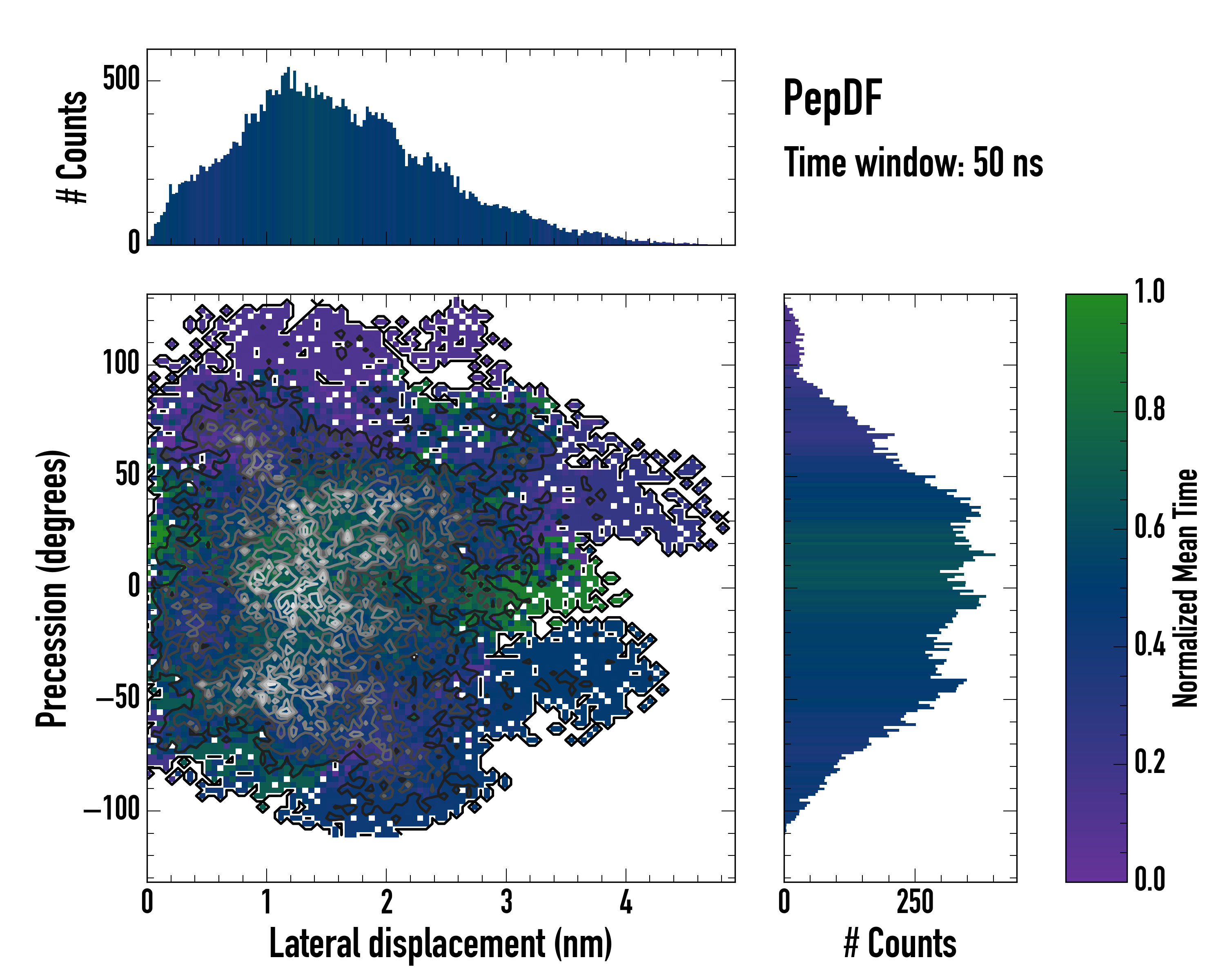

Peptide Displacement Fingerprint
(PepDF)
Lateral displacement vs
Rotational
Displacement along the trajectory, for different time
windows .

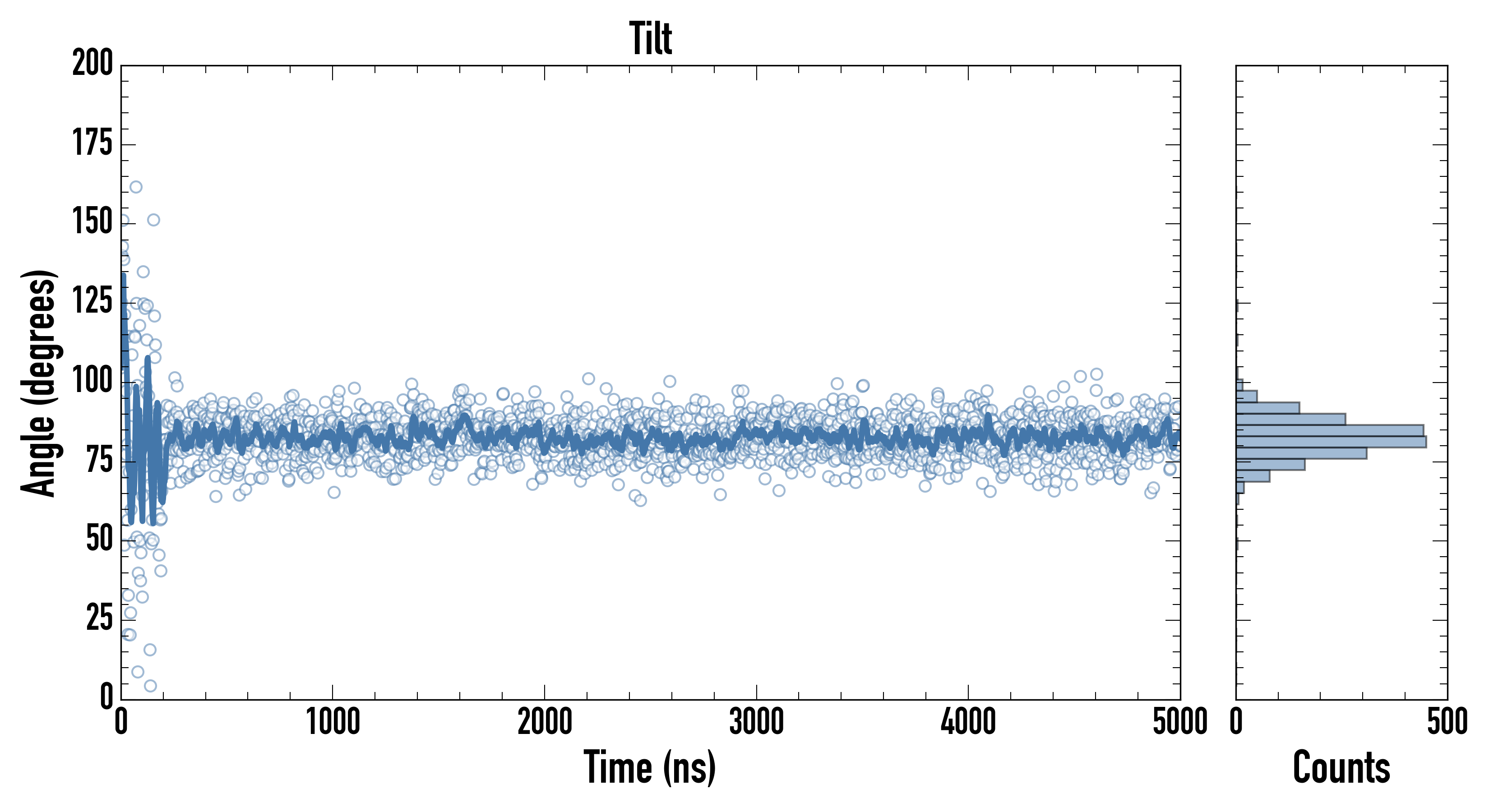

Tilt angle:
Peptide tilt angle evolution, defined as the angle between the peptide helical axis and the bilayer normal .

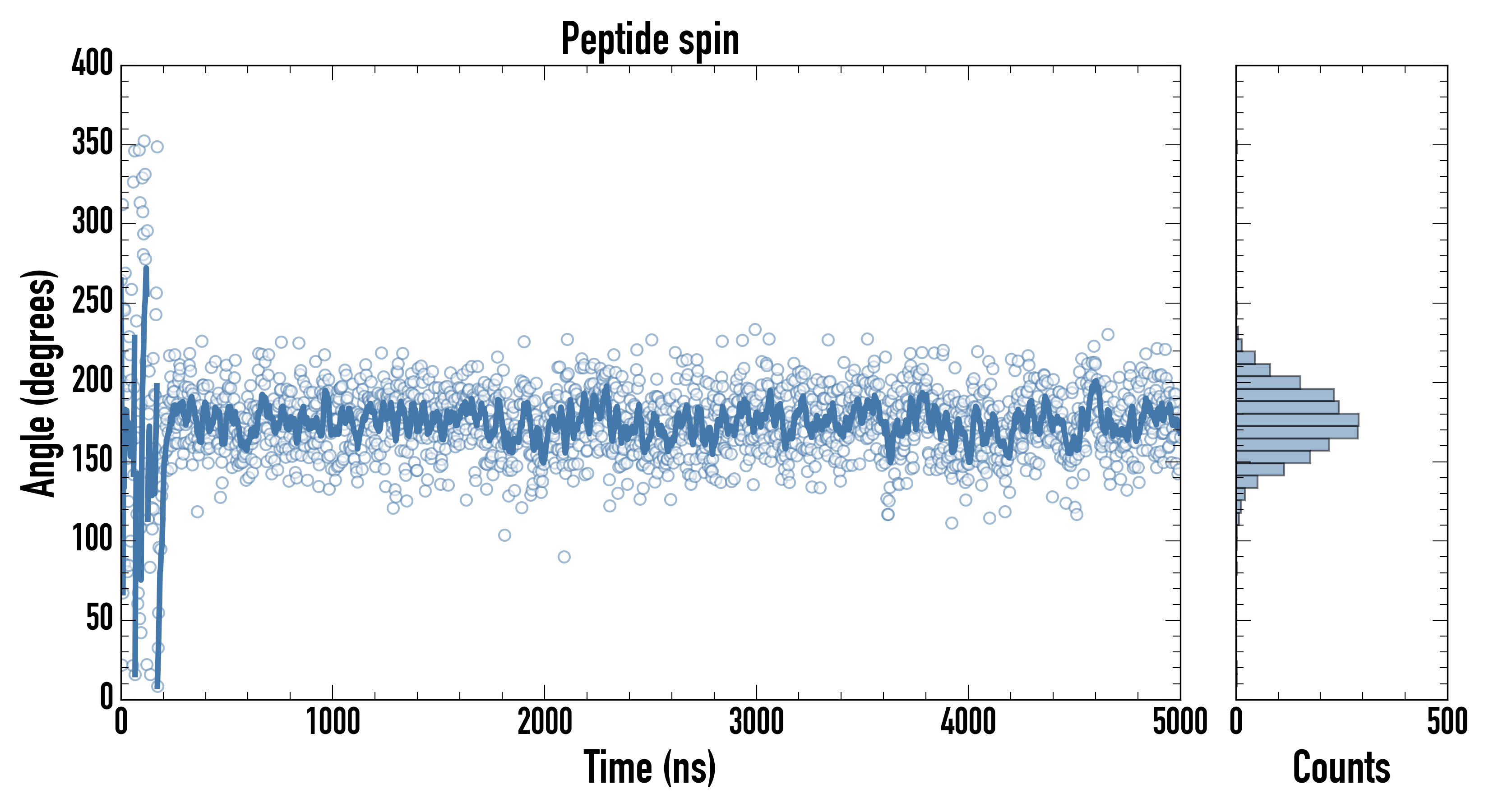

Peptide spin:
Evolution of the angle formed by the transversal component of the hydrophobic dipolar moment and a vector transversal to the peptide pointing outwards the membrane.
Lipid Analyses:

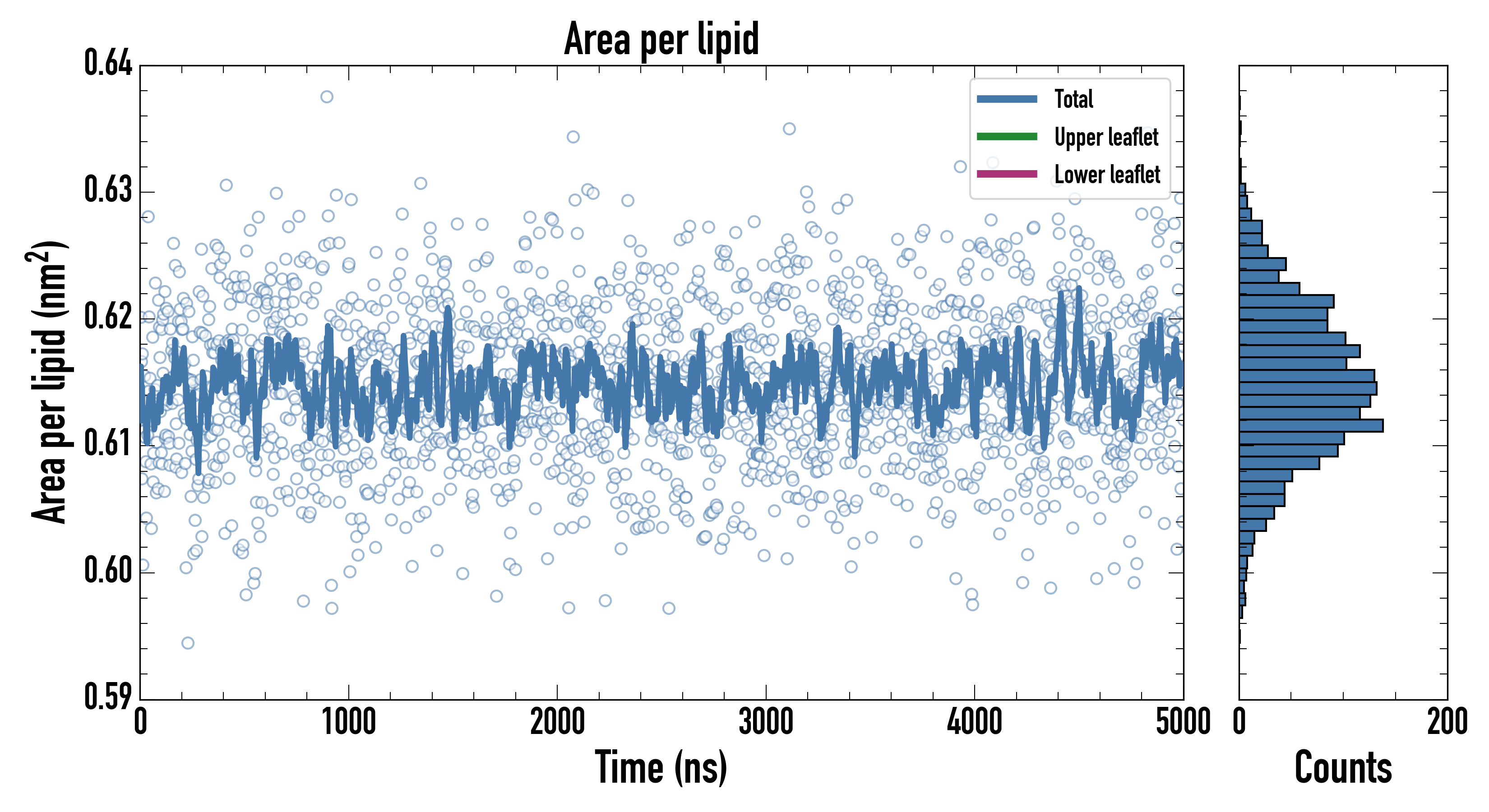

Area per lipid
In this system both leaflets have the same number of lipids, thus the values for their APL are overlaping in the plot

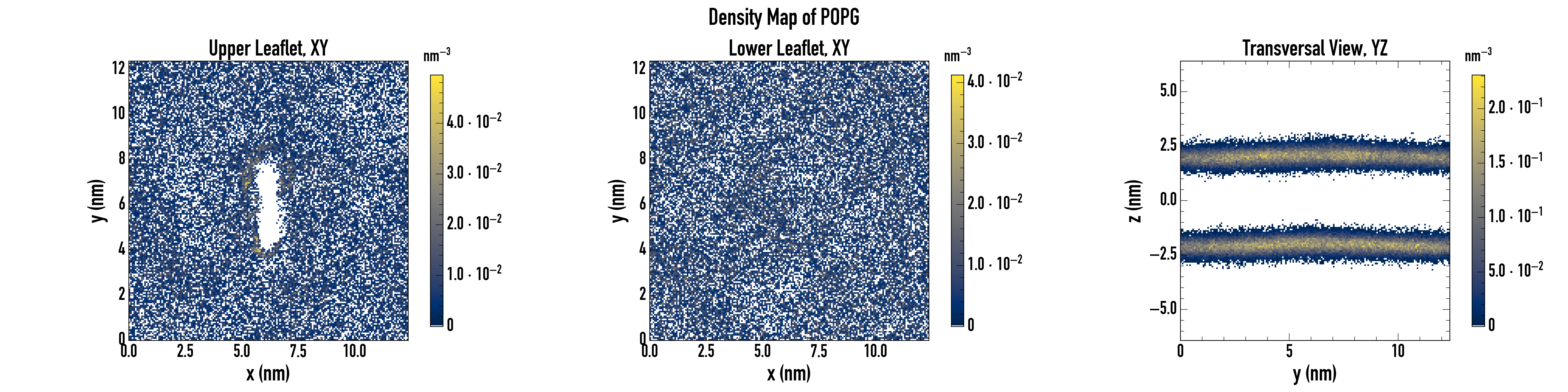

Density maps:
2D-density maps of lipids around the
peptide
along XY and YZ axis, calculated for each lipid type along the
last
microsecond.
Lipid-Peptide Analyses:

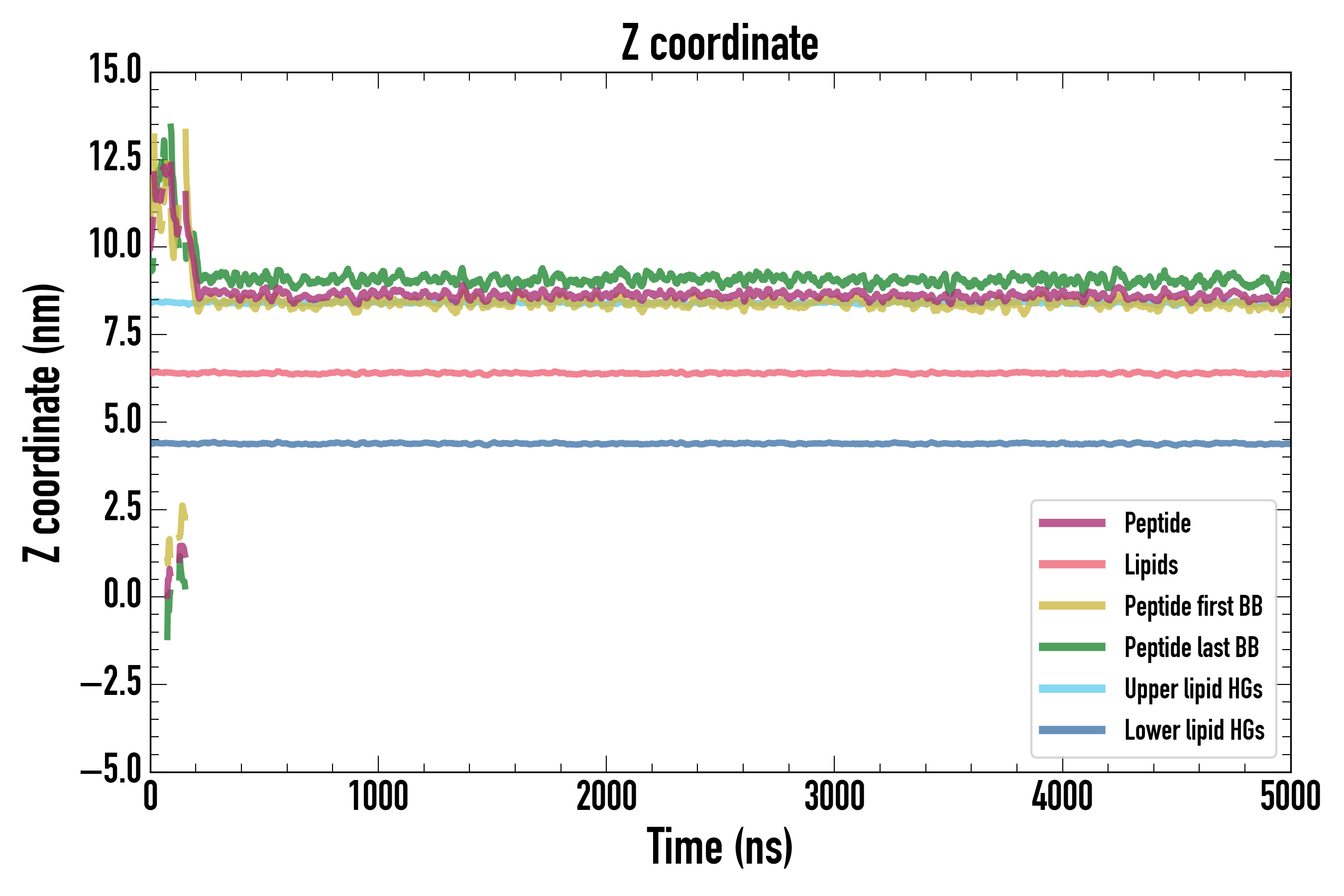

z-Position
Z-coordinate, averaged for
differetn
parts of the the system: peptide, membrane, first and
last
backbone (BB) residues and upper of lower leaflet
lipids’
headgroups (HGs).
Minimum distance
Minimum distance (nm) between the
peptide backbone and the lipids (headgroups and
tailgroups).

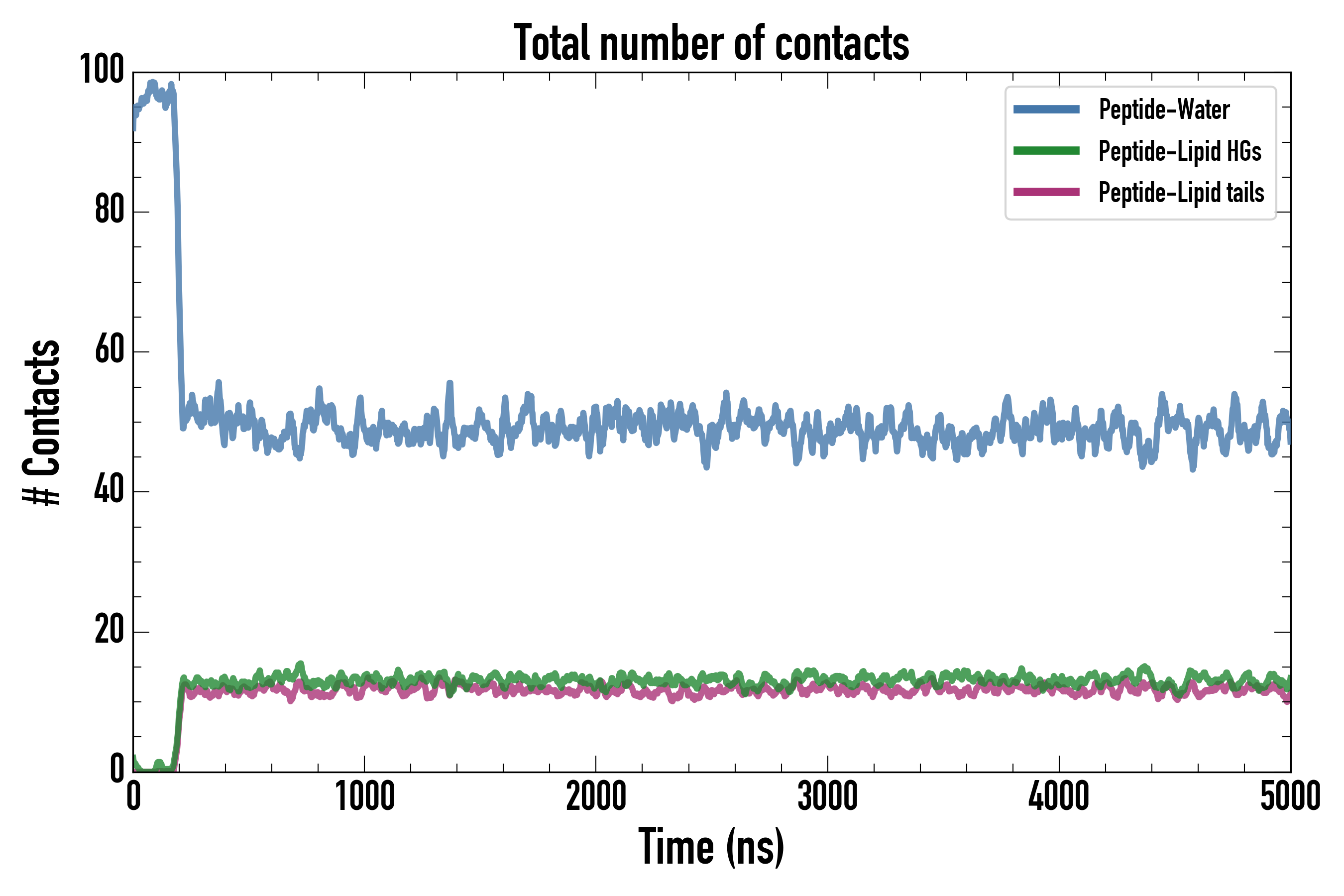

Number of contacts
Number of contacts between the
peptide backbone and the water or the lipids separated
by
lipid headgroups (HG) or lipid tails, using a cut-off of
0.6
nm.
Lateral density
Lateral density for the different
components of the system: headgroups, tail groups,
peptide
and water.
