Trajectory SP1036

Force field: martini_v2.2P
Simulation length (ns): 5000
Electric field (kJ mol-1 nm-1 e-1): 0
Temperature (K): 300 (v-rescale)
Pressure (bar): 1 (Parrinello-rahman semiisotropic)
Number of particles: 39875
Time step (fs) : 25
Software: GROMACS 2021.5
Supercomputer: Finisterrae III CESGA
Peptides: P307 AP03258
Lipids: POPE, POPG
Heteromolecules:
Ions: NA
Water model: PW

  Download all Compresed Files.


Sequence :
LPLIAGLFGKIF
Total charge (e): +1
Number of residues: 12
By amino acid:
  Basic: 1
  Acidic: 0
  Hydrophobic: 11
  Polar: 0

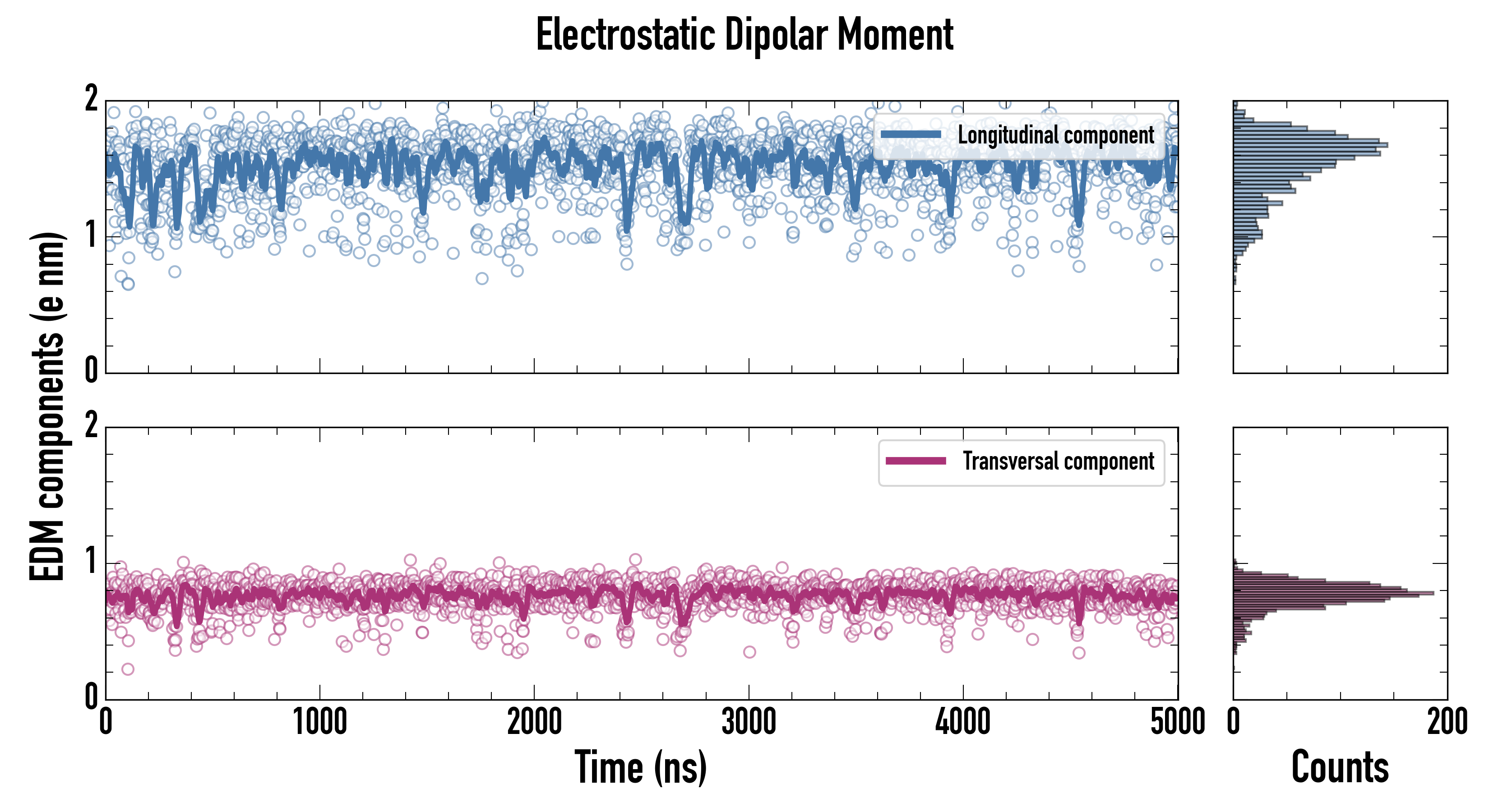

Electrostatic Dipolar Moment (e nm): 1.71
Longitudinal (e nm): 1.55
Transversal (e nm): 0.71

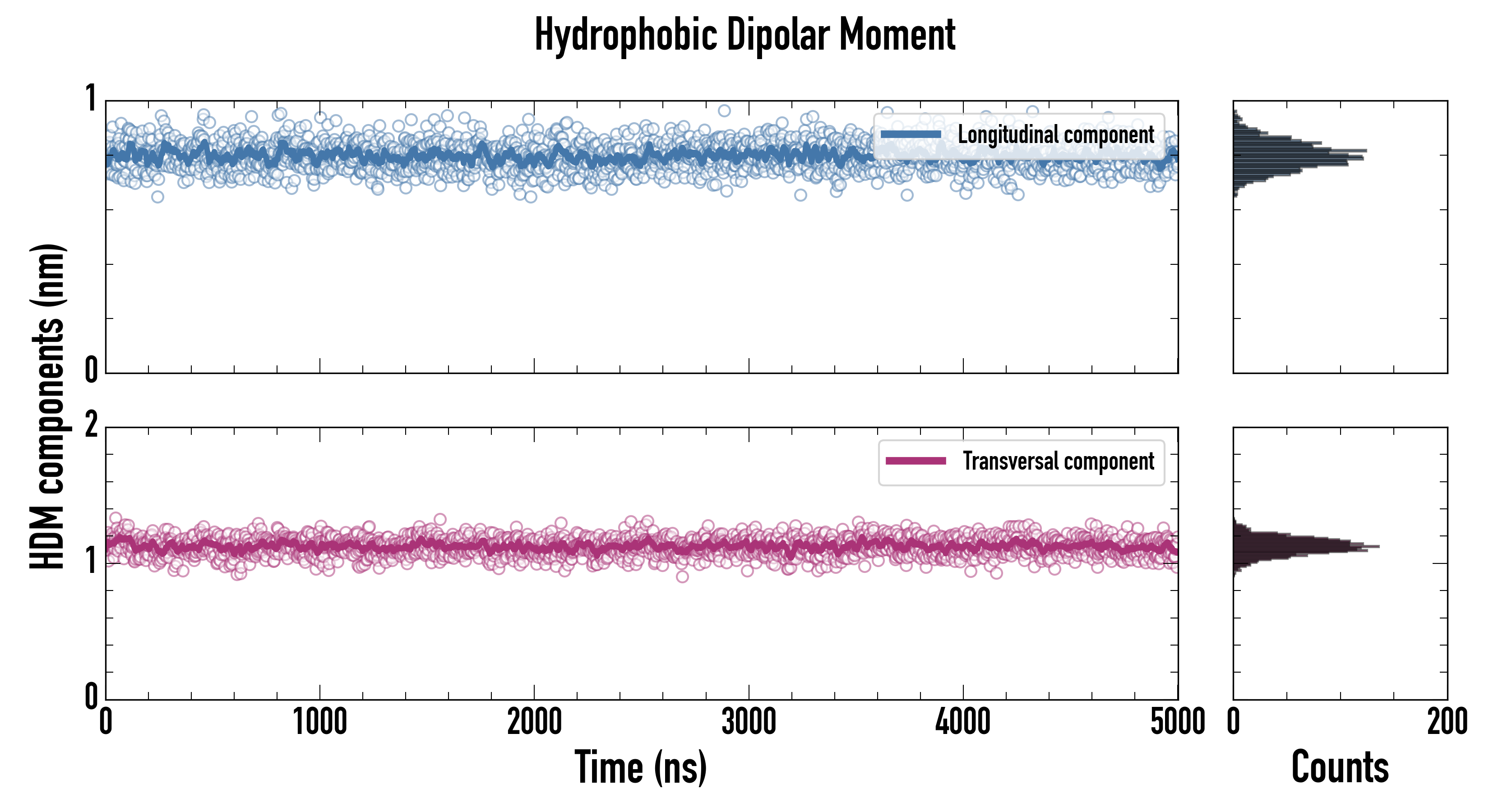

Hydrophobic Dipolar Moment (nm): 1.35
Longitudinal (nm): 0.99
Transversal (nm): 0.91
Secondary structure: Helix
Activity:

Download Files
  ITP file.
  JSON file.
  PDB file.

Click on any component to highlight it from the plot.
Upper leaflet
Lower leaflet

Lipids


Membrane model for: POPG:POPE (1:3) (Gram-negative bacteria)

POPE
1-Palmitoyl-2-oleoyl-sn-glycero-3-phosphoethanolamine
Total charge (e): 0

  See POPE lipid
  Download ITP File.
  Download PDB File.
POPG
1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoglycerol
Total charge (e): -1

  See POPG lipid
  Download ITP File.
  Download PDB File.
Last snapshot
  Download PDB File.

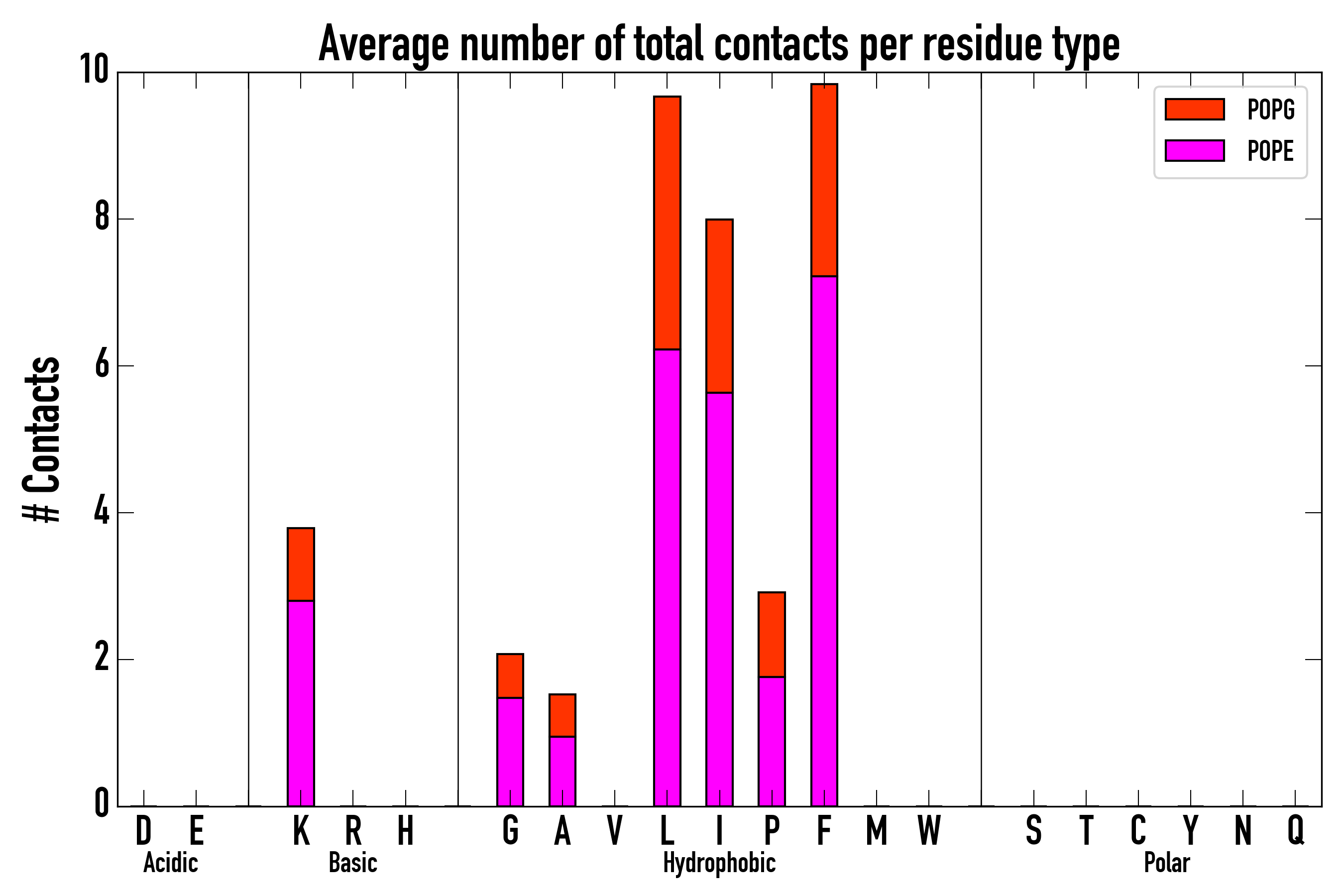

Total contacts per residue

  Download PDB File.

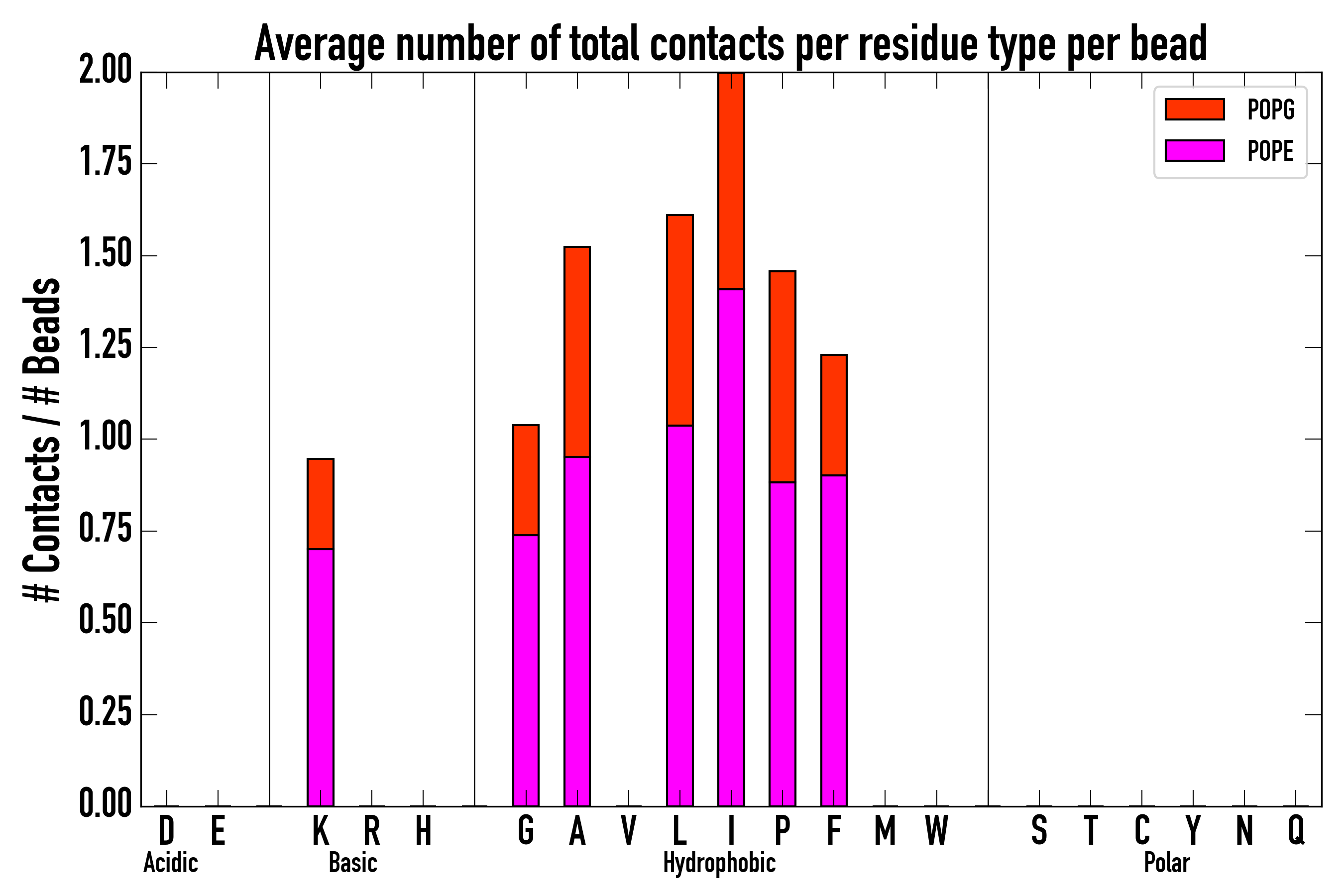

Contacts per residue
(normalized by number of beads in the residue)
  Download PDB File.

Molecular Dynamics based descriptors
Average and standard deviation, calculated using the autocorrelation function (for time series) or the width of the distribution, for the last microsecond of the trajectory

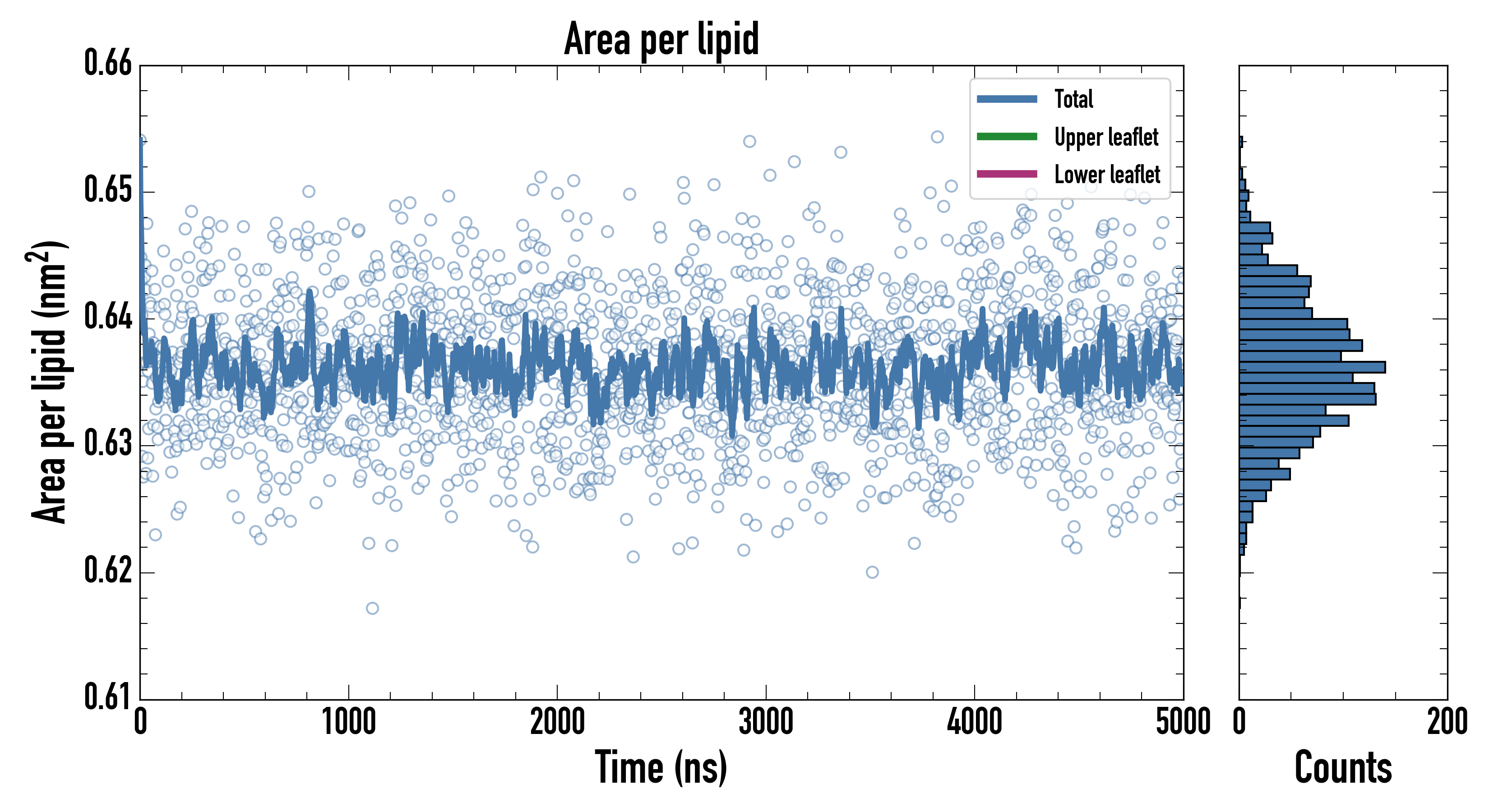

Area per lipid
Membrane (nm2): 0.63680800 ± 0.00102439
Upper leaflet (nm2): 0.63680800 ± 0.00102439
Lower leaflet (nm2): 0.63680800 ± 0.00102439
Average Z coordinate
Peptide (nm): 7.6479900 ± 0.0504555
First Residue (nm): 7.7627000 ± 0.0499643
Last Residue (nm): 7.7912200 ± 0.0589687
Membrane (nm): 6.04408000 ± 0.00991409
Upper leaflet Head Group (nm): 8.0384900 ± 0.0121445
Lower leaflet Head Group (nm): 4.0514000 ± 0.0079565
Bilayer Thickness (nm): 3.9870900 ± 0.0145188
Peptide insertion (nm): -0.3905000 ± 0.0518965
Contacts
Peptide - Water: 0.0 ± 0.0
Peptide - Head groups: 9.802500 ± 0.298065
Peptide - Tail groups: 9.932500 ± 0.264582

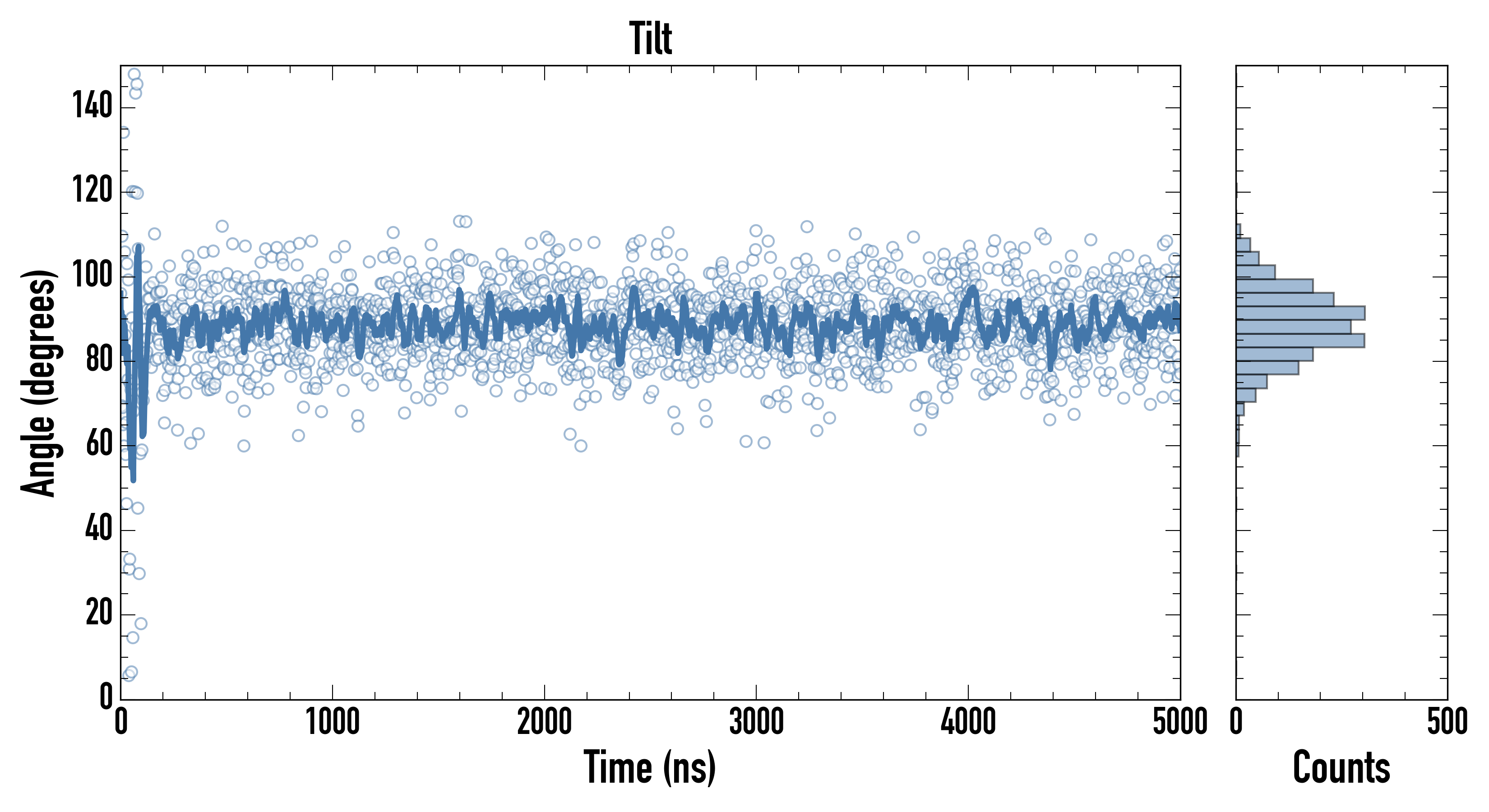

Tilt (°): 89.06840 ± 1.48258
PepDF:
5(ns):  CVS
Displacement (nm): 0.6055130 ± 0.0258416
Precession(°): 1.42150 ± 1.83927
50(ns)  CVS
Displacement (nm): 1.7270000 ± 0.0831603
Precession(°): 17.99650 ± 4.83923
100(ns)  CVS
Displacement(nm): 2.455720 ± 0.103016
Precession(°): 33.45270 ± 6.45526
200(ns)  CVS
Displacement(nm): 3.543810 ± 0.219848
Precession(°): 73.28140 ± 8.68562

  Download JSON File.

Peptide Analyses

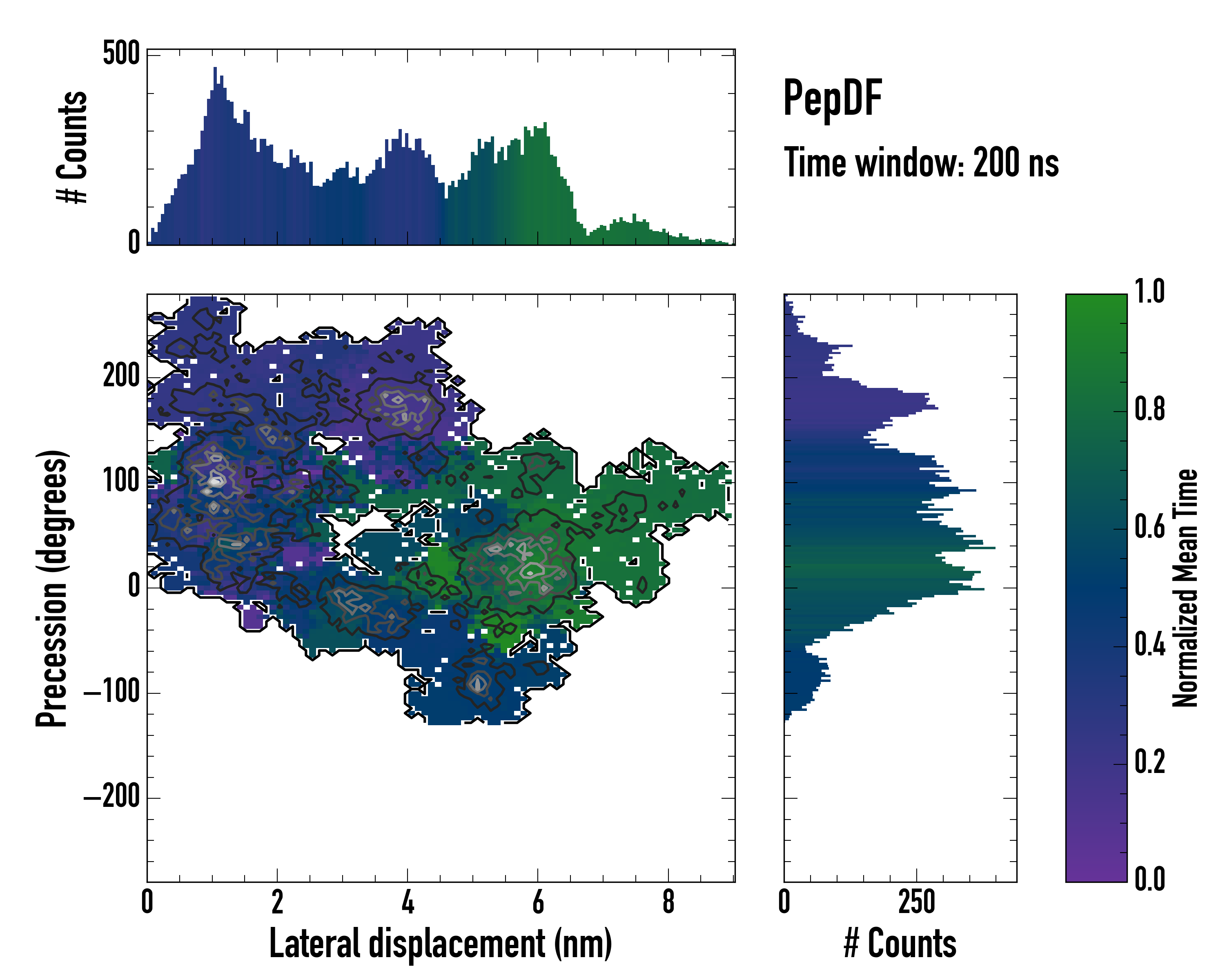

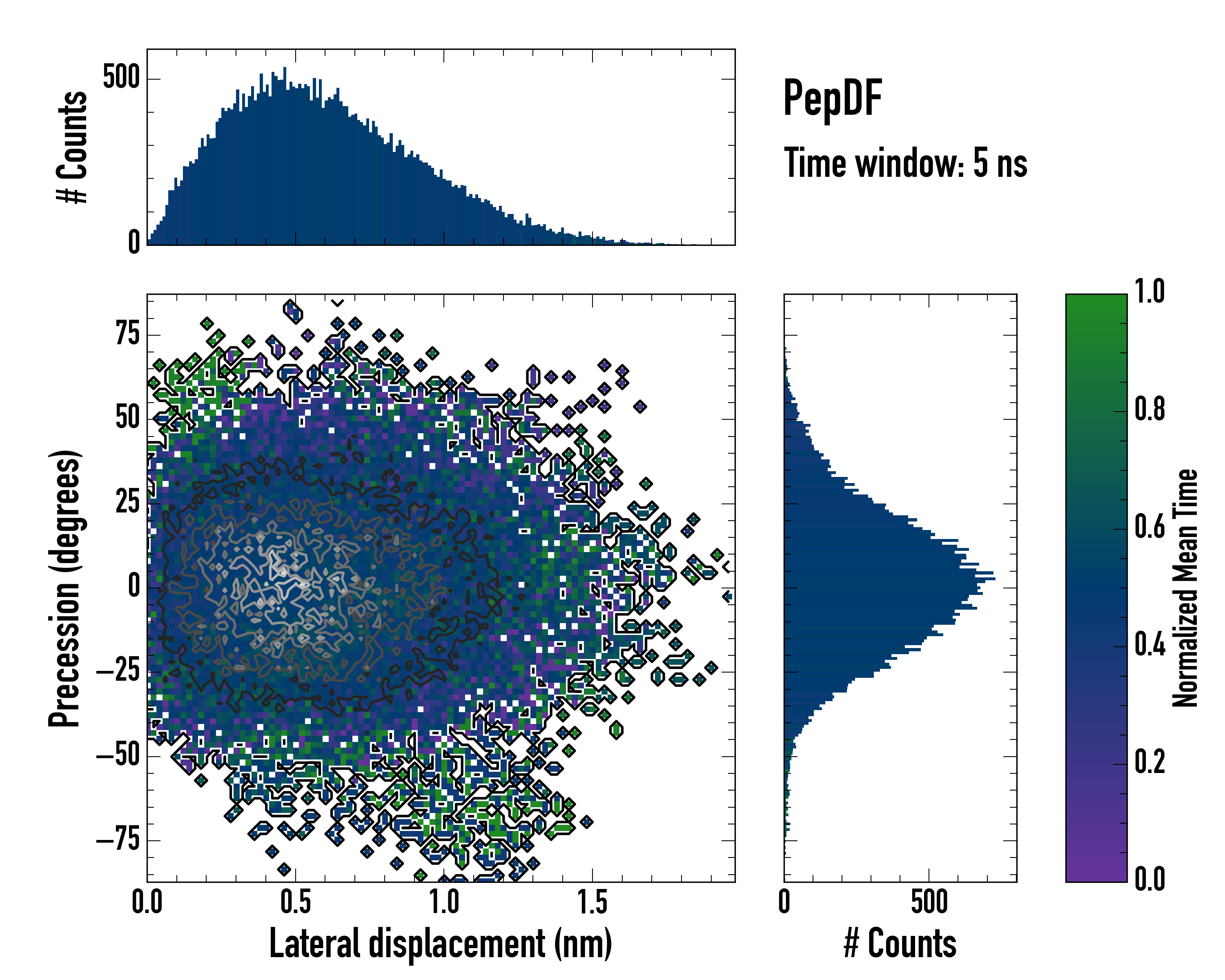

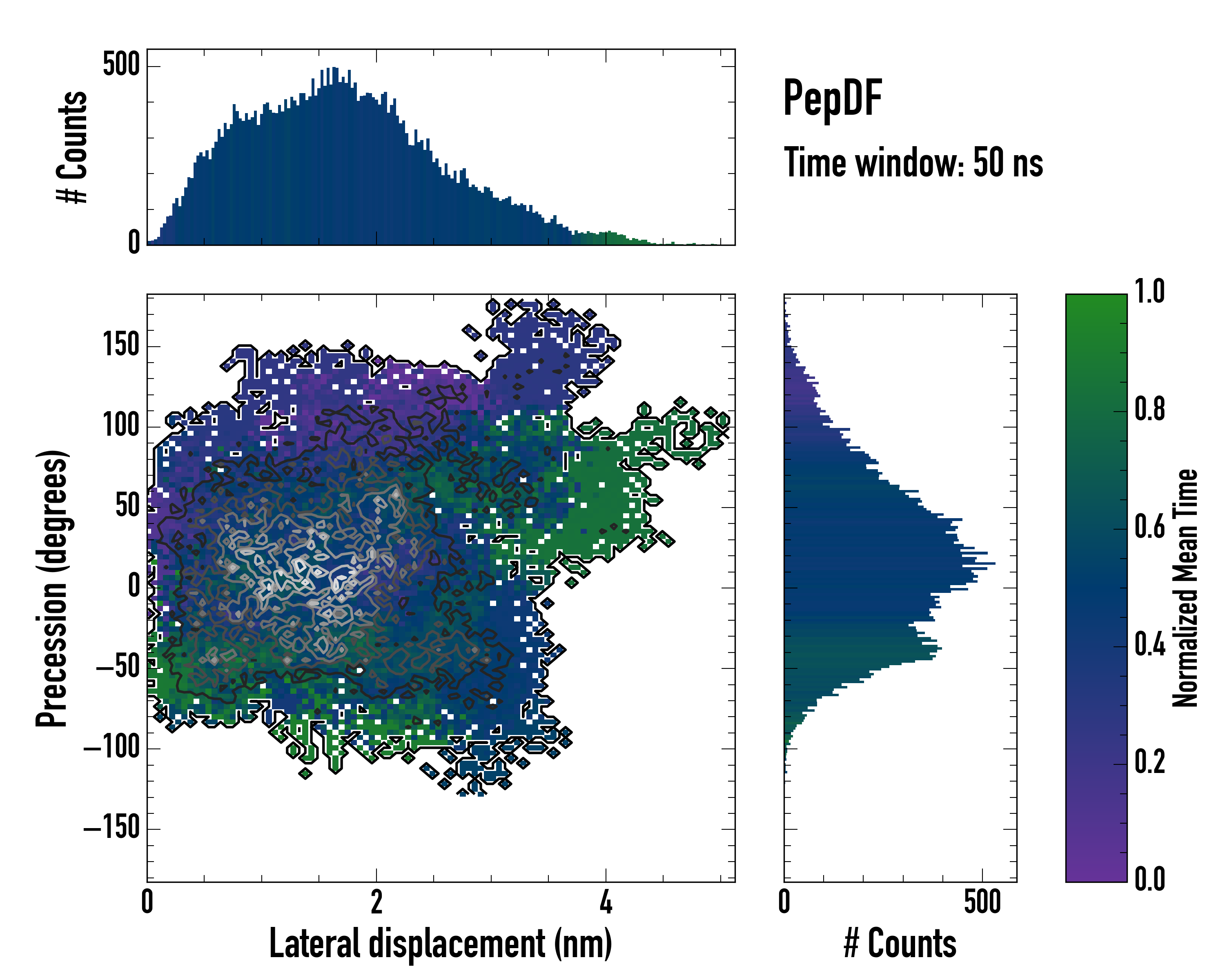

Peptide Displacement Fingerprint (PepDF)
Lateral displacement vs Rotational Displacement along the trajectory, for different time windows .

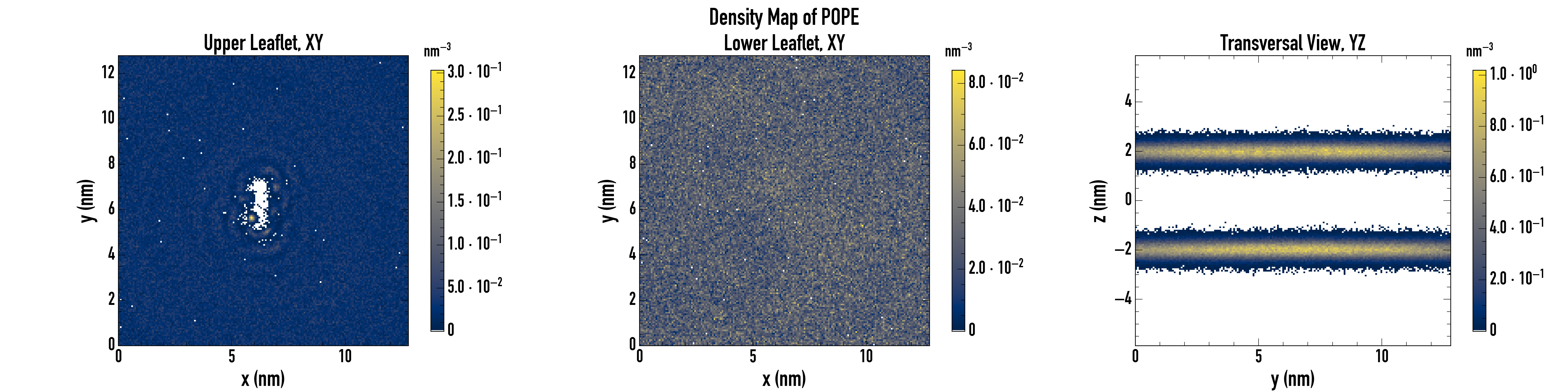

Density maps:
2D-density maps of lipids around the peptide along XY and YZ axis, calculated for each lipid type along the last microsecond.

Lipid-Peptide Analyses:

z-Position
Z-coordinate, averaged for differetn parts of the the system: peptide, membrane, first and last backbone (BB) residues and upper of lower leaflet lipids’ headgroups (HGs).

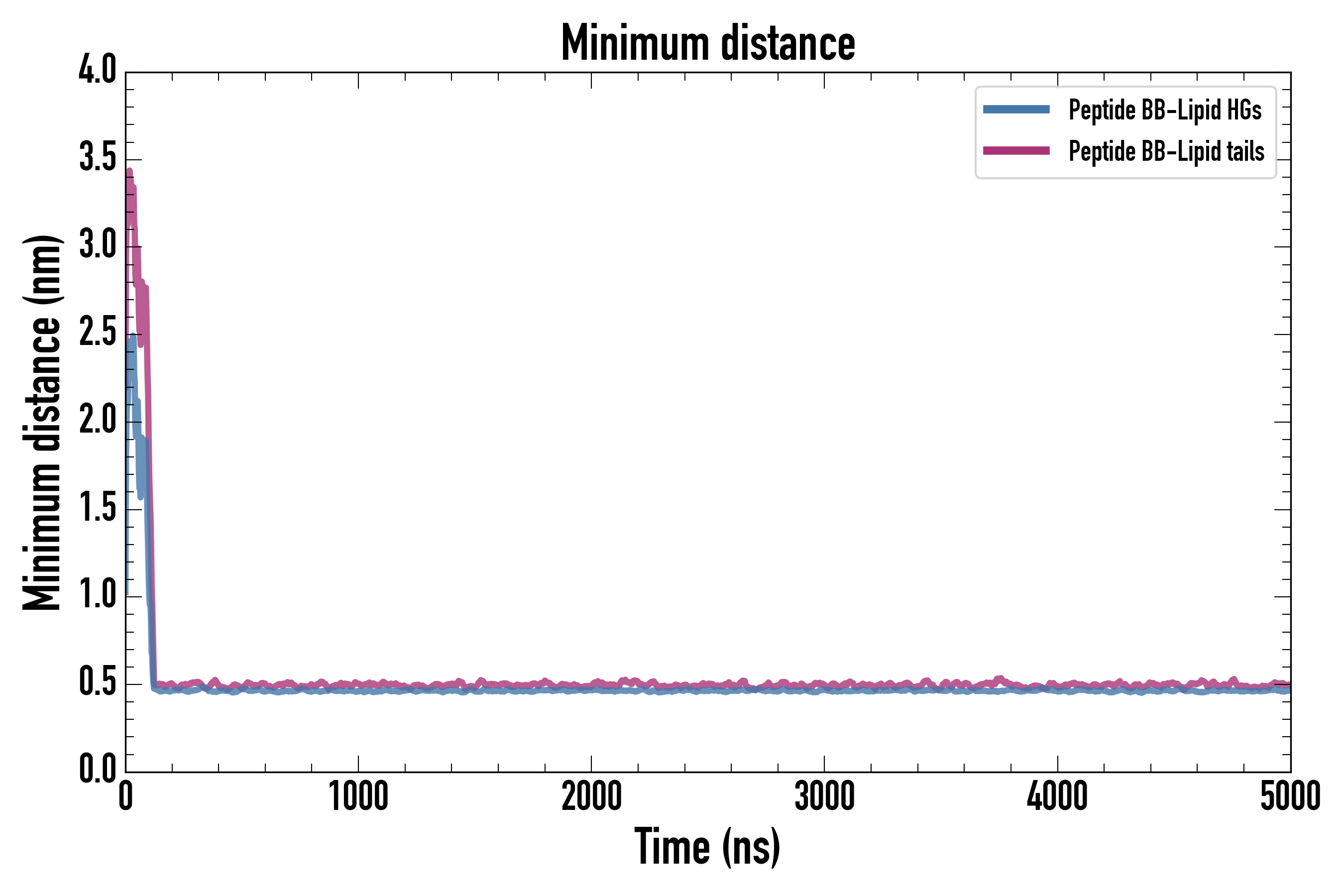

Minimum distance
Minimum distance (nm) between the peptide backbone and the lipids (headgroups and tailgroups).

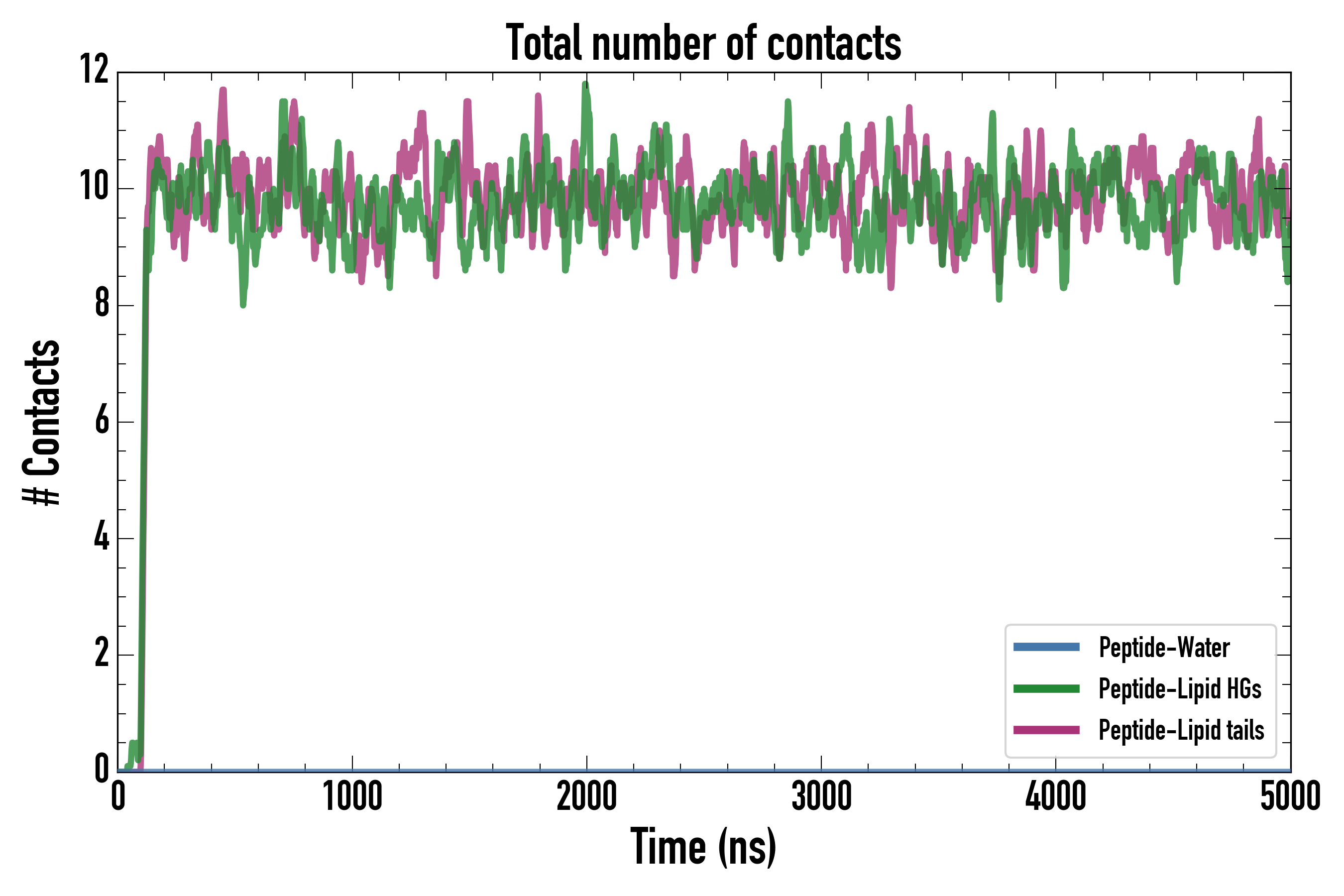

Number of contacts
Number of contacts between the peptide backbone and the water or the lipids separated by lipid headgroups (HG) or lipid tails, using a cut-off of 0.6 nm.

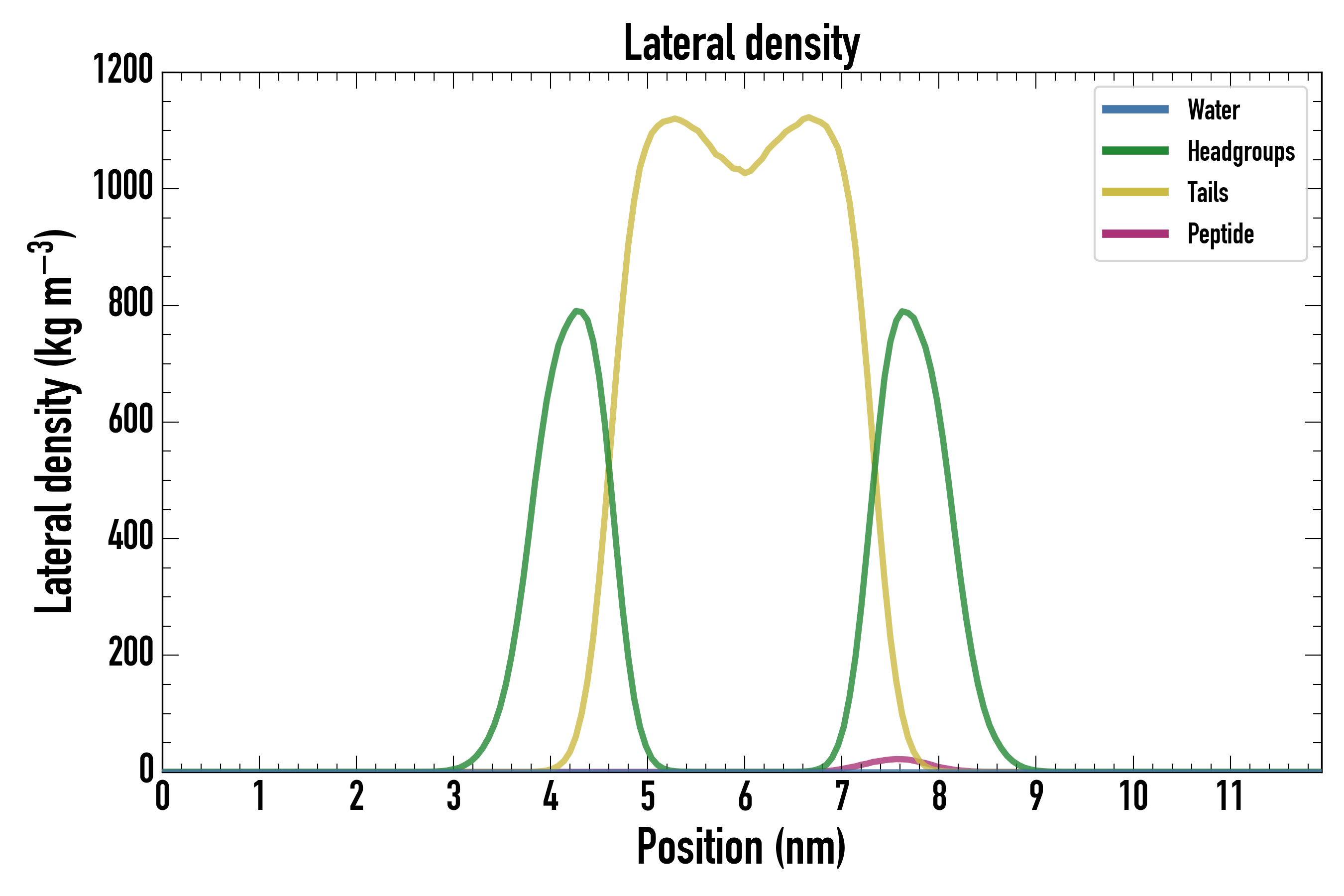

Lateral density
Lateral density for the different components of the system: headgroups, tail groups, peptide and water.
